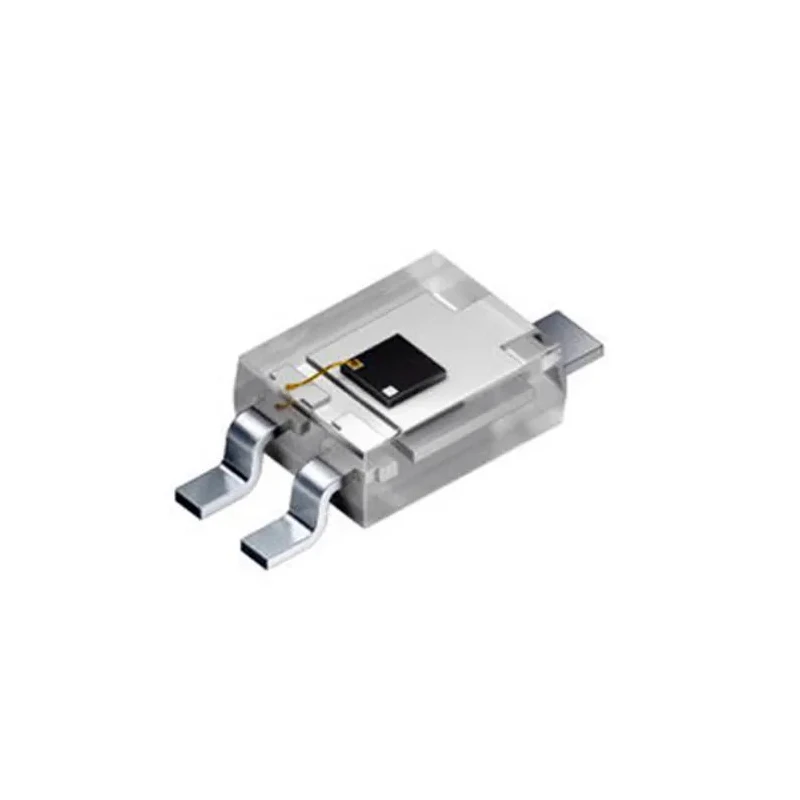

ams OSRAM Smart DIL Phototransistor Visible Light Infrared Ultraviolet 3-Pin DIP 120° Half Sensitivity 20mA SFH 3410-Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 1.05mm |
| Length | 2.1mm |
| Model | SFH 3410-Z |
| Packaging | Tape & Reel |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | Smart DIL |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Automotive Standard | AEC-Q102 |
| Peak Wavelength | 600nm |
| Spectrums Detected | Visible Light, Infrared, Ultraviolet |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 20mA |
| Maximum Light Current | 3.2μA |
| Maximum Dark Current | 3nA |
| Collector Emitter Voltage | 5.5V |
| Emitter Collector Voltage | 0.5V |
Key Features
- The phototransistor operates in the Smart DIL series suitable for ambient light detection and sensor applications.
- It features a maximum collector current of 20mA and a peak wavelength sensitivity at 600nm.
- The device supports surface mount installation with a small footprint of 2.1mm length, 2.7mm width, and 1.05mm height.
- Operating temperature ranges from -40°C to 100°C, suitable for industrial and automotive applications.
- It conforms to RoHS and AEC-Q102 automotive standards ensuring compliance and reliability.
- Maximum collector-emitter voltage is rated at 5.5V with an emitter-collector voltage of 0.5V.
- Comes packaged in tape and reel format facilitating automated assembly processes.
- The phototransistor's low dark current of 3nA and maximum light current of 3.2μA offers high sensitivity for precise light sensing.
Product Description
ams OSRAM SFH 3410-Z phototransistor from the Smart DIL series is a high-sensitivity NPN silicon phototransistor capable of detecting visible light, infrared, and ultraviolet spectrums. This device is designed for use in a wide range of industrial and automotive light sensing applications. With a large 120° angle of half sensitivity, it provides effective ambient light measurement aligned to human eye sensitivity at a peak wavelength of 600nm.
Featuring a compact 3-pin DIP surface mount package, the phototransistor dimensions are 2.1mm in length, 2.7mm in width, and 1.05mm in height, making it suitable for integration into space-constrained electronic systems. The device supports a maximum collector current of 20mA and can operate in temperatures from -40°C to 100°C, providing robust performance in harsh environments.
Designed for both daylight and artificial light sensing, the SFH 3410-Z is ideal for use in ambient light detectors, exposure meters, backlight dimming sensors, and various control and driver circuits. Compliance with RoHS and AEC-Q102 automotive standards ensures high-quality manufacturing and suitability for automotive electronics.
The phototransistor is delivered in tape and reel packaging, optimized for efficient insertion into manufacturing machinery and automated production lines. The phototransistor detects multiple spectrums: visible, infrared, and ultraviolet light for versatile sensing.
Maximum collector emitter voltage of 5.5V and emitter collector voltage of 0.5V support wide application compatibility. Low dark current of 3nA enhances detection accuracy in low light conditions. Compact dimensions and surface mount packaging enable easy integration on PCB designs.
Wide operating temperature range ensures stable performance in diverse industrial environments. Compliance with automotive standard AEC-Q102 allows use in demanding automotive applications. Tape and reel packaging formats support high volume automated manufacturing.
This phototransistor from ams OSRAM is a reliable component for industrial machines, automotive sensors, electronic measuring instruments, and ambient lighting control systems. For further product selections, users can browse the Phototransistor category on EnvMart for complementary components and optoelectronic devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current of this phototransistor is 20mA.
It has a peak wavelength sensitivity at 600nm, making it suitable for detecting visible light.
The phototransistor measures 2.1mm in length, 2.7mm in width, and 1.05mm in height.
It operates within a temperature range of -40°C to 100°C, suitable for various industrial applications.
This model is packaged in tape and reel format, facilitating automated assembly processes.
The maximum collector-emitter voltage is rated at 5.5V, while the emitter-collector voltage is 0.5V.
It conforms to RoHS and AEC-Q102 automotive standards, ensuring compliance and reliability for automotive applications.
The SFH 3410-Z has a low dark current of 3nA, enhancing its sensitivity in low light environments.
This phototransistor can detect visible light, infrared, and ultraviolet spectrums.
This model features a 3-pin configuration, suitable for surface mount installation.
The SFH 3410-Z has an angle of half sensitivity of 120°, which aids in effective ambient light measurement.
It is ideal for use in ambient light detectors, exposure meters, and backlight dimming sensors among other applications.
