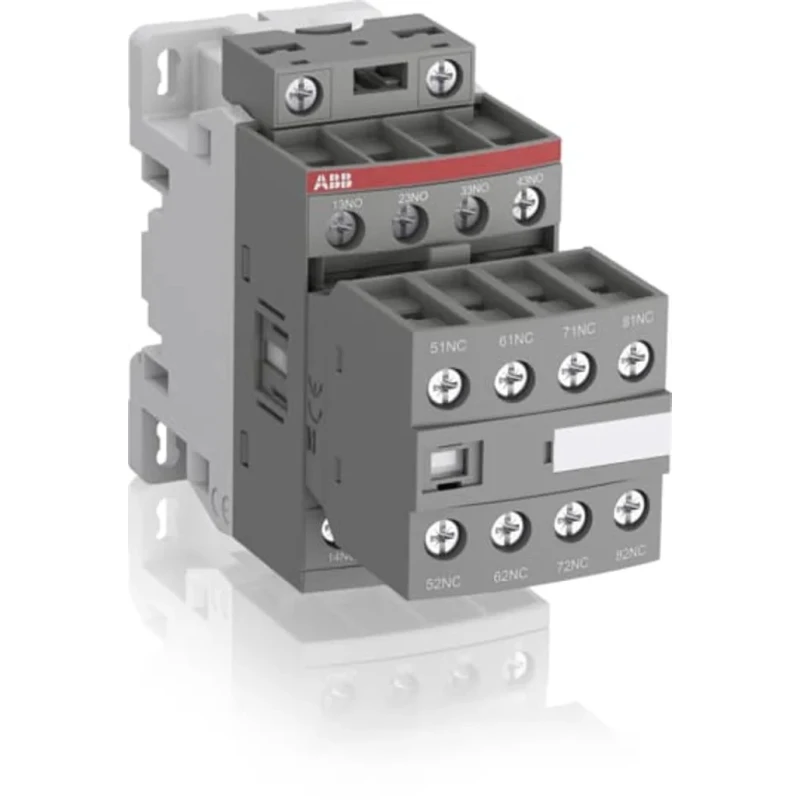

ABB NF Contactor Relay 4-Pole 6A 500V DC Coil, 140W, 8 NO, 690V, DIN Rail Mount 1SBH137001R1480

Free Delivery in India | Lowest Global Shipping Charges

ABB NF Contactor Relay 4-Pole 6A 500V DC Coil, 140W, 8 NO, 690V, DIN Rail Mount 1SBH137001R1480



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Length	110.5mm
Model	1SBH137001R1480
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NF
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Contact Voltage	690V
Coil Voltage	500V dc
Normal State Configuration	8 NO
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	8 NO
Operational Current Ie	6A
Control Circuit Voltage Uc	690V
Pole and Throw Configuration	8

Key Features

Features a robust 500V DC coil for versatile control circuit applications.
Offers 4 main poles with a 6A contact current and 140W power rating.
Includes 8 normally open (NO) auxiliary contacts for enhanced flexibility.
Built for DIN rail mounting with compact dimensions of 110.5mm length and 45mm width.
Operates effectively across a wide temperature range from -40°C to +70°C.
Utilizes screw terminal connections for secure and simple installation.
Certified to UL 508, IEC 60947-5-1, EN 60947-5-1, and CSA C22.2 No. 14 standards.
Ideal for industrial automation, machinery control panels, and auxiliary switching duties.

Product Description

The ABB 1SBH137001R1480 NF Contactor Relay is engineered for auxiliary and control circuit switching in demanding industrial and automation environments. Designed to operate with a robust 500V DC coil voltage, it delivers safe, efficient, and reliable signal switching, supporting a variety of applications that call for high performance and durability.

This contactor relay features a four-pole (4P) main configuration and an impressive eight auxiliary NO (normally open) contacts, offering superior versatility in control panels, machinery, and complex automation systems. The device is equipped to handle contact currents up to 6A and a maximum power rating of 140W at 690V, ensuring stable operation for extensive industrial use.

Features a compact form factor with dimensions suited for DIN rail installation (110.5mm x 45mm), saving valuable space within control panels. The integrated 8 NO contact arrangement supports advanced auxiliary logic, broader circuit management, and flexible connections.

Rated for operational reliability across a wide environmental envelope, from -40°C to +70°C, making it suitable for harsh and varied industrial locations. Accepts control circuit voltages across a broad range (24V to 500V), facilitating global applicability and easy integration.

Screw terminal type ensures secure, robust wiring, while built-in surge protection provides further system longevity and reliability. Certified to major international electrical standards (UL 508, IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No. 14) to guarantee compliance and safety in critical systems.

This relay is the optimal choice for applications in industrial automation, motor control systems, auxiliary switching, building management systems, manufacturing, and process industries. Its wide voltage compatibility, high current handling, and multiple auxiliary contacts make it flexible for bespoke installations and upgrades.

Applications include industrial automation and control, machinery requiring comprehensive auxiliary switching, integration into electrical control panels, and scenarios demanding rapid switching frequency and high insulation voltage. Built for performance and ease of installation, it meets the rigorous needs of engineers and electricians in commercial and industrial settings.
