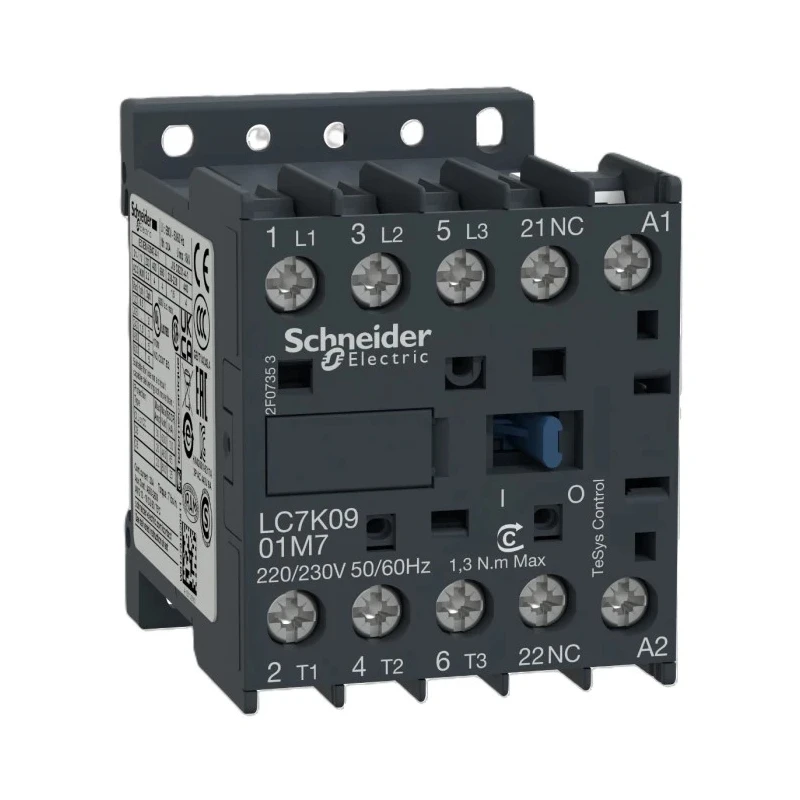

Schneider Electric TeSys K Contactor 220V AC Coil, 3-Pole 20A 4kW 230V 3NO 690V AC LC7K0901M7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC7K0901M7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys K |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 230V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for motor control applications up to 4kW at 230V AC.
- Incorporates 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact.
- Reliable DIN rail mounting for easy installation in control panels.
- Supports a maximum contact voltage of 690V AC and operational current up to 9A AC-3.
- Compact, low-noise design suitable for noise-sensitive and industrial environments.
- Features a built-in surge suppressor and rectifier for coil control.
- Wide operational temperature range from -25°C to 50°C.
Product Description
The Schneider Electric LC7K0901M7 is an advanced TeSys K power contactor engineered for industrial and commercial motor control tasks. It features a 220V AC coil and a robust 3-pole configuration, ensuring efficient power delivery and reliable switching performance. With a 20A rated contact current and 4kW power rating at 230V, this contactor is ideal for managing small to medium-sized motors in a wide range of automation, HVAC, and process control systems.
This device integrates 3 normally open (NO) main contacts and an additional 1 normally closed (NC) auxiliary contact, offering versatile load-switching capability. A built-in surge suppressor and rectifier in the coil section contribute to stable operation even on high-interference mains supplies. The screw terminal connections provide secure wiring and facilitate maintenance procedures in both new installations and retrofit projects.
Designed to meet global standards with certifications including EN, IEC, and UL, supporting compatibility in multinational applications. Engineered with a compact footprint (58mm long, 45mm wide, 57mm deep) for easy DIN rail mounting in crowded switchboards or control enclosures.
Low-noise operation makes this device suitable for installation in areas sensitive to sound, such as laboratories, hospitals, and cleanrooms, as well as general industrial sites. Operational reliability from -25°C up to 50°C, ensuring consistent performance across demanding environmental conditions.
Ideal for use in conveyor systems, pumps, small compressors, ventilators, and general purpose industrial automation circuits. Innovative design incorporates features supporting easy disassembly and future end-of-life recycling.
Compact and durable, the LC7K0901M7 is a preferred solution where panel space is at a premium and consistent, safe motor control is required. Explore more industrial control solutions from Schneider Electric and find matching contactors and relays in the Power Contactors section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC7K0901M7 contactor has a power rating of 4kW at 230V AC.
It supports a maximum contact voltage of 690V AC.
This contactor features a 3-pole configuration.
The operational temperature range is from -25°C to 50°C.
It is designed for DIN rail mounting, facilitating easy installation in control panels.
The rated contact current is 20A.
Yes, it incorporates 1 normally closed (NC) auxiliary contact along with 3 normally open (NO) main contacts.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
It features screw terminal connections for secure wiring.
This contactor complies with EN, IEC, and UL standards.
It is suitable for motor control applications, including use in conveyor systems, pumps, and small compressors.
It is designed for disassembly, supporting future recycling efforts.
