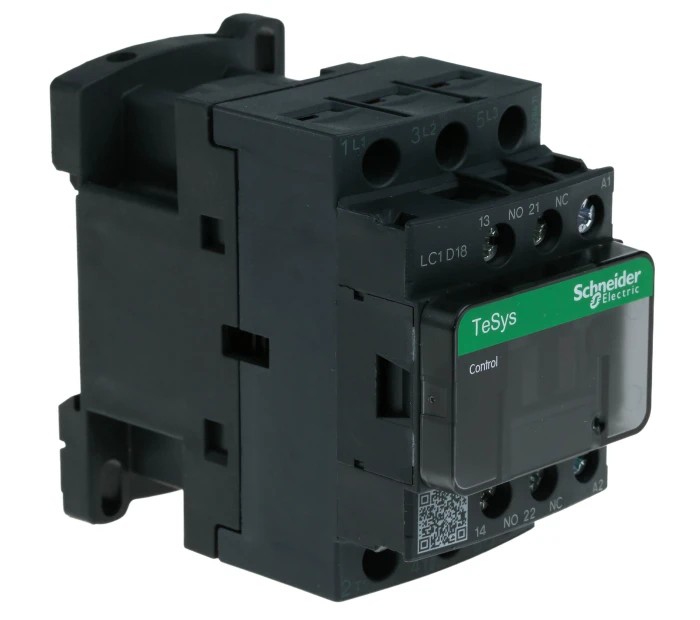

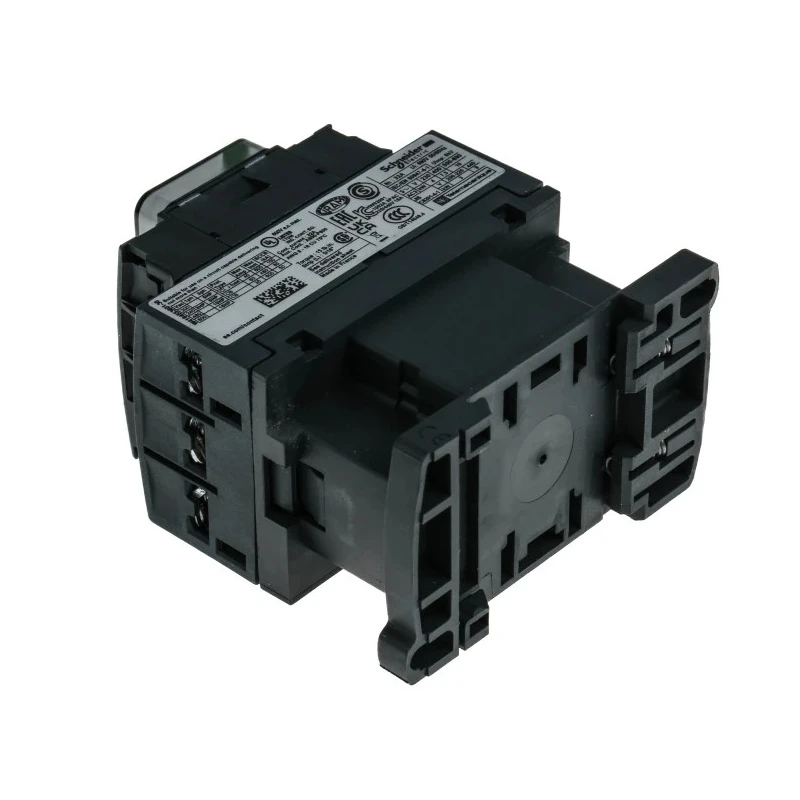

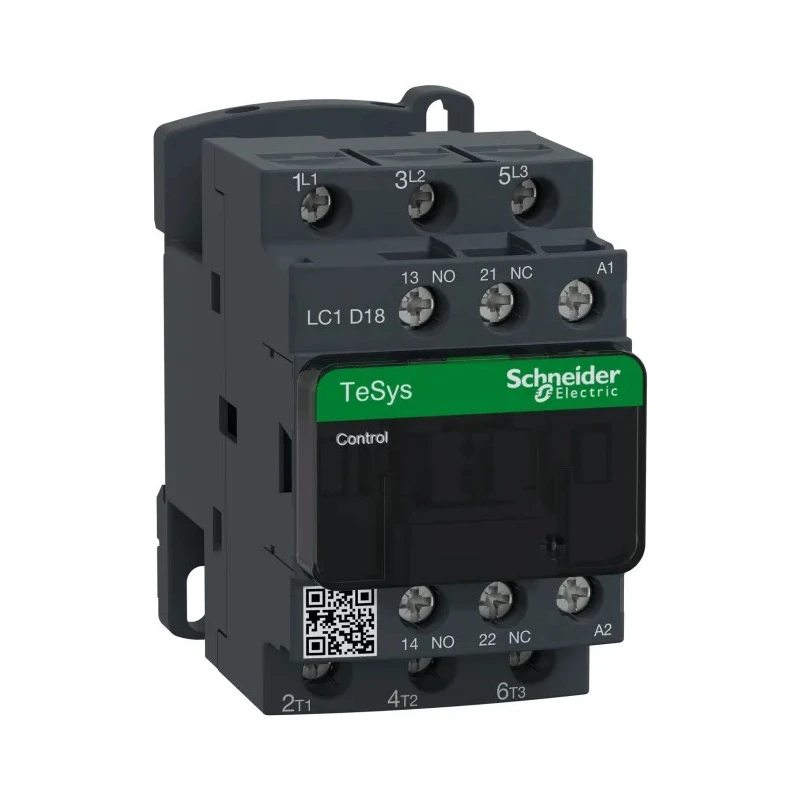

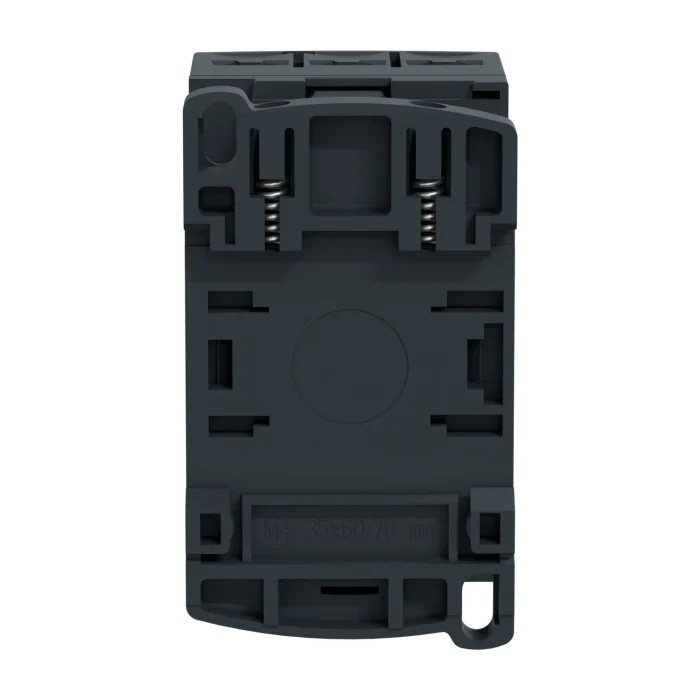

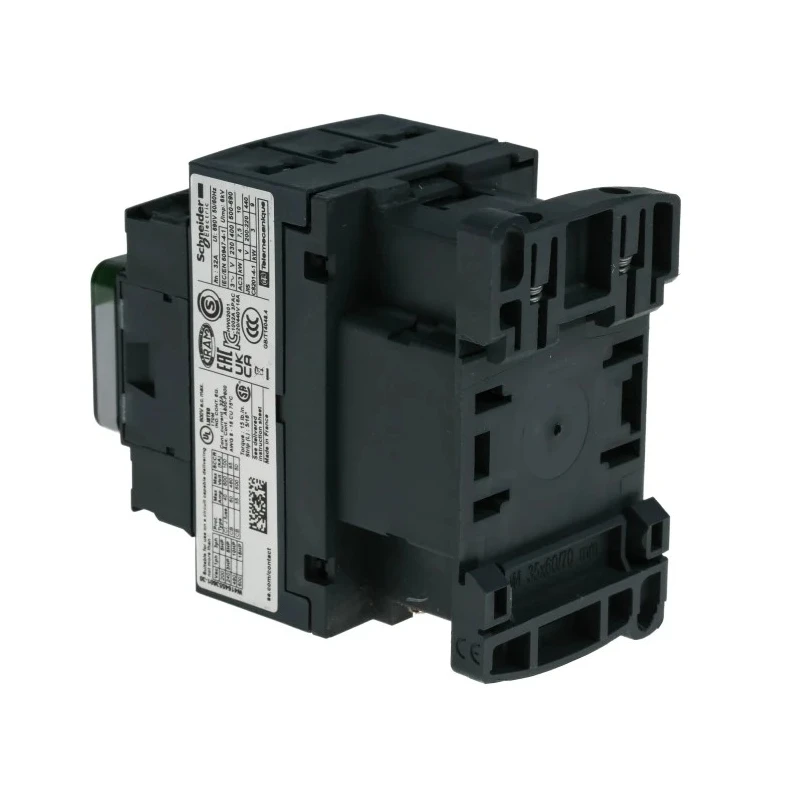

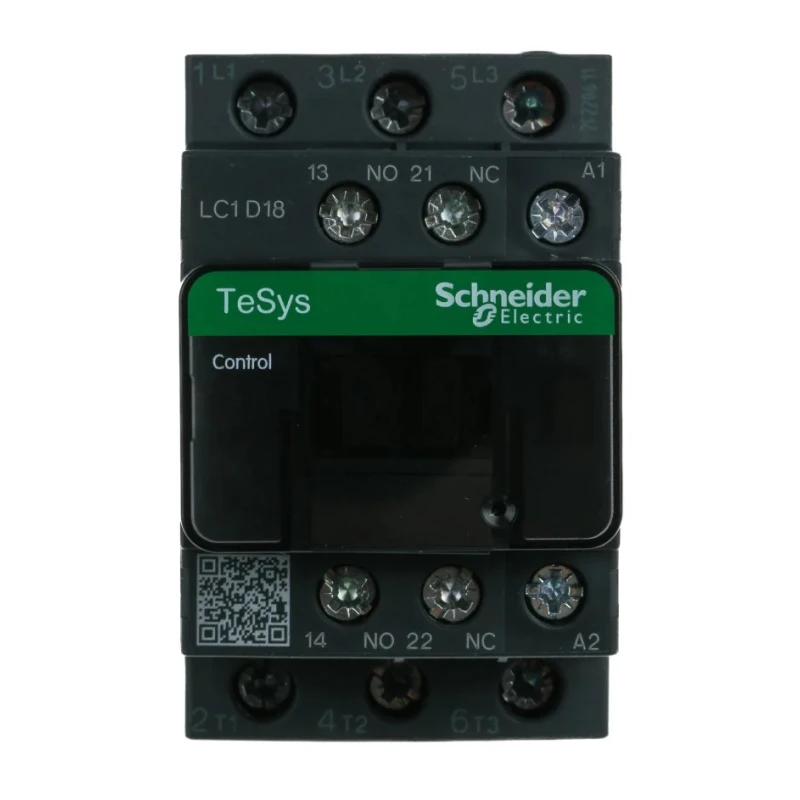

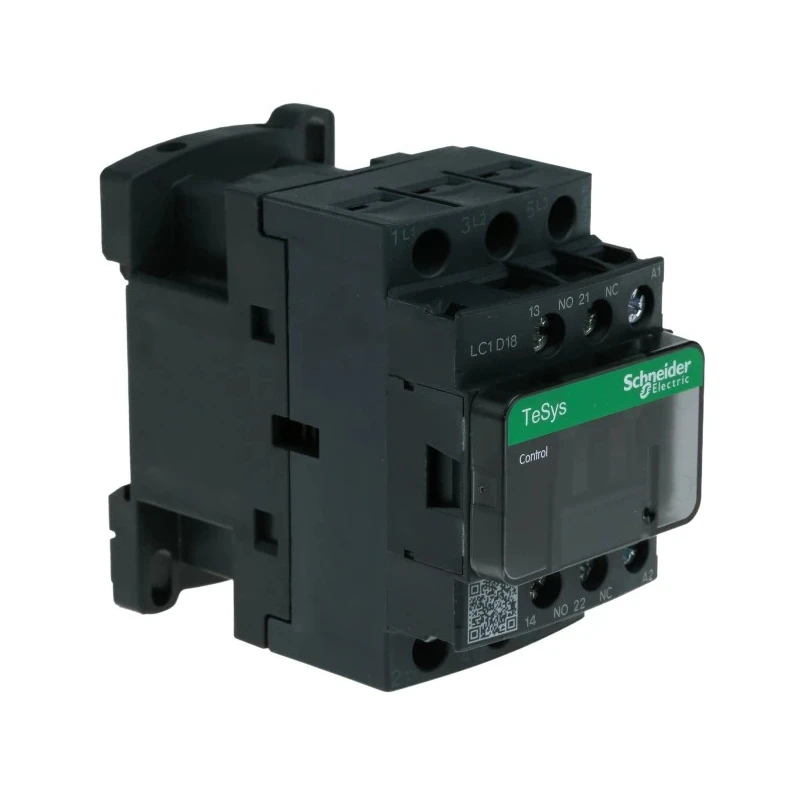

Schneider Electric Contactor, 230V AC Coil Voltage, 3-Pole, 18A Current, 7.5kW Power Rating, 3 NO Contacts, 690V AC LC1D
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| CONTACTOR 9KW 240V COILBrand | Telemecanique |
| WEG CWB Contactor, 24V ac Coil, 3-Pole, 18 A, 7.5 kW 24V ac, 3 NO, 690V acBrand | WEG |
Key Features
- Operates with a 230V AC coil voltage for reliable control functions.
- Equipped with three normally open (3 NO) contacts rated at 18A current.
- Designed for use with contact voltages up to 690V AC, supporting various electrical systems.
- Compact dimensions of 77mm length, 45mm width, and 86mm depth for DIN Rail mounting.
- Includes two auxiliary contacts configured as one normally open and one normally closed for enhanced switching capabilities.
- Can withstand operating temperatures from -40°C to +60°C, suitable for harsh environments.
- Constructed with screw terminal connections for secure and easy wiring.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1D18P7 is a robust 3-pole contactor designed for versatile motor control and resistive load switching with a coil voltage of 230V AC and a contact current rating of 18A. It provides a power rating of 7.5kW and accommodates contact voltages up to 690V AC, making it suitable for diverse industrial and commercial electrical control applications.
The compact contactor measures 77mm in length, 45mm in width, and 86mm in depth, allowing easy installation on DIN Rails, which is the standard mounting method for industrial control panels. It features three normally open (3 NO) contacts and two auxiliary contacts configured as 1 NO (normally open) and 1 NC (normally closed) to expand the control functionality.
This contactor is engineered to operate efficiently within a temperature range from -40°C to +60°C, ensuring reliable performance in harsh environments. The screw terminal connection design simplifies wiring and enhances electrical contact reliability.
It meets stringent international certification standards including CCC, CSA, EAC, IEC, RoHS, and UL, reflecting its quality and compliance with required safety and performance benchmarks.
Typical applications include industrial automation systems, motor switching for three-phase motors, HVAC control systems, conveyor machinery, and various resistive load controls. Its design aligns with sustainable practices by supporting disassembly for recycling.
Operates with a 230V AC coil voltage for reliable control functions. Equipped with three normally open (3 NO) contacts rated at 18A current. Designed for use with contact voltages up to 690V AC, supporting various electrical systems.
Compact dimensions of 77mm length, 45mm width, and 86mm depth for DIN Rail mounting. Includes two auxiliary contacts configured as one normally open and one normally closed for enhanced switching capabilities. Can withstand operating temperatures from -40°C to +60°C, suitable for harsh environments.
Constructed with screw terminal connections for secure and easy wiring. Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL. Ideal for industrial automation, motor control, HVAC systems, conveyor controls, and resistive load applications.
Explore more Schneider Electric contactors and related automation products on EnvMart.
Explore more products in our Power Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 230V AC.
It is designed for use with contact voltages up to 690V AC.
The contactor measures 77mm in length, 45mm in width, and 86mm in depth.
It has a contact current rating of 18A.
This unit is a 3-pole contactor.
It is designed for DIN Rail mounting, which is standard for industrial control panels.
The power rating is 7.5kW.
It can operate efficiently within a temperature range from -40°C to +60°C.
It includes two auxiliary contacts configured as one normally open (1 NO) and one normally closed (1 NC).
It complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Typical applications include industrial automation systems, motor switching for three-phase motors, and HVAC control systems.
It features screw terminal connections for secure and easy wiring.
