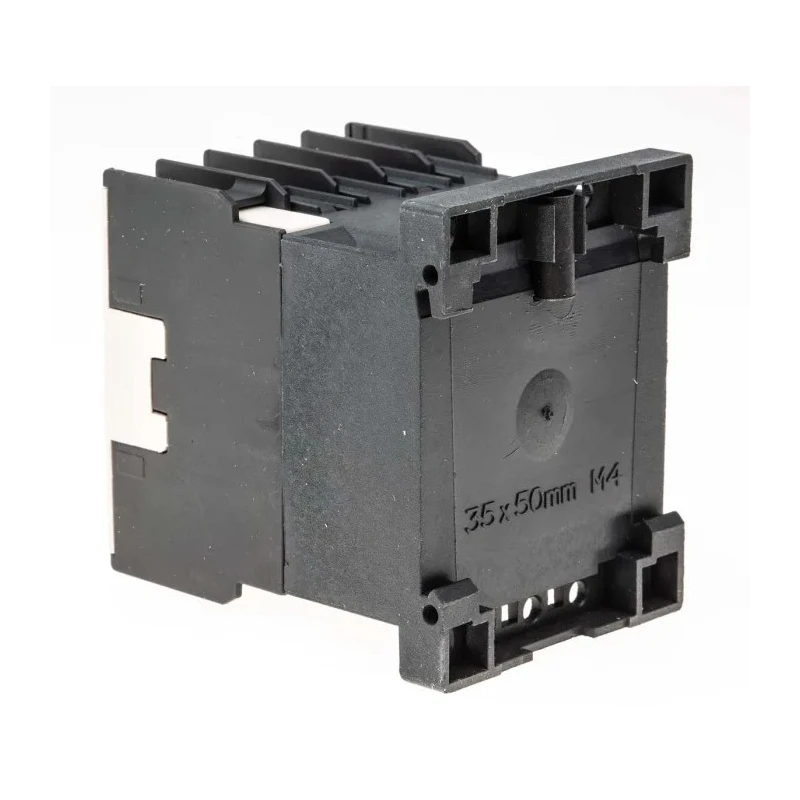

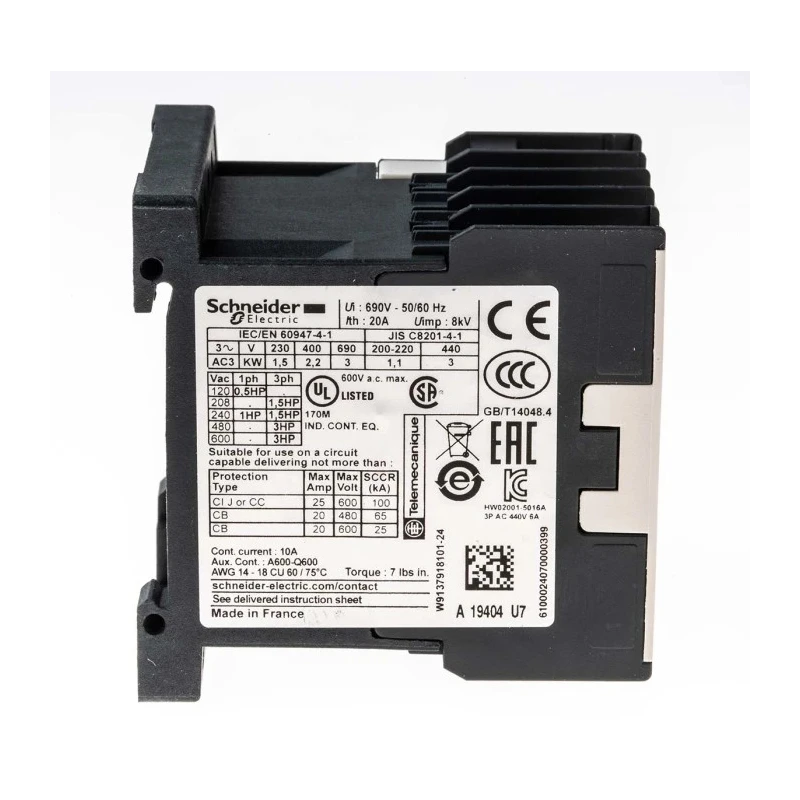

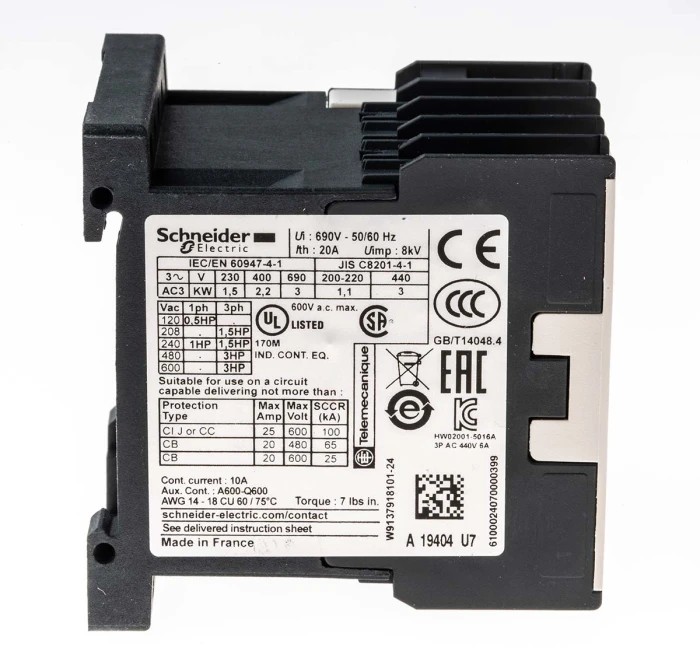

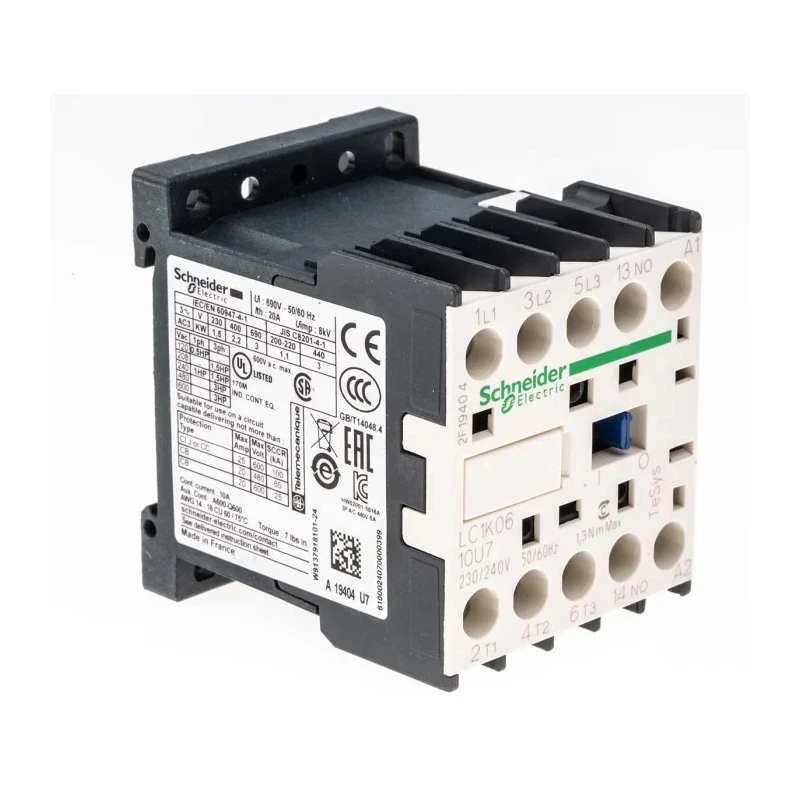

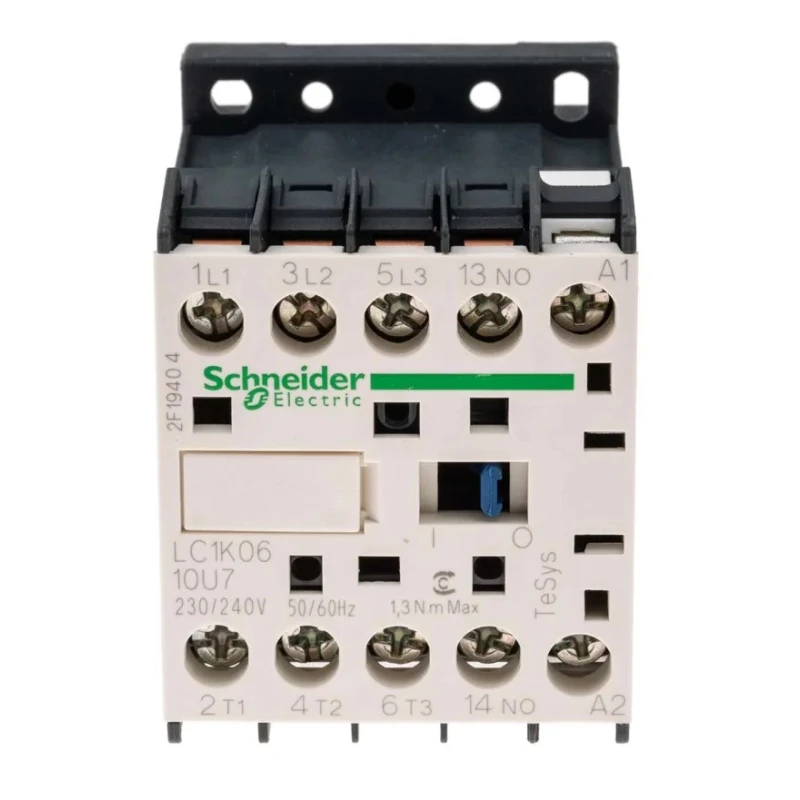

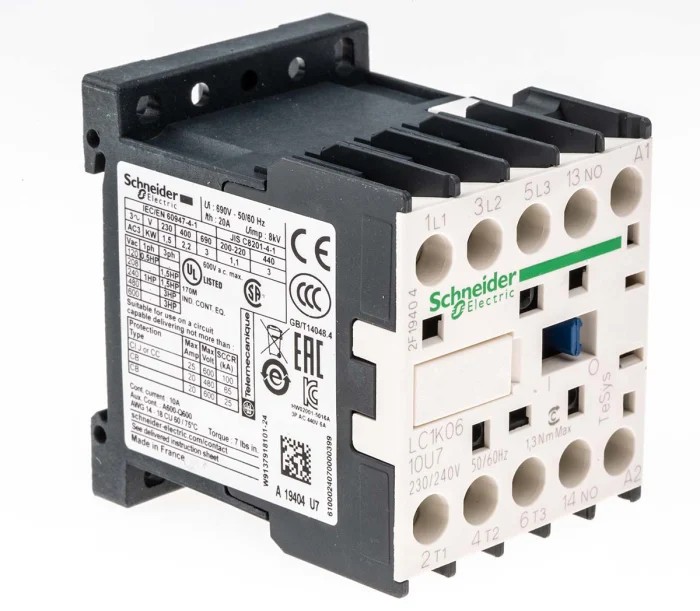

Schneider Electric TeSys K Contactor LC1K0610U7, 3-Pole, 230V AC Coil, 6A, 2.2kW, DIN Rail, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LC1K0610U7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Ingress Protection | IP20 |
| Series | TeSys K |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL, RoHS, EAC, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 6A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Compact 3-pole contactor for versatile industrial motor control.
- Operates with a 230V AC coil voltage for reliable switching.
- Rated at 6A operational current and supports up to 2.2kW power rating.
- DIN rail mounting enables easy installation in control panels.
- Suitable for use in commercial and light industrial environments.
- Ingress protection IP20 enhances safety against dust and accidental contact.
- Includes integrated auxiliary contact for additional functionality.
- Wide operating temperature range from -25°C to +50°C for hot and cold conditions.
Product Description
The Schneider Electric LC1K0610U7 is a TeSys K series compact contactor engineered for industrial, commercial, and automation applications. With a 3-pole configuration, it can efficiently control motor and resistive loads with operational flexibility and safety. The 230V AC coil ensures reliable actuation, while the 6A operational current and 2.2kW power rating make it suitable for a wide range of equipment.
Designed for DIN rail mounting, the LC1K0610U7 contactor offers rapid installation and easy integration in electrical panels and distribution boards. Its robust thermoplastic housing provides excellent impact resistance and electrical insulation, reducing the risk of electric shock and enhancing operator safety.
The integrated auxiliary contact (1 NO) expands the functional versatility of the contactor, enabling control schemes that require additional signal switching. The screw terminal system guarantees firm electrical connections for long-term operation.
Ingress protection rated at IP20 keeps dust and large objects away from conductive parts, limiting exposure and unintentional touch. The device is rated for impulse withstand voltage of 8kV, protecting circuits from sudden surges.
The LC1K0610U7 contactor is suitable for demanding environments with its wide temperature operating range from -25°C to +50°C. Its panel or DIN rail mounting capability and compact dimensions (58mm length, 45mm width, 57mm depth) allow for flexible placement in space-limited enclosures.
Typical applications include escalators, elevators, industrial mixers, and air-conditioning systems, where precise motor control and overload/shock protection are essential. This product's design supports sustainability with features that facilitate disassembly for recycling, aligning with modern green engineering principles.
Compact, high-performance contactor for motor and resistive load switching. 230V AC coil, 3-pole, 6A operational current, 2.2kW power rating. DIN rail and panel mounting compatible. IP20 ingress protection, thermoplastic impact-resistant housing.
Auxiliary contact (1 NO) included; easy screw terminal connectivity. Impulse withstand voltage up to 8kV; operating temperature -25°C to +50°C. Compliant with global safety standards. Explore more contactors and industrial control solutions from Schneider Electric in the EnvMart Relays & Contactors category.
Explore more products in our Power Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 2.2kW.
It has an operational current rating of 6A.
The coil voltage for this contactor is 230V AC.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
It is designed for DIN rail mounting, allowing for easy installation in control panels.
This contactor has an ingress protection rating of IP20, which protects against dust and accidental contact.
The operating temperature range is from -25°C to +50°C.
Yes, it includes one normally open (1 NO) auxiliary contact for additional functionality.
It complies with CSA, IEC, UL, RoHS, EAC, and CCC standards.
It is designed for motor control and resistive loads.
The terminal type is screw, which ensures firm electrical connections.
