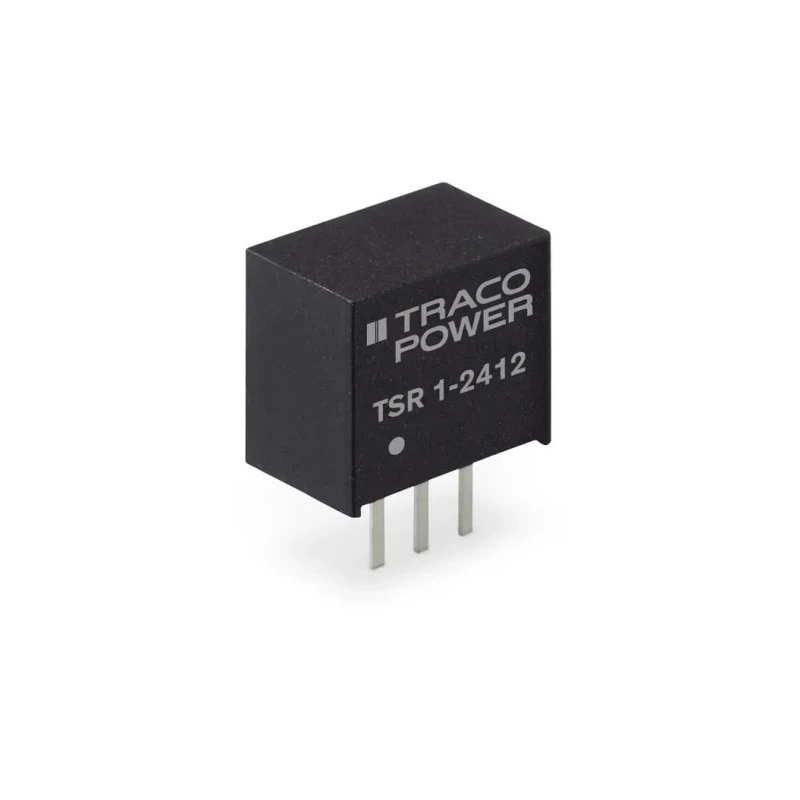

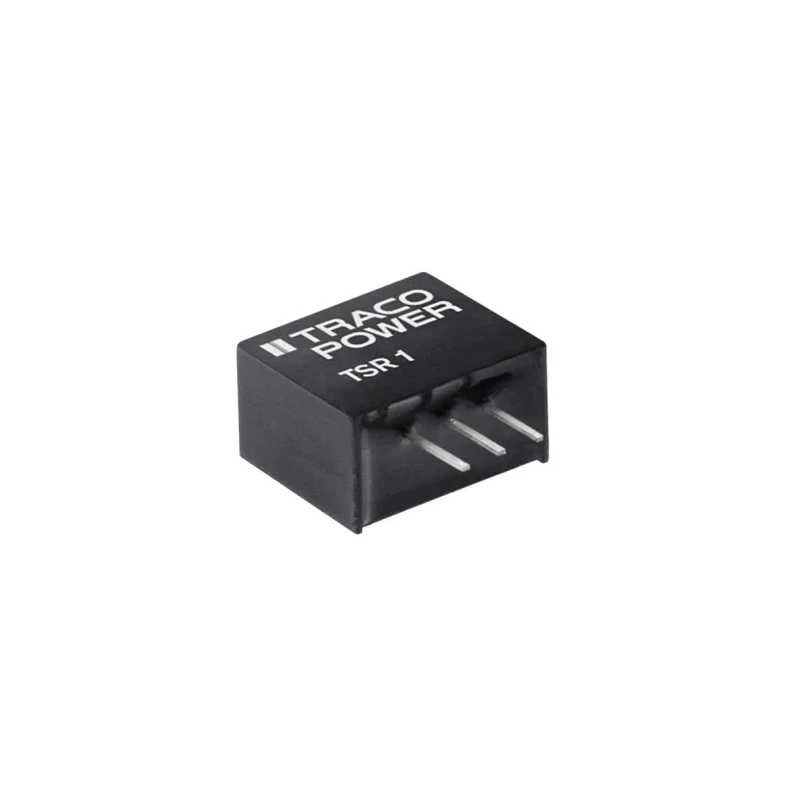

TRACOPOWER Switching Regulator Through Hole SIP-3 Package 12V DC 1A Output Current 12W Power TSR 1-24120

TRACOPOWER TSR 1-24120 Switching Regulator is a high-performance power conversion device delivering a fixed 12V DC output voltage at a 1A output current with a power rating of 12W. Housed in a compact SIP-3 package designed for through-hole mounting, it efficiently regulates voltage for a wide range of electronic applications.

This switching regulator supports input voltages ranging from 15V to 36V DC, making it compatible with various power supply sources. It achieves a high efficiency of 95%, which helps in reducing power loss and heat generation, making it suitable for demanding industrial environments.

With an operating temperature range from -40°C to 85°C, this regulator withstands harsh conditions typically found in industrial, construction, and renewable energy sectors. Its low ripple and noise voltage of 75mV peak-to-peak ensures clean power delivery, minimizing electrical interference in sensitive circuits.

The compact form factor measures 11.7mm in length, 10.2mm in width, and 10.2mm in depth, and the unit weighs only 1.9 grams, making it a space-saving solution for PCB designs. Additional features include line regulation of ±0.2%, load regulation of ±0.4%, and integrated short-circuit protection that automatically resets the device to maintain continuous operation.

With a robust mean time between failure (MTBF) rating of 5,350,000 hours and compliance with CE standards, the TSR 1-24120 is a reliable component for long-term industrial use. Wide input voltage range from 15V to 36V DC enables versatile power supply compatibility.

High efficiency of up to 95% ensures energy-efficient power conversion. Low ripple and noise of 75mV peak-to-peak minimizes electrical interference. Operating temperature range from -40°C to 85°C supports harsh industrial environments.

Compact dimensions and lightweight design optimize PCB space. Integrated short-circuit protection enables automatic recovery. Line and load regulations maintain stable voltage output. High MTBF value ensures long-lasting reliability.

CE certified for quality assurance. Suitable for applications in warehouses, construction, and renewable energy.
