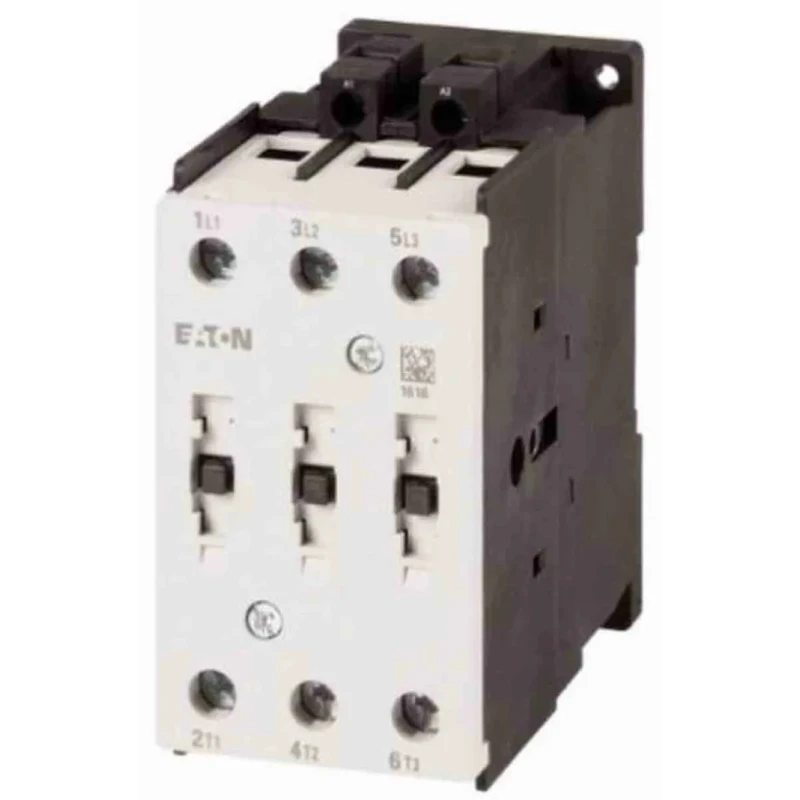

Eaton DILMT Series Contactor, 24V AC Coil, 3-Pole, 80A, 37kW, 690V, DIN Rail Mount, Screw Clamp 197622 DILMT80(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 112mm |
| Model | 197622 DILMT80(24V50/60HZ) |
| Depth | 125mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Series | DILMT |
| Power Rating | 37kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 690V |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 80A |
| Auxiliary Contact Configuration | 0 NO/0 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- Offers reliable switching for industrial motors and resistive loads.
- Features a 24V AC coil for efficient control circuit operation.
- Supports up to 80A contact current and 37kW power rating.
- Equipped with three normally open (3 NO) contacts and DIN rail mount for easy integration.
- Screw clamp terminal type ensures secure electrical connections.
- Designed for operation at up to 690V contact voltage.
- Operational current Ie up to 65A and wide temperature range (-25°C to 55°C).
- Compliant with CSA, IEC, and UL standards for global acceptance.
Product Description
The Eaton DILMT Series Contactor, model 197622 DILMT80(24V50/60HZ), is a robust industrial contactor designed to deliver dependable control for motors and resistive loads in a variety of automation and power distribution environments. Featuring a 24V AC coil, this unit is ideal for integration into standardized control circuitry.
This 3-pole contactor supports a maximum contact current of 80A and a power rating of up to 37kW, making it suitable for heavy-duty motor control and switching applications. Its three normally open (3 NO) contacts provide safe and consistent operation for three-phase motors and large resistive furnace loads. The contactor’s DIN rail mount design allows for convenient installation within electrical panels, while screw clamp terminals offer secure, maintenance-friendly connections.
The DILMT80(24V50/60HZ) model operates at up to 690V contact voltage and delivers an operational current Ie of 65A. Its wide ambient temperature tolerance (from -25°C to 55°C) ensures reliable operation in demanding industrial settings. The 24V AC coil is matched to industrial control voltages as well as modern automation platforms.
Built to meet CSA, IEC, and UL standards, the Eaton DILMT contactor is recognized for its adherence to international safety and performance requirements. The auxiliary contact configuration is 0 NO/0 NC, supporting straightforward integration with wired logic and PLC systems.
Other features include a robust functional life, compatibility with standard DIN rail mounting, and a reliable screw clamp terminal interface. Mechanical details such as a depth of 125mm, length of 112mm, and width of 72mm ensure fitment in a range of enclosure types.
Recommended industrial use cases include Manufacturing Automation, Motor Control Centers, HVAC systems, Power Distribution Panels, Industrial Machine Control, and Commercial Building Automation.
Browse more Eaton contactors and industrial control solutions in the Power Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 80A.
It has a power rating of up to 37kW.
The coil voltage for this unit is 24V AC.
The dimensions of the contactor are 112mm in length, 72mm in width, and 125mm in depth.
The operational current Ie is rated at 65A.
This model is designed to operate at a contact voltage of up to 690V.
It features a screw clamp terminal type for secure electrical connections.
The operating temperature range is from -25°C to 55°C.
This contactor has three poles (3P).
It is compliant with CSA, IEC, and UL standards.
It is suitable for motor control and resistive load applications in industrial settings.
The contact configuration is three normally open (3 NO) contacts.
