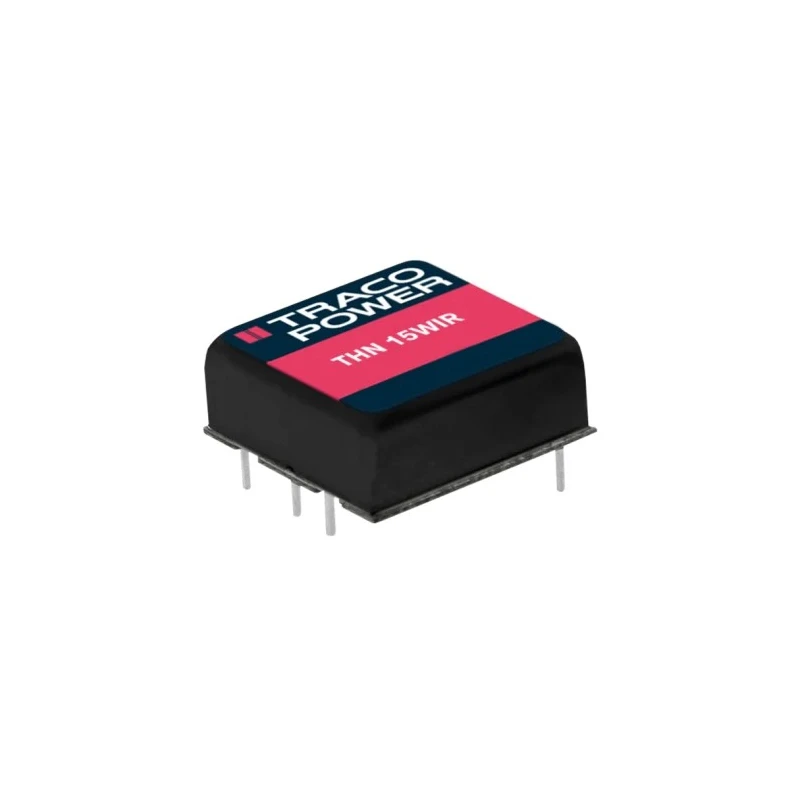

TRACOPOWER DC-DC Converter 15W, 24V DC Output, 315mA, Ultra-Wide Input 18 - 75V DC, PCB Mount, 90°C Max, THN 15-4825WIR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THN 15WIR DC/DC Converter, 24V dc/ 315 |
| Brand | TRACOPOWER |
| Efficiency | 90% |
| Length | 25.4mm |
| Model | THN 15-4825WIR |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | THN 15WIR |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1600000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | EN 50155, EN 61373 |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 315mA |
| Output Voltage Adjustment Range | ±21.6 V dc, ±26.4 V dc |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -24V dc |
| Ultra-wide 4 | 1 input voltage range 9 V dc to 36 V dc, 18 V dc to 75 V dc 36 V dc to 160 V dc |
| Input Ratio4 | 1 |
Key Features
- Provides 15W output power for reliable electronic applications.
- Delivers dual outputs (24V DC and -24V DC) with 315mA output current.
- Compact PCB mount design ensures versatile integration.
- Offers 3kV DC isolation for safe operation in harsh environments.
- High efficiency up to 90% minimizes energy losses.
- Features adjustable output voltages for precise control.
- Operates efficiently between -40°C and 90°C for extended durability.
- Includes built-in EMI filtering, under-voltage lockout, and short circuit protection.
Product Description
TRACOPOWER THN 15-4825WIR is a high-performance DC-DC Converter designed for demanding applications requiring robust power delivery and wide adaptability. With an output power rating of 15W and a 24V DC output at 315mA, this converter offers exceptional efficiency and broad compatibility with various electronic systems.
Its ultra-wide 4:1 input voltage range, spanning from 18V DC to 75V DC, allows it to support diverse input sources and ensures stable operation across railway, industrial, transportation, and mobile instrumentation contexts. The converter provides dual outputs: 24V DC and -24V DC at 315mA maximum current, with fully adjustable output voltage ranges, enabling fine-tuned system control.
The unit features compact PCB mount integration (measuring 25.4mm x 25.4mm x 9.9mm), facilitating streamlined board layouts and minimizing footprint in sophisticated electronics. Exceptional isolation is provided with a 3kV DC barrier, protecting both system and maintenance personnel in environments exposed to electromagnetic interference, shock, or vibration.
Efficiency is maximized up to 90%, aided by built-in EMI filters, input under-voltage lockout, and short circuit protection circuits, ensuring consistent and safe operation. The converter is approved to EN 50155 and EN 61373 standards, qualifying it for railway and transportation systems with heightened resistance to harsh environmental factors.
Operational resilience is guaranteed with a temperature window from -40°C up to 90°C, supporting deployment in extreme climates. The unit's MTBF of 1,600,000 hours underscores long-term reliability, while adjustable output voltages and remote on/off capabilities further boost flexibility in dynamic applications.
Use cases extend across industrial electronics, railway rolling stock, transportation systems, mobile instrumentation, and any application where EMC, shock, and vibration resistance are critical.
Explore DC Converter solutions in the Electronics & Electricals category and browse more from TRACOPOWER to find industry-leading power management devices for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output power of 15W.
It features an ultra-wide input voltage range of 18V DC to 75V DC.
The converter delivers dual outputs of 24V DC and -24V DC.
It has an efficiency rating of up to 90%, minimizing energy losses during operation.
The dimensions of this model are 25.4mm x 25.4mm x 9.9mm.
The maximum operating temperature is 90°C.
It is approved to EN 50155 and EN 61373 standards, suitable for railway and transportation applications.
The isolation voltage is 3kV DC, ensuring safe operation in harsh environments.
The minimum operating temperature is -40°C, allowing for use in extreme conditions.
This model provides two outputs: 24V DC and -24V DC.
The mean time between failures (MTBF) is 1,600,000 hours, indicating long-term reliability.
Yes, it includes built-in EMI filtering, under-voltage lockout, and short circuit protection for safe operation.
