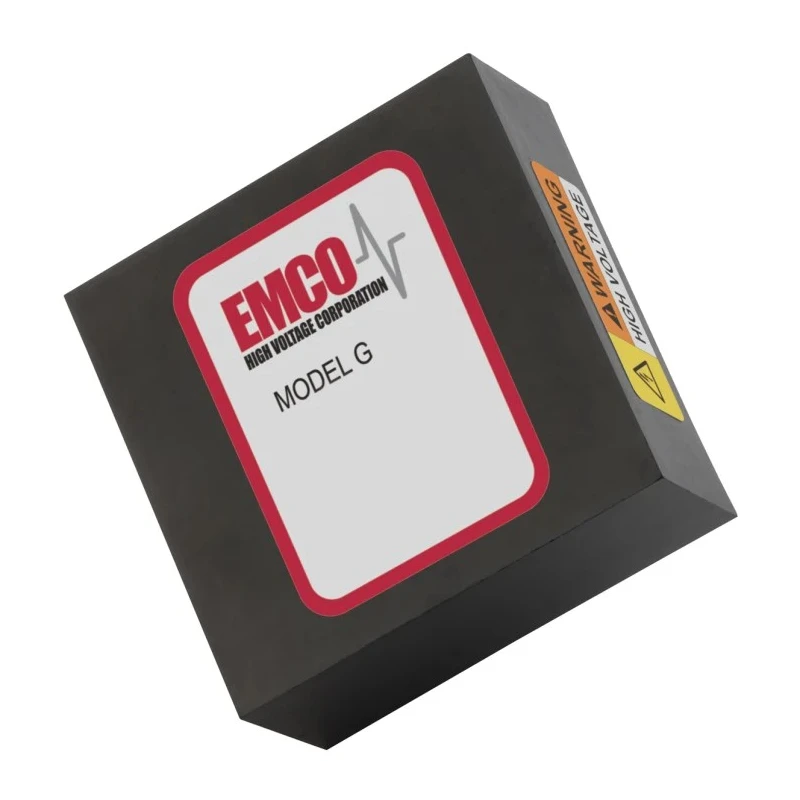

XP Power DC-DC Converter 1kV 1.5mA 12V DC Input Through Hole 1.5W G10
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power G DC/DC Converter, 1kV/ 1 |
| Brand | XP Power |
| Length | 38.1mm |
| Model | G10 |
| Depth | 16mm |
| Gross Weight | 43g |
| Width | 38.1mm |
| Mount Type | Through Hole |
| Series | G |
| Maximum Operating Temperature | 60°C |
| Package Type | ComPacT |
| Minimum Operating Temperature | -10°C |
| MTBF | 2290000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.1% |
| Maximum Output Power | 1.5W |
| Maximum Input Voltage | 12V dc |
| Output Voltage 1 | 1kV |
| Output Current 1 | 1.5mA |
| Isolation Voltage | 3.5kV |
Key Features
- Provides output voltage of 1kV with 1.5mA current capacity.
- Accepts 12V DC input and is suitable for PCB mounting with through hole configuration.
- Output power rating of 1.5W makes it ideal for demanding compact applications.
- Ensures safety with input-output isolation of 3.5kV and low leakage current design.
- Operates reliably in temperatures from -10°C to 60°C.
- Features low ripple and noise output (
- Engineered for industrial, laboratory, and instrumentation use cases.
Product Description
The XP Power G10 DC-DC Converter is a high voltage, isolated power supply module designed for applications requiring compact size, reliable performance, and robust electrical isolation. Featuring a maximum output of 1kV at 1.5mA, this converter delivers up to 1.5W of power from a standard 12V DC input. Its through hole mount and compact PCB package allow for easy integration into demanding layouts with space constraints.
This converter utilizes advanced isolation technology, providing 3.5kV isolation voltage, ensuring safe and efficient power transformation across isolated circuits. The unit operates efficiently across a wide ambient temperature range from -10°C to 60°C, making it suitable for industrial and laboratory environments. Thanks to its low leakage current and a ripple/noise output of just 0.1%, the G10 is particularly well-suited for sensitive applications such as photomultiplier tubes, lamp ignition, piezo devices, vacuum gauges, and capacitor charging circuits.
In operation, the converter delivers steady performance over a long lifespan, demonstrated by an MTBF of 2,290,000 hours. With a single output channel, it simplifies power architecture in electronic designs where high-voltage DC is needed. The robust ComPacT package with dimensions of 38.1mm by 38.1mm by 16mm and weight of only 43g make it efficient for high-density circuit assembly.
The module offers additional safeguarding features such as short circuit protection, proportional input/output behavior, and no minimum load requirement. It supports precise and low-noise voltage delivery, making it valuable in analytical, scientific, test, and measurement equipment. Its PCB-mount, through-hole configuration further broadens its engineering adaptability in power electronics projects.
Typical use cases for the XP Power G10 DC-DC Converter include high voltage bias supply in laboratory instrumentation, industrial controls, capacitor charging, vacuum and ion gauges, and scientific instrumentation. The converter's proven reliability and protection features support long-term operation in demanding applications.
Explore more high-reliability and compact DC-DC Converters in the XP Power G Series and related top-quality industrial power solutions across EnvMart's Electronics & Electricals categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 1kV.
It requires a maximum input voltage of 12V DC.
The output current capacity is 1.5mA.
The output power rating is 1.5W.
The dimensions are 38.1mm in length, 38.1mm in width, and 16mm in depth.
It provides an isolation voltage of 3.5kV.
It operates reliably in temperatures ranging from -10°C to 60°C.
This model supports through hole mounting.
The ripple and noise output is specified at 0.1%.
It is suitable for applications such as laboratory instrumentation, industrial controls, and capacitor charging.
It includes short circuit protection and operates with low leakage current.
The mean time between failures (MTBF) is 2,290,000 hours.
