Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Cat3 Unshielded Straight 1 Port 6 Way RJ11

Free Delivery in India | Lowest Global Shipping Charges

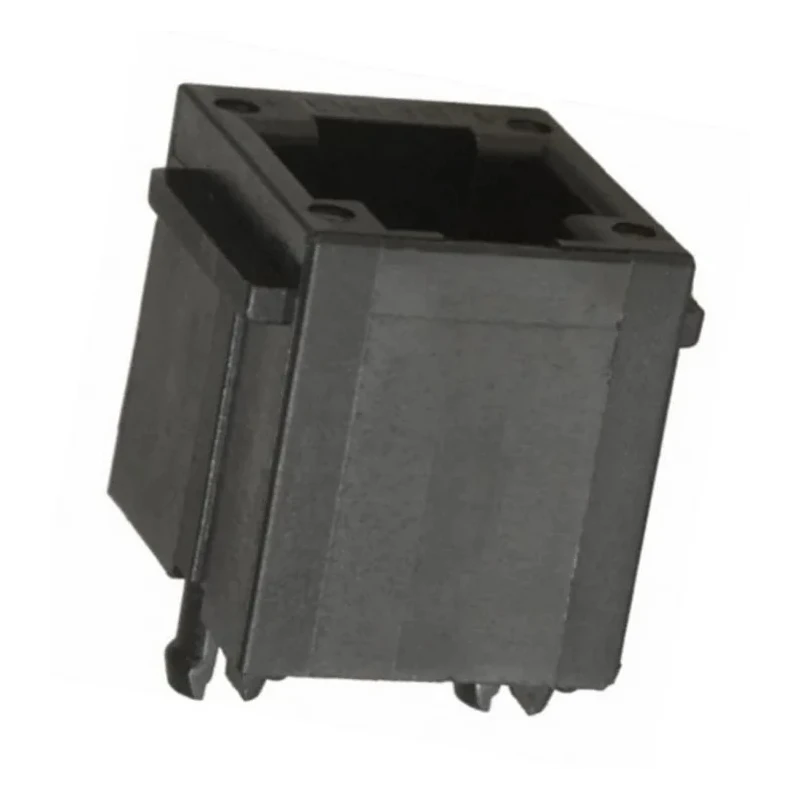

Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Cat3 Unshielded Straight 1 Port 6 Way RJ11

Name: Amphenol ICC MOD JACK Series RJ11 Connector Female PCB Cat3 Unshielded Straight 1 Port 6 Way RJ11
Brand: Amphenol ICC
SKU: 208158
Price: 1.34 USD
Availability: InStock



Category Connector Brand Amphenol ICC Condition New

Specifications

Country of Origin	India
Brand	Amphenol ICC
Orientation	Straight
Length	15.75mm
Model	RJ11
Depth	15.62mm
Connector Type	Modular Jack
Number Of Ways	6
Width	11.94mm
Mount Type	PCB
Contact Material	Copper Alloy
Series	MOD JACK
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-65°C
Shield Type	Unshielded
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat3
Ethernet Connector Type	RJ11

Key Features

Supports Category 3 LAN for low-speed communication.
Features a single port with six-way connections for versatile use.
Unshielded modular jack with a straight orientation for easy installation.
Constructed with copper alloy contacts plated with gold over nickel for enhanced conductivity.
Designed to operate between -65°C and 125°C for durability in various environments.
Mount type is PCB with solder termination for reliable attachment.
Compact dimensions with length 15.75mm, width 11.94mm, and depth 15.62mm.
Compatible with Cat 3 applications such as telephony, modems, and POS terminals.

Product Description

Amphenol ICC RJ11 Connector Female PCB Cat3 Unshielded Straight 1 Port 6 Way is a precision component engineered for secure network connections on printed circuit boards. Featuring a modular jack design, this connector supports Category 3 LAN applications delivering transmission rates up to 16 Mbps suitable for telecommunication and data communication needs.

This connector includes one port with six connection ways, female gender fitment, and an unshielded, straight orientation ideal for streamlined PCB designs. Its copper alloy contacts are plated with gold over nickel to ensure durability, corrosion resistance, and excellent signal integrity under varied environmental conditions.

It is designed to operate effectively across a broad temperature range from -65°C to 125°C, making it suitable for industrial, communication, security, and retail point-of-sale applications. The through-hole mount type with solder termination and PCB board locks assures sturdy mechanical stability during soldering and service life.

The compact dimensions (Length: 15.75 mm, Width: 11.94 mm, Depth: 15.62 mm) facilitate easy integration in space-constrained PCB layouts while offering robust performance. The MOD JACK series includes modular connectors that are stackable side-by-side for PCB space efficiency and ease of installation.

This RJ11 connector is widely used in low-speed networking applications such as telephone systems, modems, point of sale terminals, security systems, set-top boxes, ATM devices, and other telecom interfaces. Its unshielded design suits applications where electromagnetic interference is minimal or controlled.

Supports Category 3 LAN with up to 16 Mbps data transmission. One port with six ways for flexible connectivity on PCB. Female modular jack, unshielded, and straight orientation. Copper alloy contacts plated with gold over nickel for durability.

Operates from -65°C to 125°C for industrial reliability. Solder termination with PCB board locks enhances mounting security. Compact size for efficient PCB layout integration. Side-by-side stackable for PCB space saving and easy installation.

Suitable for telephone, modem, POS terminals, security, and networking use cases. Explore more network Connector solutions and accessories in the Electronics & Electricals category through EnvMart for advanced connectivity needs.
