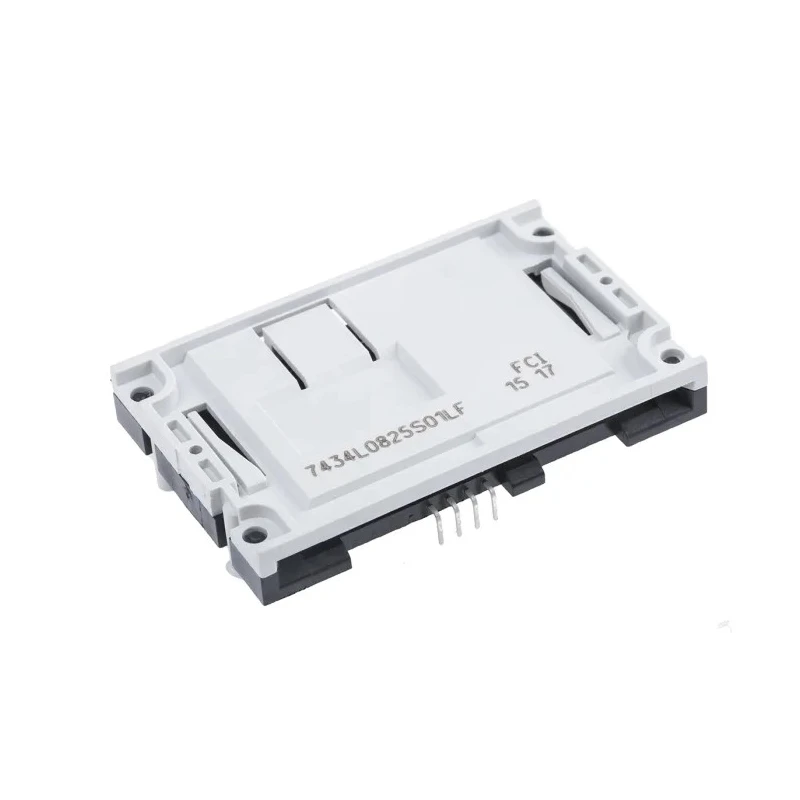

Amphenol ICC 8 Way Right Angle Smart Card Memory Card Connector, Solder 7434L0825S01LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol ICC 8 Way Right Angle Smart Card Memory Card Connector, Solder 7434L0825S01LF

Name: Amphenol ICC 8 Way Right Angle Smart Card Memory Card Connector, Solder 7434L0825S01LF
Brand: Amphenol ICC
SKU: 196575
Price: 8.62 USD
Availability: InStock



Category Memory Card Connector Brand Amphenol ICC Condition New

Specifications

Country of Origin	India
Brand	Amphenol ICC
Orientation	Right Angle
Model	7434L0825S01LF
Gender	Male
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin Lead Alloy over Nickel
Number of Contacts	8
Card Type	Smart Card
Standard height smart card connectorBrand	FCI

Key Features

Constructed with thermoplastic housing and copper alloy contacts.
Contacts are tin lead alloy plated over nickel for durability.
Designed with 8 contacts arranged in 2 rows with 2.54mm pitch.
Suitable for operating temperatures ranging from -40°C to 85°C.
Includes protected contacts with spoon-shaped profiles to prevent damage.
Equipped with a sealed normally open mechanical card detection switch.
Compact low profile design ideal for space constrained applications.
Ensures a long operational life rated for 100000 operations.

Product Description

Amphenol ICC 7434L0825S01LF is a high-quality 8 way right angle smart card Memory Card Connector designed for reliable electronic connections in computing and industrial applications. The connector employs a through hole mount type with solder termination, ensuring strong mechanical and electrical bonding on printed circuit boards.

The housing material is durable thermoplastic which offers insulation and protection for internal components. Contacts are crafted from copper alloy and feature tin lead alloy plating over nickel, providing excellent conductivity and corrosion resistance.

The connector is designed with 8 male contacts organized in two rows with a standard 2.54mm pitch, accommodating common smart card layouts. This model supports an operating temperature range from -40°C up to 85°C, making it suitable for a wide range of industrial and environmental conditions.

Additional features include protected contacts with a spoon-shaped profile set in a closed frame to guard against mechanical damage, and a sealed normally open mechanical card detection switch to ensure operational reliability during card insertion and removal.

The low profile and standard height type design fits within compact assemblies where space constraints exist. The connector offers a long working life rated for 100000 insertions and removals, assuring durability in commercial, laboratory, and industrial equipment including memory card readers and embedded systems.

Thermoplastic housing provides insulating durability. Copper alloy contacts plated with tin lead alloy over nickel for enhanced conductivity. Right angle orientation with 8 contacts and 2 rows at 2.54mm pitch. Operation temperature range from -40°C to 85°C for versatile environments.

Protected contacts and mechanical card detection switch improve performance and reliability.

This Amphenol ICC smart card connector is suitable for precision electronic components, factory automation systems, and computing devices requiring secure smart card interfacing. Available for immediate inclusion in industrial connector assemblies through EnvMart.
