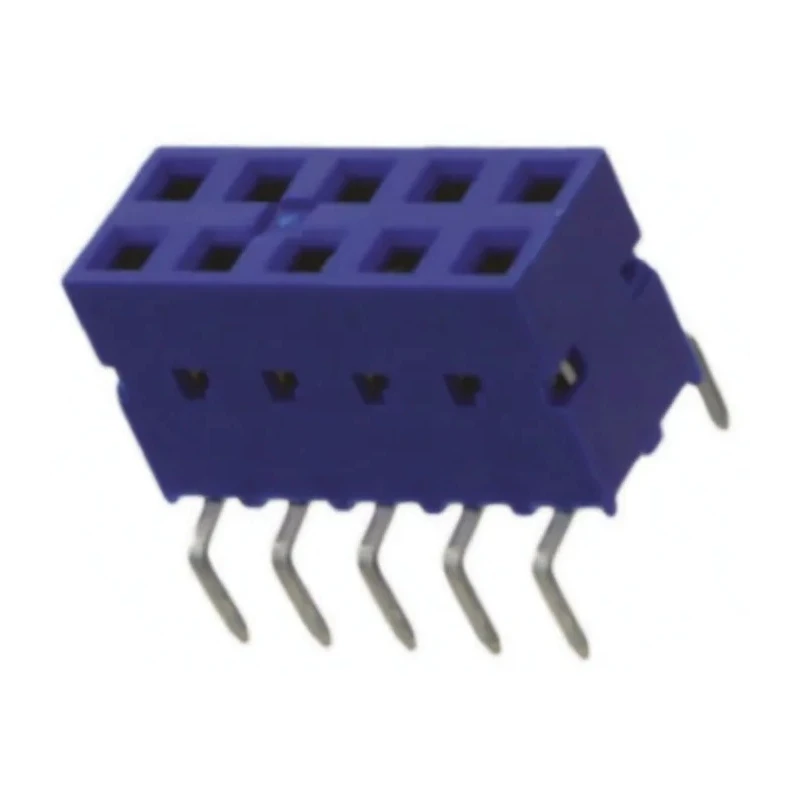

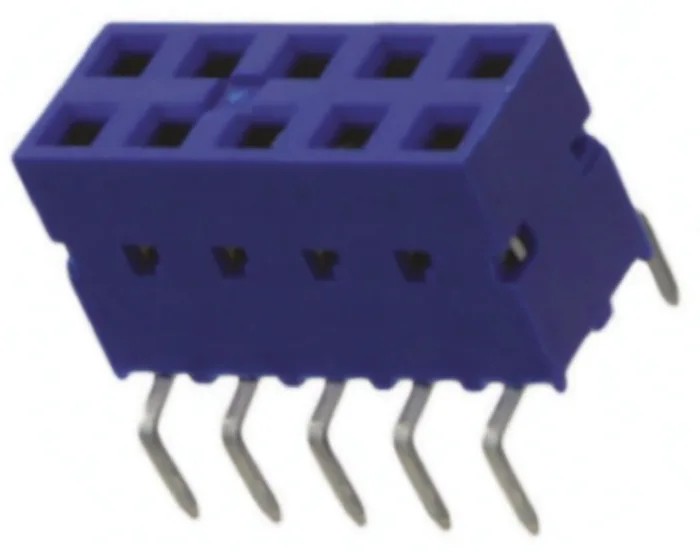

Amphenol ICC 10-Contact 2-Row 2.54 mm Pitch Straight Through Hole PCB Socket 12A 1kV Glass Filled Thermoplastic 71991-305LF

Amphenol ICC 71991-305LF is a precision-engineered PCB socket that offers 10 contacts arranged in 2 rows with a 2.54 mm pitch, tailored for robust board-to-board connections in electronic assemblies. This straight through hole socket is constructed with glass filled thermoplastic housing, offering enhanced mechanical strength and electrical insulation suitable for demanding environments.

The socket’s bronze contacts are plated with 0.76 μm gold on mating areas, ensuring excellent conductivity and resistance to corrosion, while PCB tails are matte tin plated for solderability. Designed to handle electrical currents up to 12A and withstand voltages up to 1kV, this component supports reliable power transmission in a compact footprint.

Operating temperatures range from a low of -65°C to a high of 125°C, accommodating a wide array of industrial, manufacturing, and electronic use cases including communications equipment, instrumentation, and power distribution boards. The through hole mount provides sturdy mechanical retention to PCBs, enhancing durability in vibration-prone applications.

This socket's straight orientation facilitates straightforward signal and power routing on densely packed PCB designs. It is part of the larger 71991 series known for its versatile and reliable interconnection solutions in industrial and commercial electronics.

Durable glass filled thermoplastic housing offers mechanical strength and electrical insulation. Bronze contacts with gold plating for corrosion resistance and low electrical resistance. Supports 12A current and 1kV voltage rating for robust performance.

Wide operating temperature range from -65°C to 125°C for diverse applications. Through hole mount ensures secure and stable PCB assembly. Straight orientation with 2 rows and 2.54 mm pitch optimizes layout flexibility. Manufactured in France, aligning with stringent quality standards.

Ideal for industrial, laboratory, manufacturing, and electronic equipment uses. Explore more reliable PCB Sockets and power connectors from Amphenol ICC in the Electronics & Electricals category at EnvMart to enhance electronic system designs and performance.
