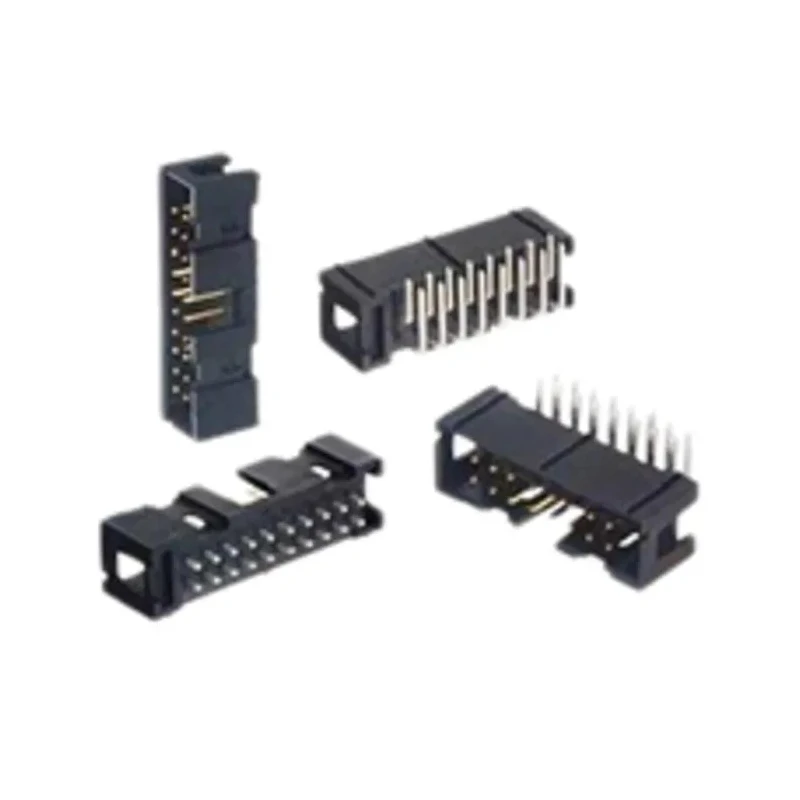

Amphenol ICC Quickie Series 16-Contact 2 Row 2.54 mm Pitch Straight Cable PCB Socket 71600-116LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Amphenol ICC |
| Orientation | Straight |
| Current | 1A |
| Model | 71600-116LF |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Quickie |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- Designed for wire-to-board connector applications.
- Features IDC termination type for quick cable assembly.
- Constructed with polyethylene terephthalate housing for durability.
- Gold-plated phosphor bronze contacts assure reliable electrical performance.
- Rated for 1A current and voltage up to 1kV.
- Operates reliably between -65°C and 105°C temperatures.
- Supports up to 100 mating cycles with duplex plating on terminals.
- Includes polarization slots to prevent connector mismating.
Product Description
Amphenol ICC 71600-116LF Quickie Series Straight Cable PCB Socket is a 16-contact, 2 row, 2.54 mm pitch IDC receptacle connector designed for use with flat flexible cable sized 30 AWG to 26 AWG. It supports wire-to-board connections with a cable mount type and straight orientation.
The connector housing is manufactured from polyethylene terephthalate, providing durability and environmental resistance. The phosphor bronze contacts are gold plated to ensure excellent electrical conductivity and corrosion resistance. The IDC termination type allows for quick and reliable cable termination without soldering.
Operating voltage is rated at 1kV with a current capacity of 1A. The product features an adjustable bridge type cover that protects contacts and guarantees precise cover-to-base alignment, facilitating reliable termination and assembly. The connector is capable of withstanding temperatures from -65°C to 105°C, suitable for harsh industrial environments.
This Quickie series connector is certified for up to 100 mating cycles due to its duplex plated terminals that provide long wiping action for consistent contact performance. Polarization slots and keying features prevent connector mismating, enhancing system reliability.
Applications include industrial systems, instrumentation, medical equipment, consumer electronics, communications, and data interconnection solutions. The product mates with specific Quickie latch headers, ensuring mechanical stability and electrical integrity.
Designed for wire-to-board connections with IDC termination. Robust polyethylene terephthalate housing material. Gold-plated phosphor bronze contacts for superior conductivity. Supports 16 contacts arranged in 2 rows at 2.54 mm pitch.
Rated for 1A current and 1kV voltage applications. Temperature range from -65°C to 105°C ensures versatile industrial use. Duplex plated terminals guarantee 100 mating cycles. Polarization slots prevent mismatching during assembly.
Compatible with Quickie series latch headers for secure mating. Explore more PCB sockets and connectors in the Electronics & Electricals category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1A.
It can handle a maximum voltage of 1kV.
The connector operates reliably between -65°C and 105°C.
It features 16 contacts arranged in 2 rows.
This model uses IDC (Insulation Displacement Contact) termination for quick cable assembly.
The housing is made from polyethylene terephthalate, and the contacts are made of gold-plated phosphor bronze.
The contacts are arranged at a pitch of 2.54 mm.
It is certified for up to 100 mating cycles due to its duplex plated terminals.
It is suitable for industrial systems, instrumentation, medical equipment, consumer electronics, communications, and data interconnection solutions.
The connector has a straight orientation.
Yes, it includes polarization slots to prevent connector mismating.
It uses a wire-to-board connector system.
