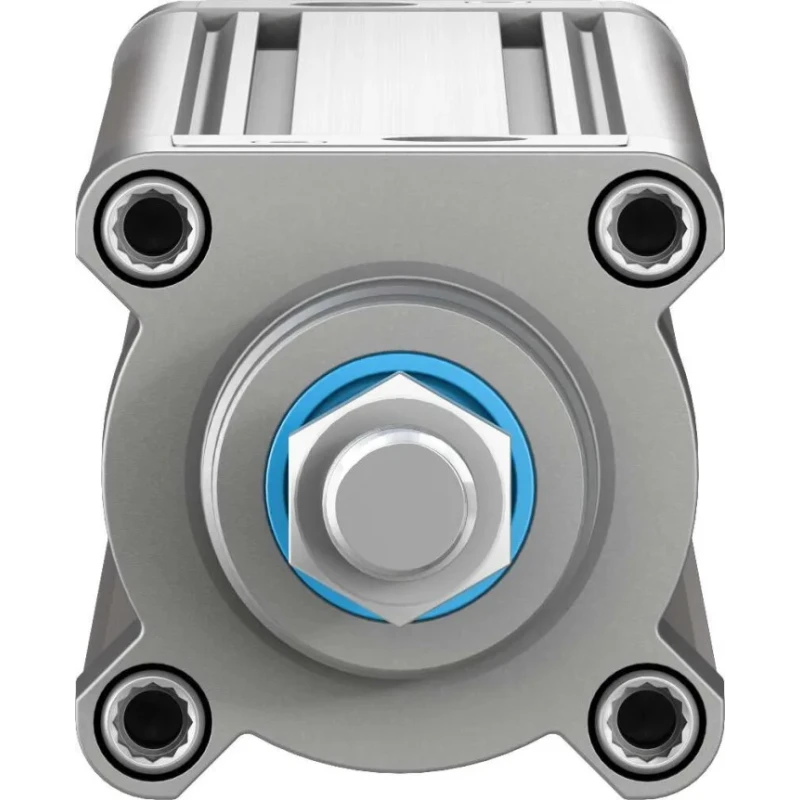

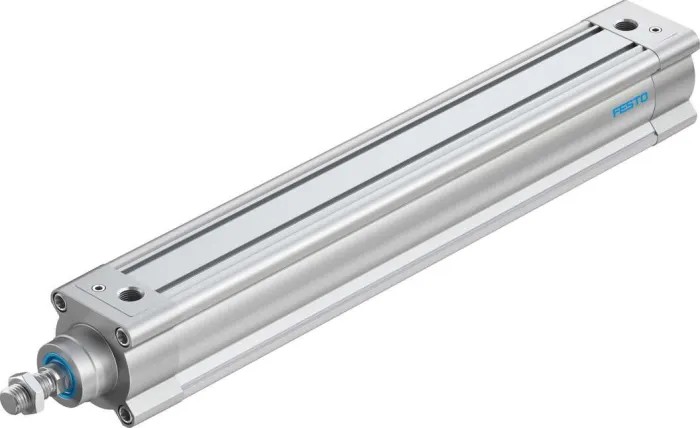

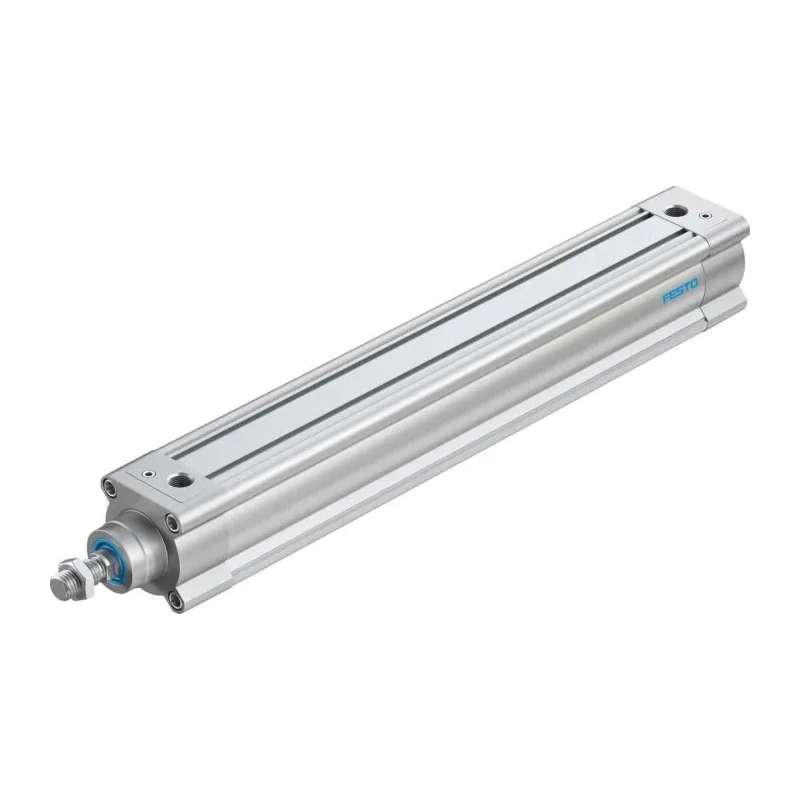

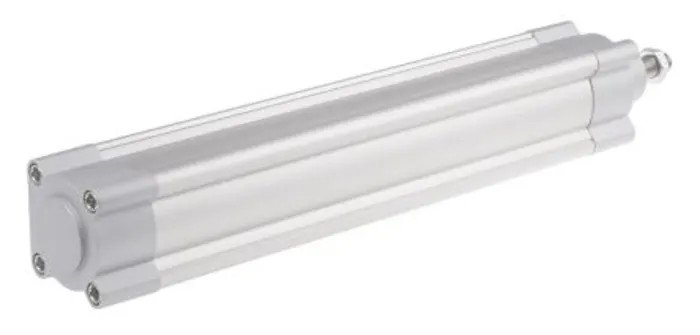

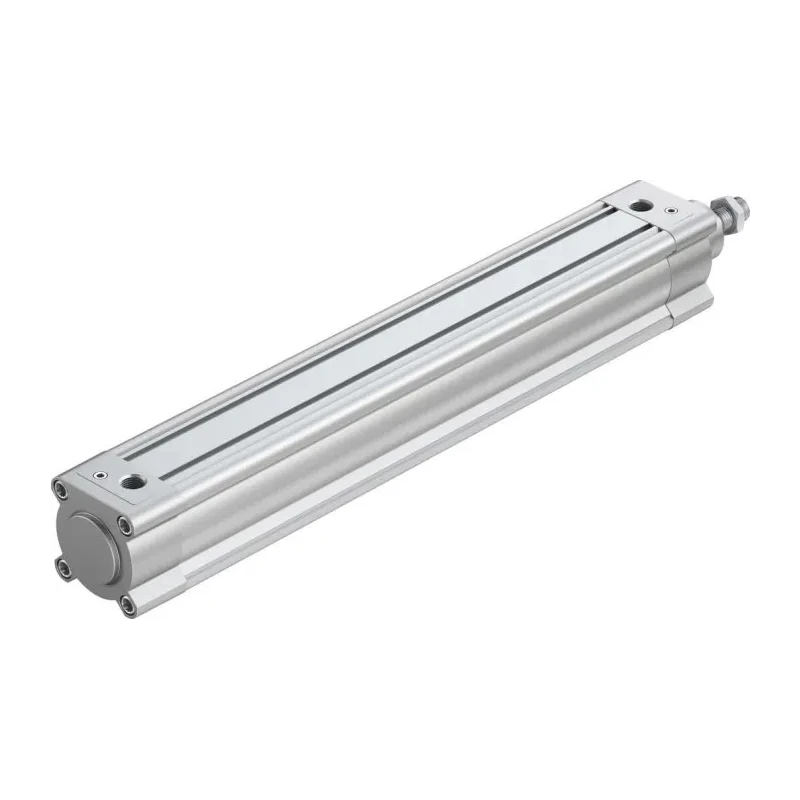

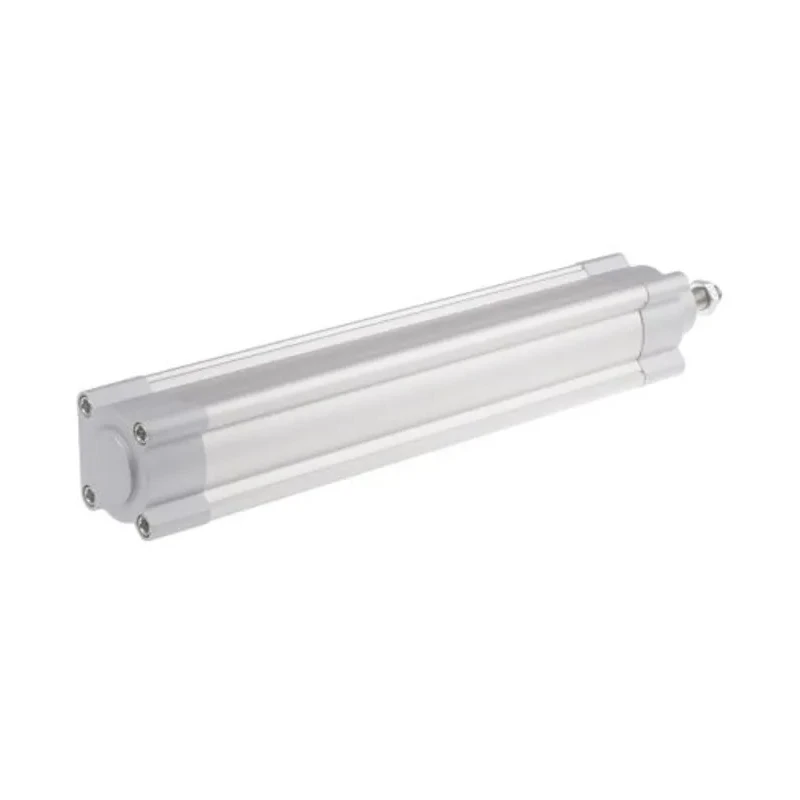

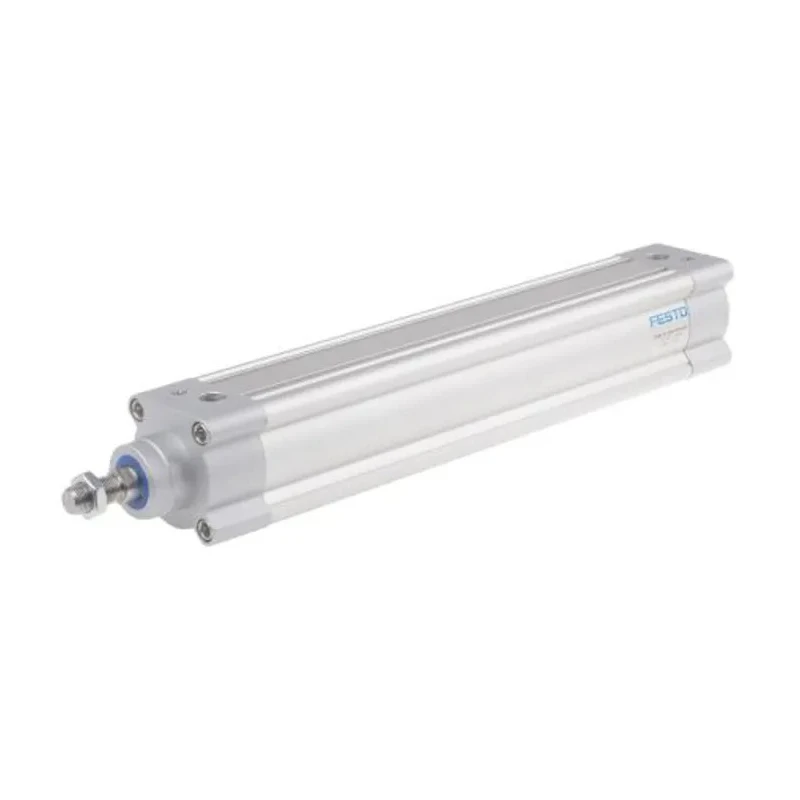

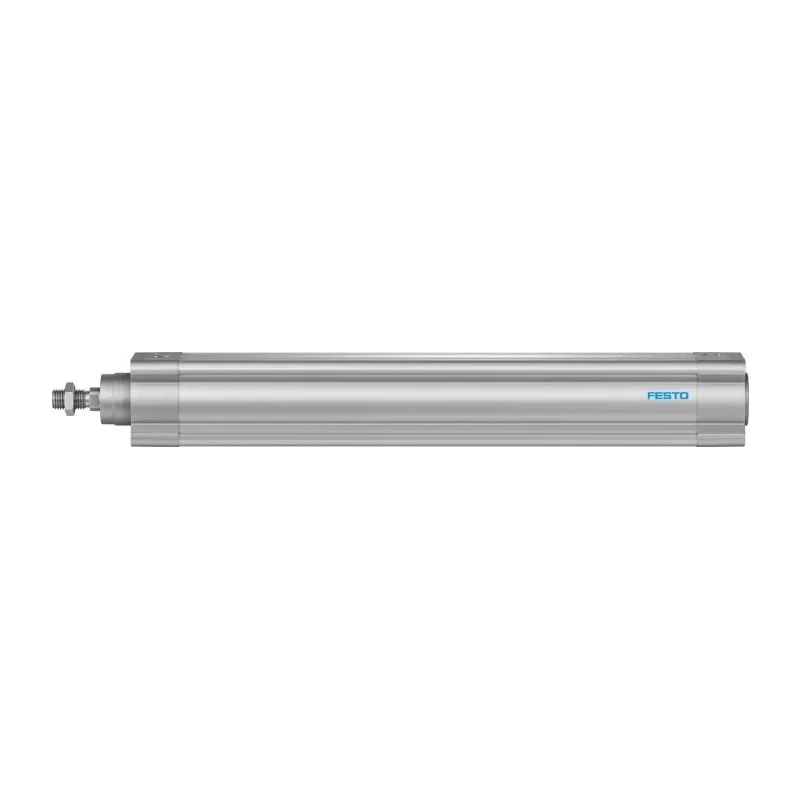

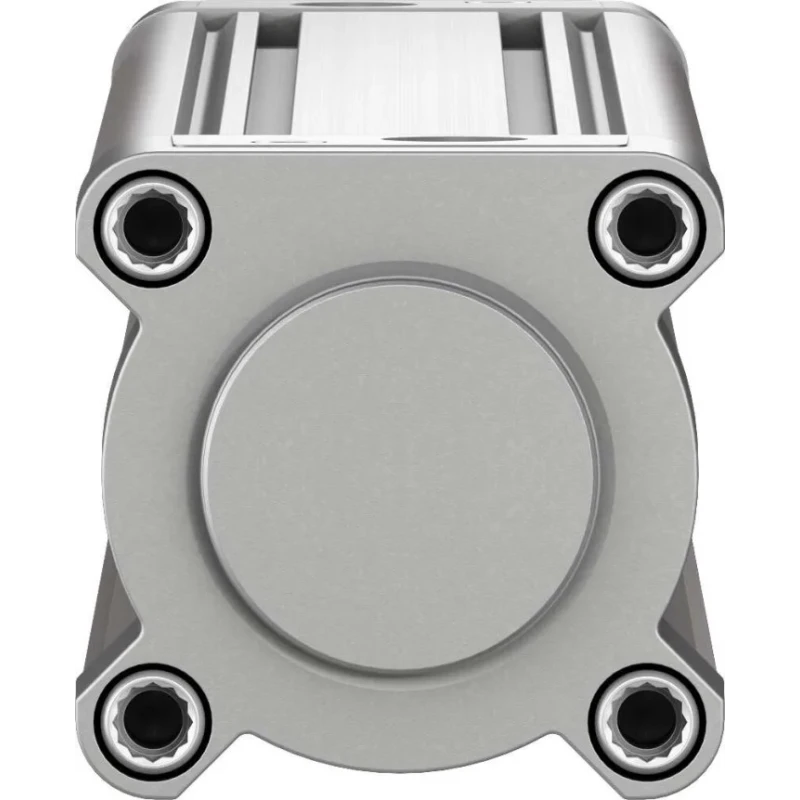

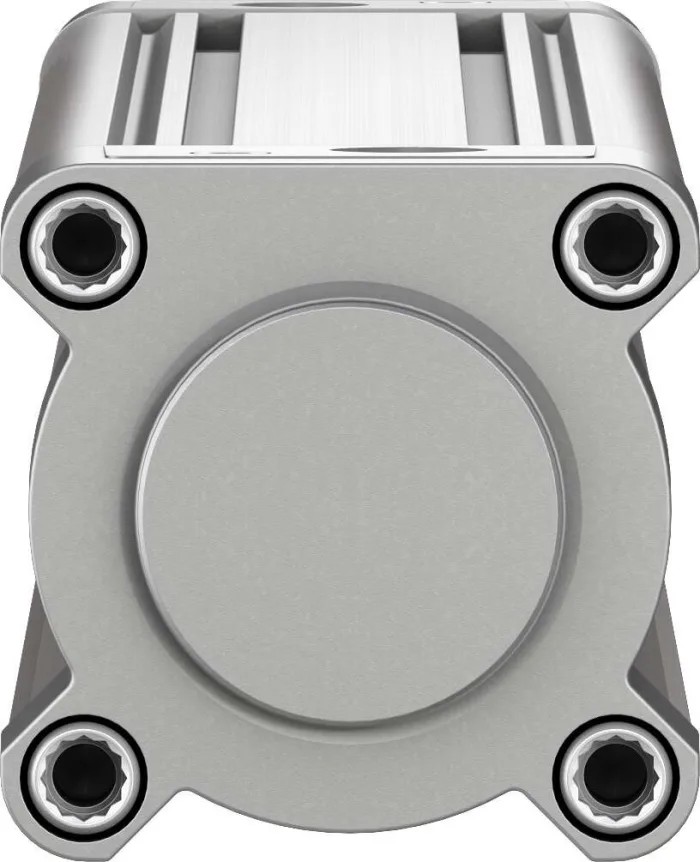

Festo Pneumatic Piston Rod Cylinder Double Acting 63mm Bore 400mm Stroke Aluminium Body DSBC-63-400-PPVA-N3

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Piston Rod Cylinder Double Acting 63mm Bore 400mm Stroke Aluminium Body DSBC-63-400-PPVA-N3

Name: Festo Pneumatic Piston Rod Cylinder Double Acting 63mm Bore 400mm Stroke Aluminium Body DSBC-63-400-PPVA-N3
Brand: FESTO
SKU: 145412
Price: 290.25 USD
Availability: InStock



Category Pneumatic Piston Rod Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	Aluminium
Maximum Operating Pressure	12 bar
Height	75mm
Length	193.1mm
Model	DSBC-63-400-PPVA-N3
Gross Weight	1.7kg
Width	75mm
Mount Type	Through Hole
Series	DSBC
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	400mm
Bore Diameter	63mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 15552, RoHS
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Size	3/8 in G

Key Features

Double acting cylinder with ports at both ends for efficient piston movement.
Aluminium die-cast coated body offers mechanical wear resistance.
Adjustable air cushioning ensures smooth operation and reduces piston wear.
Suitable for operating temperatures from -20°C to 80°C for versatile deployment.
Threaded pneumatic connection for simplified assembly and integration.
Compact dimensions with 75mm width and height, and 193.1mm length.
Maximum operating pressure rated at 12 bar.
High alloy steel single piston rod resists corrosion and moisture damage.

Product Description

Festo DSBC-63-400-PPVA-N3 Pneumatic Piston Rod Cylinder features a 63mm bore diameter and a 400 mm stroke length, designed for precise linear motion control in industrial settings. This double acting cylinder allows compressed air to move the piston rod in both directions, offering enhanced operational efficiency.

The cylinder body is made from robust aluminium with a die-cast coating, providing excellent resistance to mechanical wear and harsh industrial environments. It features an air cushion type adjustable cushioning system to reduce impact and extend service life. Its compact size with dimensions of 193.1mm length, 75mm width, and height makes it suitable for installations with space constraints.

Equipped with a single male piston rod manufactured from high alloy steel, it ensures durability and resistance against moisture damage. The cylinder supports a maximum operating pressure of 12 bar and operates reliably between -20°C to 80°C, accommodating varied industrial temperature requirements.

The threaded pneumatic connection simplifies the assembly process. This model complies with international standards ISO 15552 and RoHS, ensuring both quality and environmental compliance.

Double acting cylinder with two ports for bi-directional operation. Aluminium die-cast coated housing for high wear resistance. Adjustable air cushioning to protect the piston and ensure smooth operation. Operating temperature from -20°C up to 80°C for robust performance.

Threaded pneumatic connection enables easy installation. Compliant with ISO 15552 and RoHS standards for reliability. Ideal for applications in irrigation, safety devices, construction, and HVAC systems.

This pneumatic cylinder is engineered for longevity and consistent performance in demanding industrial, manufacturing, agricultural, and HVAC environments. The durable construction and adjustable features allow it to be configured for specific use cases requiring precise and reliable linear actuation.
