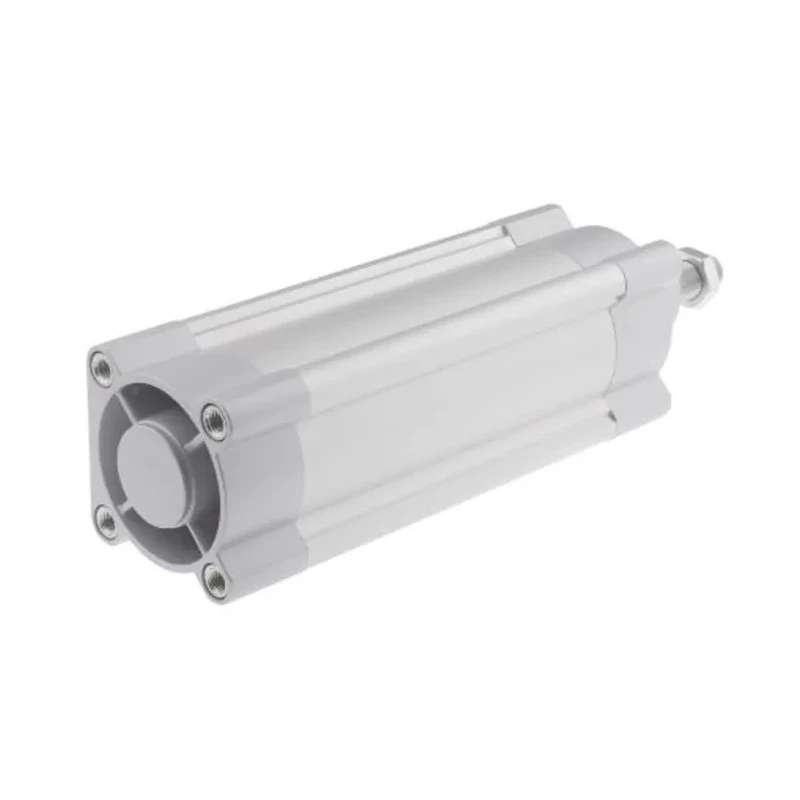

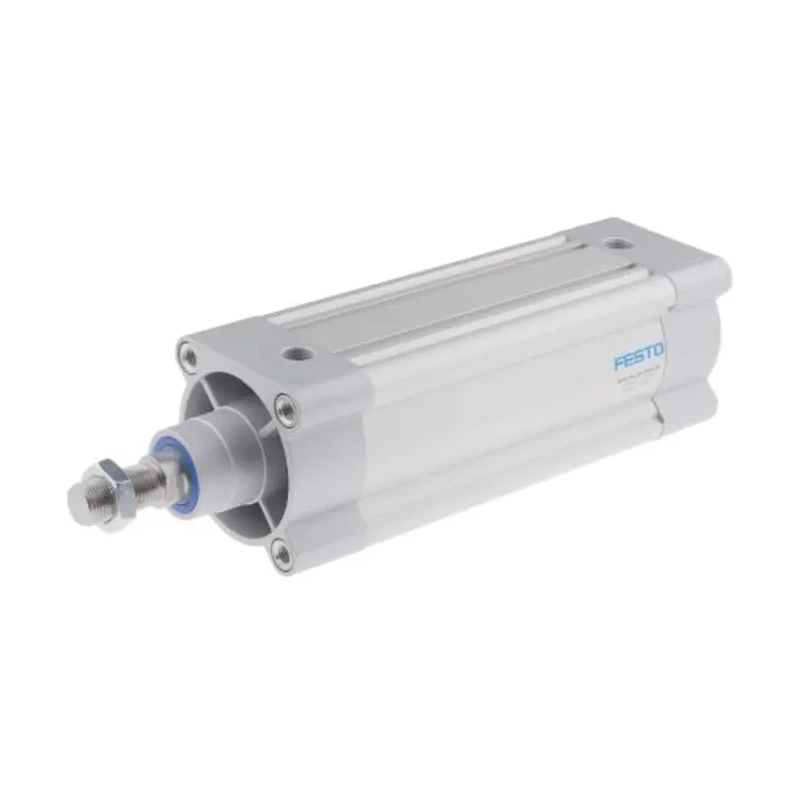

Festo Pneumatic Piston Rod Cylinder 80mm Bore, 320mm Stroke, Double Acting, Aluminium Body, DSBC-80-320-PPVA-N3

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Piston Rod Cylinder 80mm Bore, 320mm Stroke, Double Acting, Aluminium Body, DSBC-80-320-PPVA-N3

Name: Festo Pneumatic Piston Rod Cylinder 80mm Bore, 320mm Stroke, Double Acting, Aluminium Body, DSBC-80-320-PPVA-N3
Brand: FESTO
SKU: 145410
Price: 374.19 USD
Availability: InStock



Category Pneumatic Piston Rod Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Body Material	Aluminium
Maximum Operating Pressure	12 bar
Height	93mm
Length	217.6mm
Model	DSBC-80-320-PPVA-N3
Gross Weight	2.7kg
Width	93mm
Mount Type	Through Hole
Series	DSBC
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	320mm
Bore Diameter	80mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 15552, RoHS
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Size	3/8 in G

Key Features

Conforms to ISO 15552 standard for pneumatic cylinders.
Double acting with adjustable pneumatic cushioning at both ends.
Aluminium body with high-alloy steel piston rod ensures durability.
Threaded male piston rod with 3/8 inch G thread size.
Maximum operating pressure of 12 bar and temperature range from -20°C to 80°C.
Magnetic piston rod allows contactless position detection.
Compact dimensions with length 217.6mm, height and width 93mm.
Lightweight design with gross weight approximately 2.7kg.

Product Description

Festo DSBC-80-320-PPVA-N3 pneumatic piston rod cylinder with 80mm bore diameter and 320mm stroke length is designed for versatile industrial, manufacturing, and automation applications requiring precise linear actuation.

This double acting actuator features an aluminium body and a high-alloy steel piston rod with a threaded male connector sized 3/8 inch G. It supports double acting pneumatic operation, allowing compressed air to advance and retract the piston effectively. The adjustable pneumatic cushioning at both ends reduces noise and vibration while handling medium to heavy loads and high-speed cycling.

Compliant with ISO 15552 standards, it is mountable in any position via through-hole mount type. The magnetic piston rod enables contactless position detection with proximity sensors fitted in dedicated slots along the cylinder barrel.

The cylinder operates reliably between temperatures of -20°C and 80°C, with a maximum operating pressure of 12 bar. Compact dimensions of 217.6mm length, 93mm height, and 93mm width, paired with a gross weight of 2.7kg, deliver a balance of robustness and manageable size. This makes it fit for many pneumatic automation, packaging, and material handling systems.

ISO 15552 standard compliant pneumatic cylinder. Double acting with pneumatic cushioning on both ends. Aluminium body and chrome-plated steel piston rod for longevity. Threaded male piston rod connector (3/8 in G thread).

Operating pressure up to 12 bar and temperature range -20°C to 80°C. Magnetic piston rod for position sensing support. Through hole mounting type allowing flexible installation. Lightweight gross weight approximately 2.7kg with compact form factor.

This Festo DSBC series pneumatic cylinder is suitable for industrial automation, fluid power systems, manufacturing machinery, HVAC applications, and other engineering solutions where precision and durability are critical. Compatible with a wide range of valve and sensor accessories, it offers customizable operation features for enhancing equipment efficiency.
