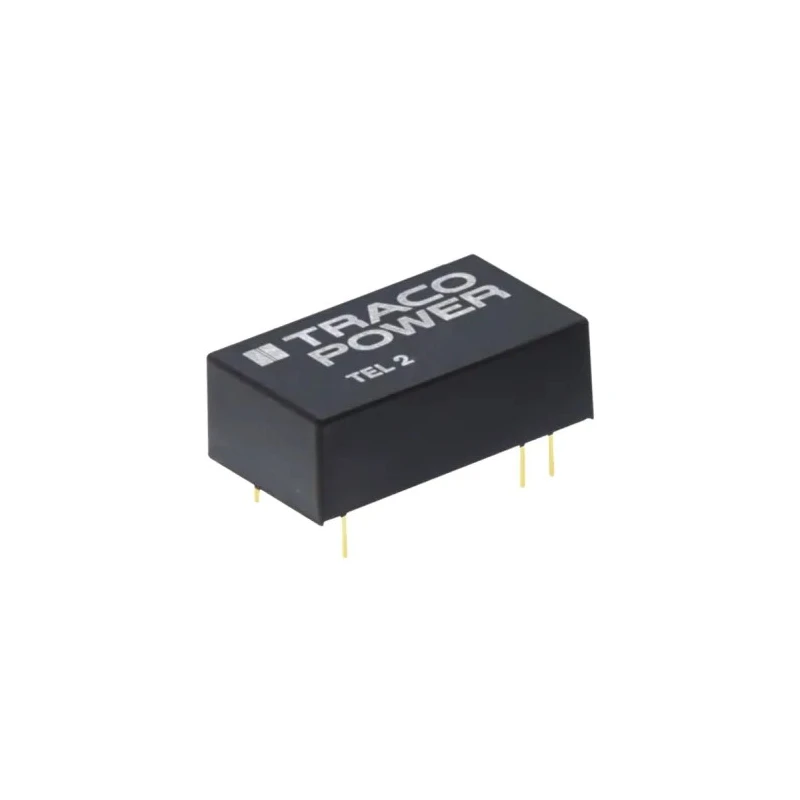

TRACOPOWER Regulated Isolated DC/DC Converter 5V DC Output 400mA, 9-18V DC Input, 2W DIP 6-Pin PCB Mount TEL 2-1211
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEL 2 DC/DC Converter, 5V dc/ 400 mA, 1 |
| Brand | TRACOPOWER |
| Efficiency | 77% |
| Length | 23.8mm |
| Model | TEL 2-1211 |
| Depth | 7.62mm |
| Mount Type | PCB |
| Series | TEL 2 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input range |
Key Features
- Compact DIP-16 plastic package occupies minimal PCB space.
- High isolation voltage of 1.5kV DC enhances safety and noise immunity.
- Regulated output voltage providing stable 5V DC power supply.
- Maximum operating temperature up to 80°C with a minimum of -40°C.
- Efficiency rating of approximately 77% for energy savings.
- Short-circuit protection ensures device reliability and longevity.
- Compliance with RoHS standards and lead-free design.
- MTBF rating of 1,200,000 hours indicating high reliability.
Product Description
TRACOPOWER TEL 2-1211 DC/DC Converter is a high-reliability, regulated, isolated power supply module designed for industrial and consumer electronics applications requiring a compact footprint and efficient DC voltage conversion. It operates with a wide input voltage range of 9V to 18V DC, providing a stable 5V DC 400mA output power of 2 watts through a compact 6-pin DIP package optimized for PCB mounting.
This converter features an isolation voltage of 1.5kV DC and an efficiency of approximately 77%, which minimizes heat generation and enables operation up to a maximum temperature of 80°C without derating. The converter also includes indefinite short-circuit protection, ensuring safety in fault conditions.
The TEL 2-1211's regulated output and wide temperature tolerance (-40°C to +80°C) make it suitable for demanding environments including industrial controls, instrumentation, communication equipment, and embedded systems. Its small form factor and low profile allow integration into space-constrained designs without the need for additional external components.
Additional technical highlights include compliance with RoHS lead-free standards and an MTBF of 1,200,000 hours, underscoring its durability and quality. The device meets UL/cUL 60950-1 and IEC/EN 60950-1 safety standards, and is CSA approved (File no. 226037).
Compact DIP-16 plastic package occupies minimal PCB space. Wide 2:1 input voltage range from 9V to 18V DC for versatile power sources. High isolation voltage of 1.5kV DC enhances safety and noise immunity. Regulated output voltage providing stable 5V DC power supply.
Maximum operating temperature up to 80°C with a minimum of -40°C. Efficiency rating of approximately 77% for energy savings. Short-circuit protection ensures device reliability and longevity. Compliance with RoHS standards and lead-free design.
MTBF rating of 1,200,000 hours indicating high reliability. Operating temperature range suitable for industrial and consumer electronics applications.
This DC/DC Converter is ideal for various industrial, laboratory, and commercial electronic power supply applications that require compact size, high reliability, electrical isolation, and regulated outputs. Browse the EnvMart collection of high-quality power supply modules for further solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 400mA.
The TEL 2-1211 operates within a wide input voltage range of 9V to 18V DC.
It has an efficiency rating of approximately 77%, which helps to minimize heat generation during operation.
The isolation voltage for this unit is 1.5kV DC, enhancing safety and noise immunity.
This model measures 23.8mm in length and 7.62mm in depth, making it compact for PCB mounting.
It can operate in temperatures ranging from -40°C to 80°C, suitable for various environments.
This unit features a single output.
It comes in a compact DIP-16 plastic package, optimized for PCB mounting.
The TEL 2-1211 meets UL/cUL 60950-1 and IEC/EN 60950-1 safety standards and is CSA approved.
The mean time between failures (MTBF) rating for this model is 1,200,000 hours, indicating high reliability.
Yes, this unit includes indefinite short-circuit protection to ensure reliability in fault conditions.
Yes, it complies with RoHS standards and features a lead-free design.
