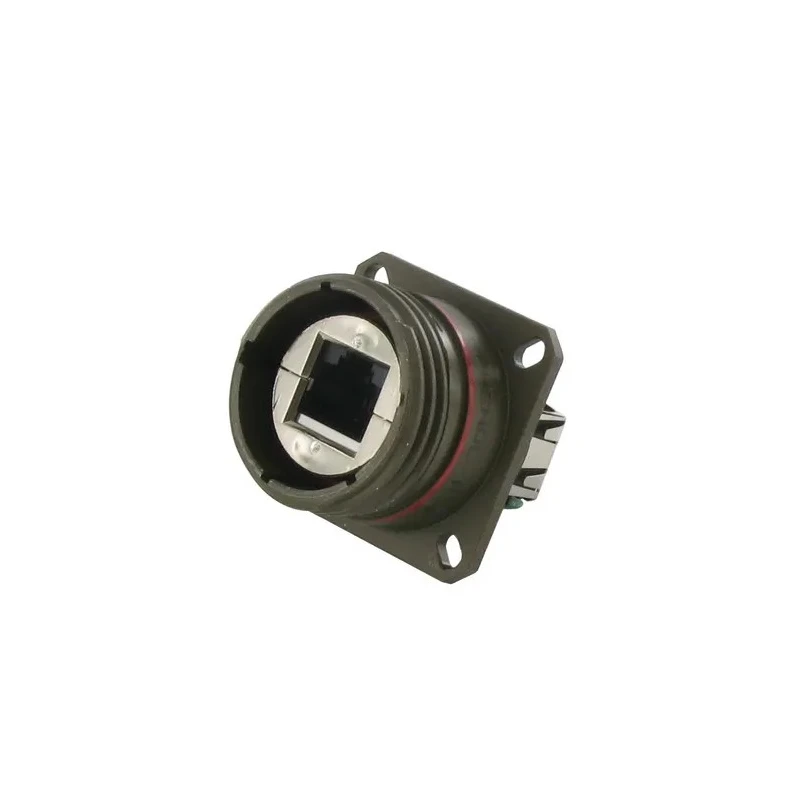

Amphenol Socapex RJFTV Series RJ45 Shielded Female Panel Mount Connector Cat5e 1 Port 8 Way

Amphenol Socapex RJFTV21G RJ45 Connector is a shielded female panel mount Ethernet Connector from the RJFTV series offering Cat5e networking capabilities. This connector is engineered for harsh and challenging environments, featuring an IP68 waterproof rating, making it dust-tight and submersible up to 1.5 meters. It ensures robust and reliable Ethernet connectivity for industrial, military, automotive, marine, railway, and telecommunications applications.

The RJFTV21G model features 1 port with 8 ways, a square flange panel mount with 4 mounting holes, and a straight connector orientation. Constructed with an aluminium shell finished with olive drab cadmium plating, it enhances corrosion resistance and mechanical durability. Contacts are made of copper alloy with gold plating to maintain optimal electrical contact performance under demanding conditions.

The connector supports Cat5e LAN category compliant with TIA/EIA 568B and ISO/IEC 11801 Class D standards, compatible with 10 BaseT, 100 BaseTX, and 1000 BaseT networks. It accepts cable diameters from 6mm to 13mm and uses screw termination for secure connection without requiring cabling operation in the field. Operating temperature range extends from -40°C to 85°C, providing versatility across diverse applications.

1 Female RJ45 port supporting Cat5e Shielded Ethernet. IP68 rated waterproof and dustproof protection. Mount type: Panel mount with 4 mounting holes. Termination type: Screw for secure connections. Contact materials: Copper Alloy with Gold plating.

Compatible with cable diameters 6mm to 13mm. Operating temperature: -40°C to 85°C. Dimensions approximately 31.55 mm diameter by 43.1 mm length. Durable aluminium shell with olive drab cadmium plating. Ideal for outdoor, military, railway, marine, and industrial Ethernet applications.

This RJFTV series connector ensures reliable data transmission in environments demanding ruggedness and high protection. It is highly suitable for industrial Ethernet networks requiring robust connectivity solutions ensuring performance under moisture, dust, vibration, and shock conditions.
