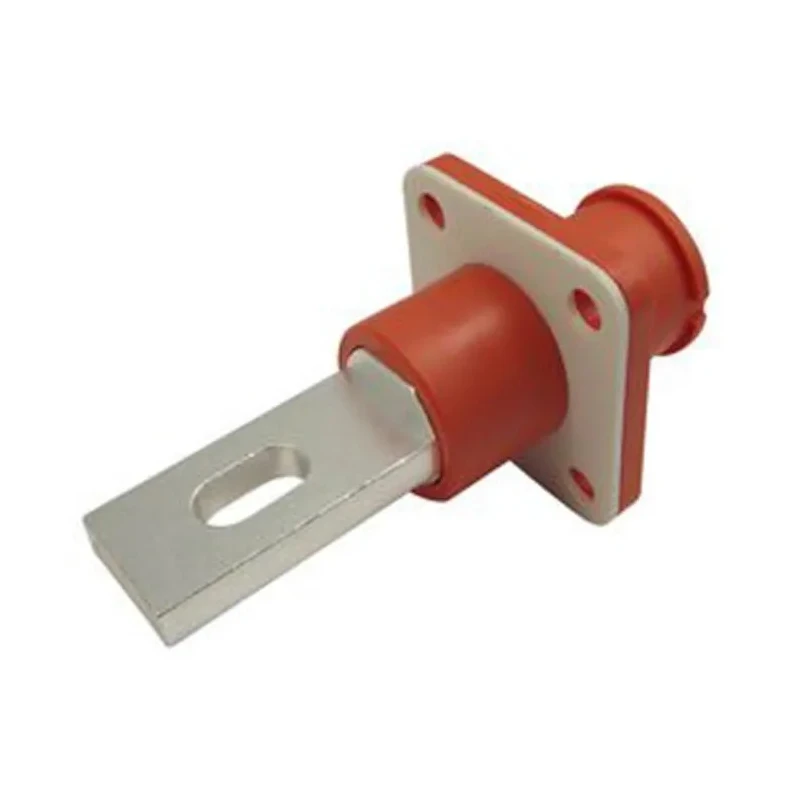

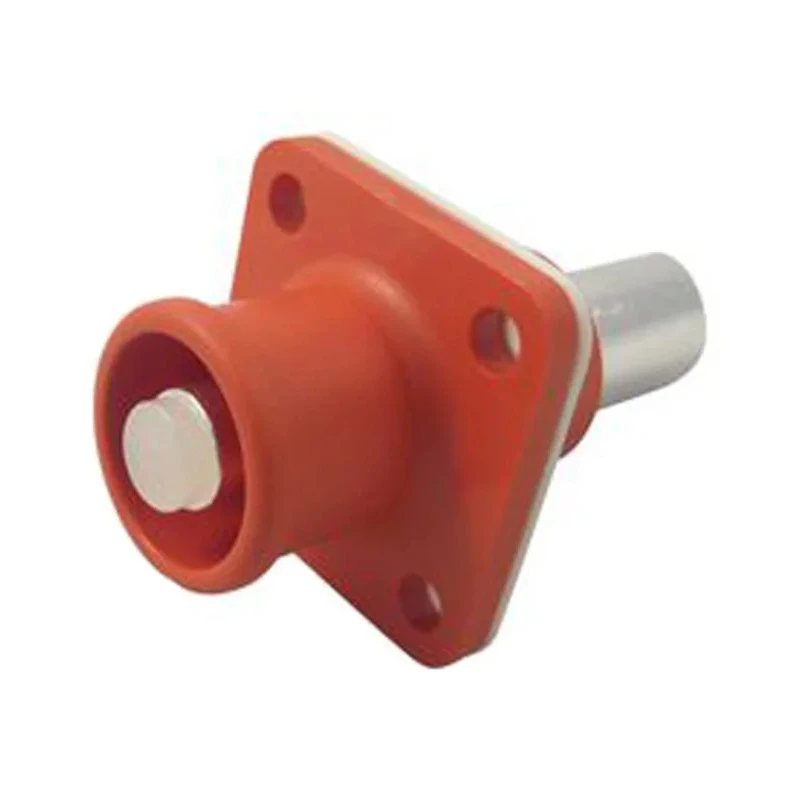

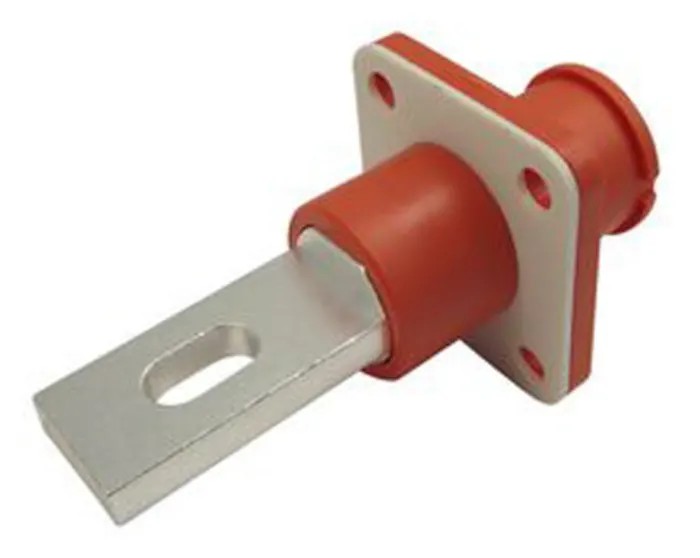

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 200A 1000V Panel Mount IP67 SLPIRB50CPSB0 / C10-731950-100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Current | 200A |
| Height | 30mm |
| Model | SLPIRB50CPSB0 / C10-731950-100 |
| Depth | 53.7mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Durable thermoplastic housing ensures robust protection and UL 94-V0 flammability rating.
- Supports a wire size of 50mm² featuring a 8mm pin diameter for reliable connections.
- Rated for temperature range from -40°C to 125°C, suitable for demanding environments.
- Designed with spring locking and keyed to prevent mismating with 90-degree keying.
- IP67 rated for environmental sealing and dust-proof performance.
- Uses copper alloy contacts for excellent conductivity and reliability.
- Connector type is RADSOK with straight orientation and female connector gender.
- Panel mount configuration designed for ease of installation.
Product Description
Amphenol Industrial SLPIRB50CPSB0 / C10-731950-100 SURLOK PLUS RADSOK EV Connector is a high-performance female connector designed for demanding electrical applications requiring up to 200A current and 1000V operating voltage. It features a durable thermoplastic housing with UL 94-V0 flammability rating ensuring reliable operation under harsh conditions.
This connector is engineered with an 8mm pin diameter and is compatible with 50mm² wire size. It has a panel mount flange design, providing a secure and stable mounting solution. The connector includes spring locking and 90-degree keying to prevent incorrect mating, enhancing connection reliability.
Rated for a temperature range from -40°C to 125°C and IP67 protection class, it withstands extreme environmental factors including dust and water ingress, suitable for outdoor and industrial settings. The contact material is copper alloy, providing excellent electrical conductivity needed in EV and high current power systems.
Typical applications include Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) systems, rail mass transit, process control equipment, medical devices, and battery management systems (BMS). This rugged panel mount EV connector is part of the SURLOK PLUS RADSOK series, known for its quick mating, high tensile strength connection utilizing R4 Radsock technology for enhanced conductivity and mechanical stability.
The product meets international safety standards including UL 94-V0 and offers a renewable energy compliant solution, aligning with sustainability goals in modern electric and energy storage industries.
Durable thermoplastic housing with UL 94-V0 flammability rating. Spring locking mechanism and 90-degree keyed design to prevent mismating. IP67 rated dust and water ingress protection. Compatible with 50mm² wires and 8mm pin diameter contacts.
Supports operating temperatures from -40°C to 125°C. Copper alloy contacts ensure excellent electrical conductivity. Panel mount type for secure installation. Designed for Electric Vehicles, rail transit, medical, and process control applications.
Explore the Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female and other robust EV Connector solutions at EnvMart for reliable power management in your industrial projects.
