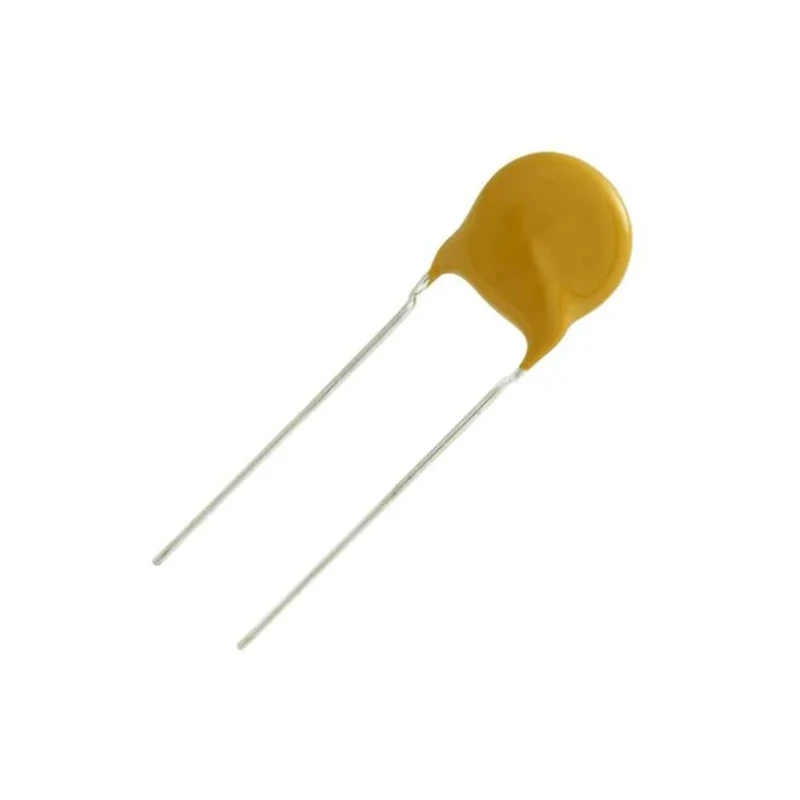

Vishay Single Layer Ceramic Capacitor 10 pF 1kV dc ±5 % C0G Dielectric Through Hole, Radial Terminal, 561R 561R10TCCQ10BA

Vishay 561R10TCCQ10BA is a Single Layer Ceramic Capacitor with a capacitance of 10 pF and rated voltage of 1kV dc. It uses a C0G dielectric material with ±5 % tolerance, ensuring stable performance in electronic circuits.

This capacitor is designed for through-hole mounting with radial terminals, making it compatible with various PCB assembly processes. It belongs to the reputable 561R series known for consistent quality and reliability in passive components.

The physical dimensions include a diameter of 6.4 mm and a width of 4 mm, with a maximum operating temperature of 105 °C and minimum operating temperature of -55 °C, allowing it to operate reliably in diverse environmental conditions.

Its dissipation factor of 0.1% guarantees minimal energy loss, critical in sensitive electronic circuits. The capacitor meets key standards such as RoHS and IEC 61249-2-21, ensuring compliance with international regulations for environmental and material safety.

Packaged in tape and reel format, it supports efficient handling in automated manufacturing and assembly environments. The capacitor’s Class I suppression classification makes it suitable for precision electronic applications requiring stable capacitance over temperature and voltage variations.

Typical applications include industrial electronics, communication devices, power supplies, and instrumentation where dependable performance is essential. This capacitor features a radial terminal type suitable for through-hole mounting.

It belongs to the 561R series known for high reliability and quality. The capacitor has a diameter of 6.4 mm and a width of 4 mm. Designed for a maximum operating temperature of 105°C and a minimum of -55°C. It offers a dissipation factor of 0.1%, ensuring low energy loss.

This component complies with RoHS and IEC 61249-2-21 standards for environmental and safety regulations. The capacitor is packaged in tape & reel format for easy automated assembly. It features a Class I suppression class making it suitable for precision applications.

The product is suitable for various electronic applications requiring stable capacitance and high voltage tolerance. Explore a wide range of electronic components and capacitors at EnvMart to meet your industrial and commercial project needs.
