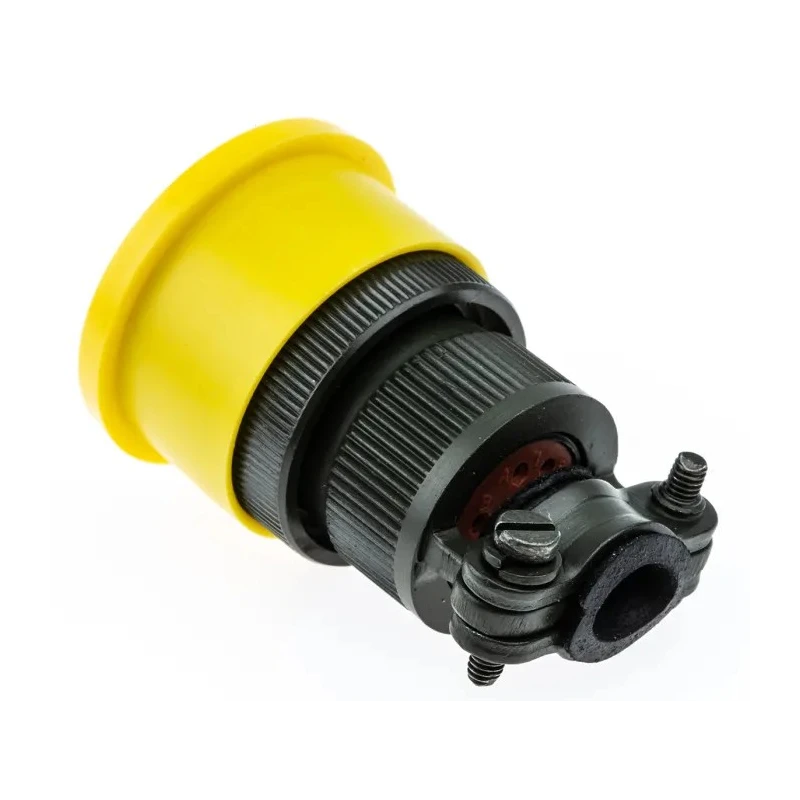

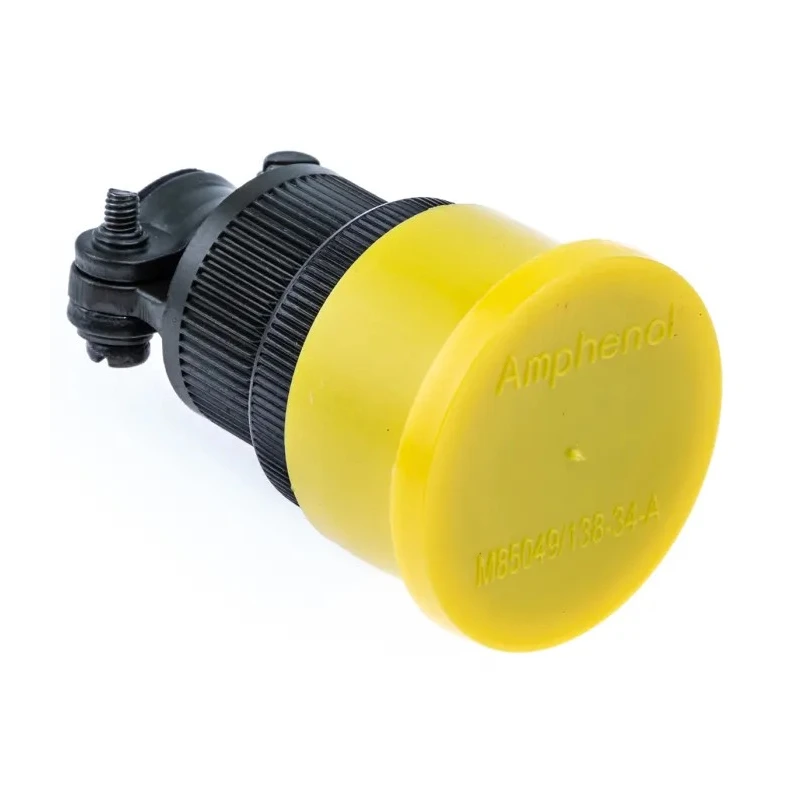

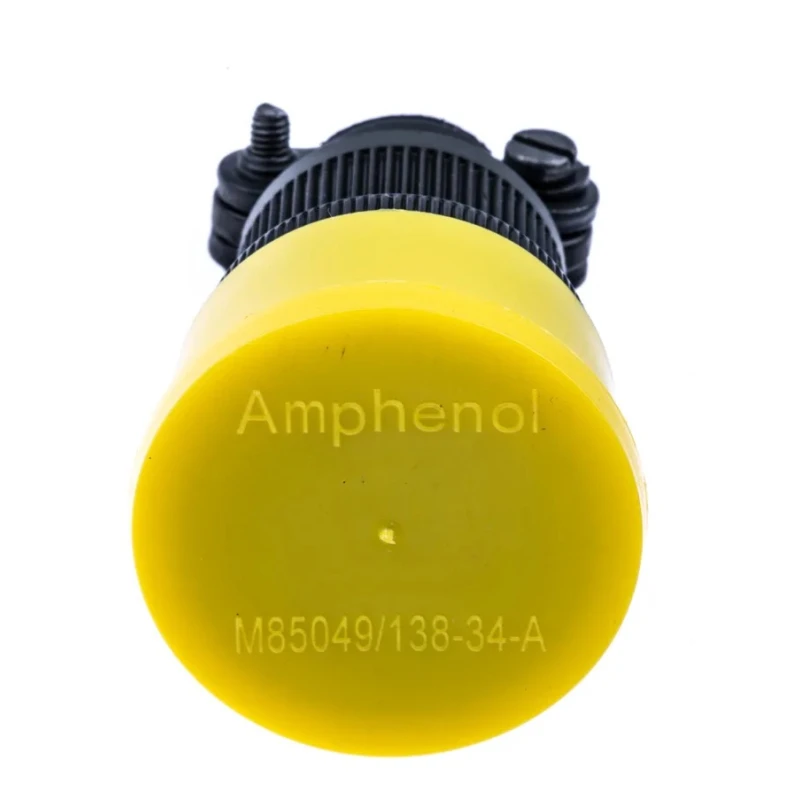

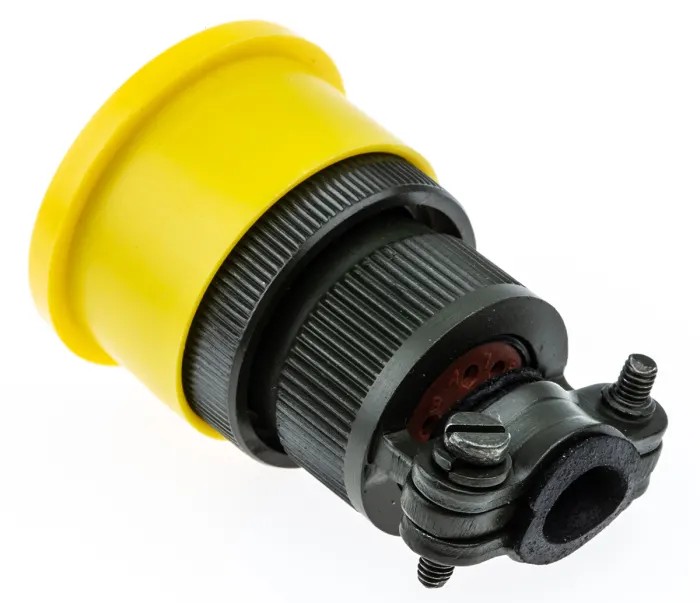

Amphenol Limited MIL Spec Circular Connector Brass Straight 8 Way Cable, Male Contacts, Shell Size 12 62GB-16F12-08PN

Amphenol Limited 62GB-16F12-08PN MIL Spec Circular Connector is a robust and high-performance circular connector designed according to MIL-DTL-26482 military standards. This connector features a brass straight 8 way cable configuration with male contacts and a shell size 12, making it suitable for critical military and industrial electrical interconnect applications requiring high reliability and environmental resistance.

Constructed from solid aluminium alloy with a zinc cobalt olive drab plating, the connector casing offers excellent corrosion resistance essential for harsh environments. The inclusion of polychloroprene rubber inserts, insert seals, and grommet seals ensures a high level of environmental protection when mated, safeguarding the electrical contacts from moisture, dust, and contaminants.

The 62GB series miniature bayonet lock plug connectors incorporate a precise bayonet lock mating system that provides a secure and easy coupling method, eliminating risks of accidental disconnection. The gold plated brass contacts are designed for superior conductivity and durability, supporting up to 500 mating cycles minimum, which ensures long service life and dependable performance.

This connector supports operation over a broad temperature range from -55°C to 125°C, making it suitable for use in extreme environmental conditions encountered in military, aerospace, and industrial applications. The connector is cable mounted with solder termination type and includes an integral strain relief clamp to protect cable integrity and connection stability during handling and operation.

The 8 way male contact design in shell size 12 offers versatility for multipole connections, meeting the requirements of rugged communications equipment, industrial control systems, and portable devices where secure connectors that meet military standards are necessary.

Bayonet lock mating system for secure connections. Compliance with MIL-DTL-26482 military standard. Solid aluminium alloy housing with zinc cobalt olive drab plating. Polychloroprene rubber inserts and seals for environmental protection.

Gold plated brass male contacts for high durability and conductivity. Operating temperature range of -55°C to 125°C. Cable mount solder termination with strain relief clamp. Shell size 12, straight orientation, standard connector size.

This Amphenol Limited MIL Spec Circular Connector 62GB-16F12-08PN is ideal for industrial, military, aerospace, and high-reliability electronics applications requiring robust circular connectors with superior environmental and mechanical properties.
