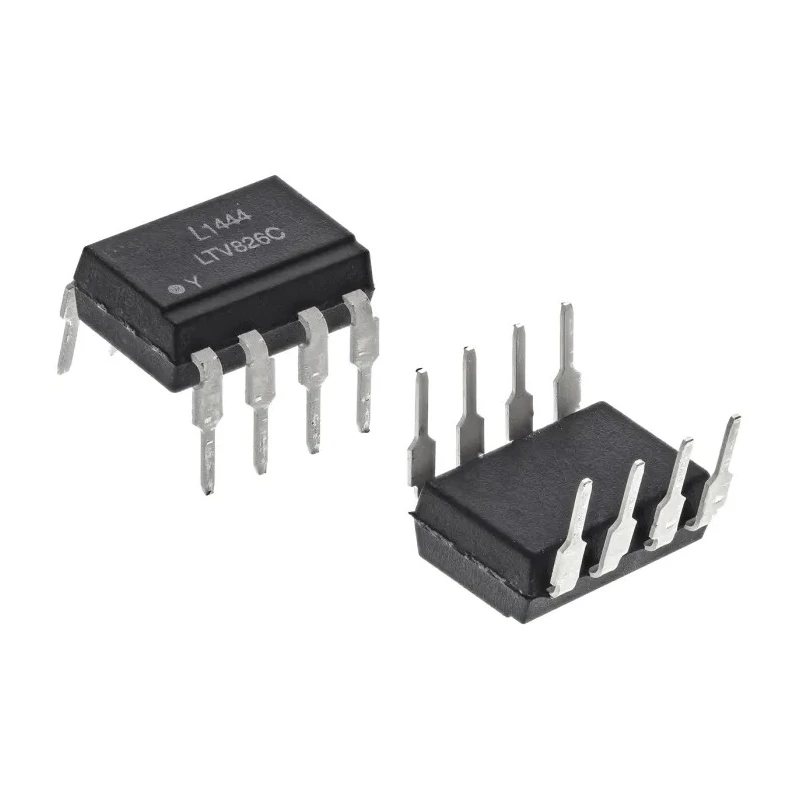

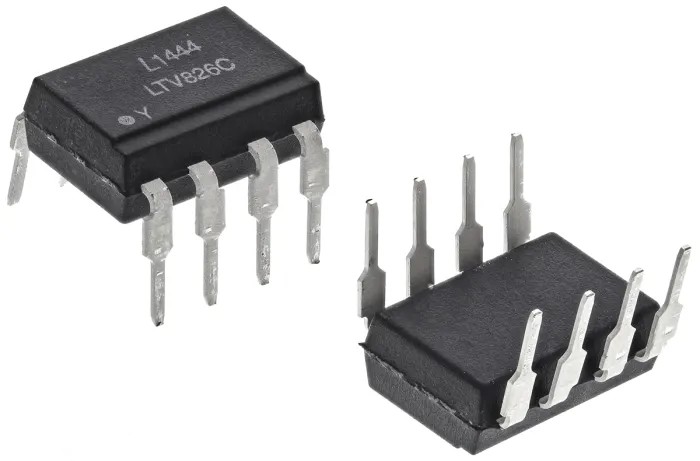

Lite-On 2-Channel Optocoupler Through Hole PDIP, DC Input, 1.4V Max Forward Voltage, LTV-826

Free Delivery in India | Lowest Global Shipping Charges

Lite-On 2-Channel Optocoupler Through Hole PDIP, DC Input, 1.4V Max Forward Voltage, LTV-826

Name: Lite-On 2-Channel Optocoupler Through Hole PDIP, DC Input, 1.4V Max Forward Voltage, LTV-826
Brand: Lite-On
SKU: 81188
Price: 0.4 USD
Availability: InStock



Category Optocoupler Brand Lite-On Condition New

Specifications

Country of Origin	India
Brand	Lite-On
Model	LTV-826
Packaging	Tape and Reel
Mount Type	Through Hole
Series	LTV
Maximum Operating Temperature	100°C
Package Type	PDIP
Minimum Operating Temperature	30°C
Maximum input current	50mA
Number Of Channels	2
Standards/Approvals	DEMKO, CSA, VDE, UL, SEMKO, NEMKO, FIMKO
Maximum Forward Voltage	1.4V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	4μs
Maximum Current Transfer Ratio	600%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	50%

Key Features

Dual channel optocoupler suitable for electrical isolation in control and signal applications.
DC input type with maximum forward voltage of 1.4V for reliable signal processing.
Supports a maximum input current of 50mA and isolation voltage up to 5 kVrms.
Robust PDIP package with 8 pins for through hole mounting flexibility.
Current transfer ratio from 50% to 600%, ensuring versatile performance.
Operating temperature range from 30°C to 100°C for varied environments.
Compliant with DEMKO, CSA, VDE, UL, SEMKO, NEMKO, and FIMKO standards.
Packaged in tape and reel, suitable for automated assembly processes.

Product Description

Lite-On LTV-826 is a high-performance DC input dual-channel optocoupler designed for industrial signal isolation and protection in electronic circuits. This product integrates optoelectronic technology to ensure safe transmission of signals across circuits with different voltage potentials. Featuring robust isolation capabilities, the LTV-826 is ideal for applications demanding reliable separation of control and output signals, especially in industrial automation, instrumentation, and signal processing environments.

The optocoupler supports two independent channels, each capable of transferring signals via optical isolation. Its maximum forward voltage of 1.4V and input current rating up to 50mA enable it to operate efficiently in DC circuits. The device provides high isolation voltage of 5 kVrms, safeguarding sensitive components from voltage spikes and surges.

Constructed in an 8-pin PDIP package for through-hole installation, the LTV-826 simplifies mounting and compatibility with existing PCB designs. The PDIP format is commonly preferred for both prototyping and volume production, ensuring mechanical strength and ease of soldering.

Offering a current transfer ratio ranging between 50% and 600%, the LTV-826 accommodates a wide range of interface requirements, making it suitable for level shifting, logic interfacing, and microcontroller or PLC input isolation. It operates reliably from 30°C to 100°C, suited for environments with moderate temperature fluctuation.

This optocoupler is compliant with multiple international standards including DEMKO, CSA, VDE, UL, SEMKO, NEMKO, and FIMKO, which underlines its safety, performance quality, and suitability for regulated industrial and commercial applications.

Each optocoupler is packaged in tape and reel format, facilitating efficient automated pick-and-place manufacturing workflows. The LTV-826 is well regarded for use in data communication, industrial controls, power supplies, and monitoring systems requiring robust signal isolation.

Explore other optoelectronic isolators and related PDIP Optocouplers within the EnvMart Electronics Components catalog. Lite-On products combine advanced design and reliability to support sophisticated signal isolation needs.
