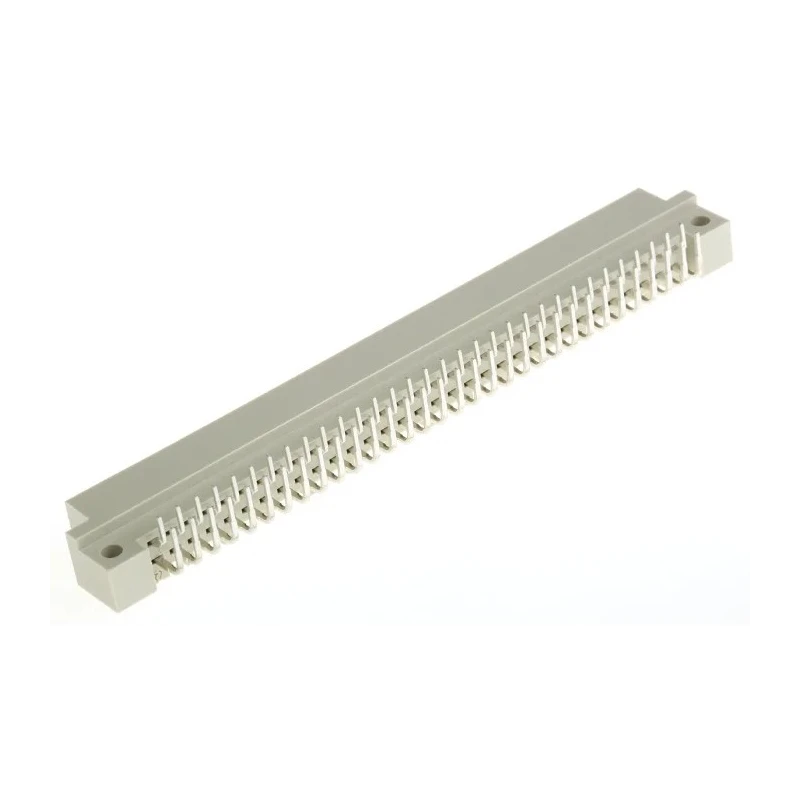

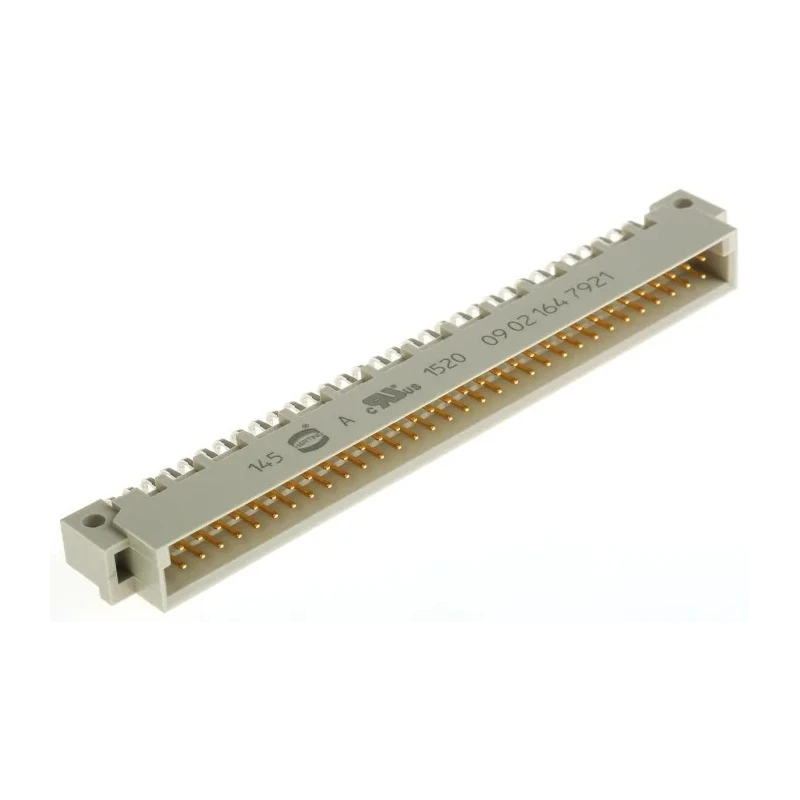

HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type B Solder Class C3 2 Row Male Right Angle Connector 09021647921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type B Solder Class C3 2 Row Male Right Angle Connector 09021647921

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Through Hole Type B Solder Class C3 2 Row Male Right Angle Connector 09021647921
Brand: HARTING
SKU: 160472
Price: 5.87 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Type B
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B

Key Features

This connector features 64 contacts arranged in 2 rows with a 2.54 mm pitch.
It supports a maximum current of 2A per contact, suitable for various PCB applications.
The connector mounts through hole and has a right angle orientation for optimal PCB layout.
Contact plating is gold over nickel, enhancing electrical conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 125°C, accommodating harsh environments.
Constructed from polybutylene terephthalate housing and copper alloy contacts for durability.
Termination type is solder, ensuring a strong and stable connection.
This connector complies with DIN 41612 series specifications and offers a maximum contact resistance of 20 mΩ.

Product Description

HARTING 09021647921 DIN 41612 64 Way 2.54 mm Pitch Through Hole Type B Solder Class C3 2 Row Male Right Angle Connector is engineered for PCB applications requiring dependable signal connectivity. Rated at 2A maximum current per contact and designed with a robust polybutylene terephthalate housing, this connector guarantees long-lasting performance.

The 64 contacts are arranged in two rows with a solder termination method and a fine 2.54 mm pitch, providing precise and efficient signal transmission. Its right angle mount type is ideal for space-constrained PCB layouts.

Featuring gold over nickel-plated copper alloy contacts, this connector offers excellent conductivity and corrosion resistance. It operates reliably in extreme temperature environments, from -55°C up to 125°C, meeting demanding industrial and electronic applications.

Class C3 rating ensures high-quality performance, with a maximum contact resistance of 20 mΩ for minimal signal loss. The connector is suited for electronic, industrial, manufacturing, and automation applications where reliable backplane and rack connections are critical.

This connector features 64 contacts arranged in 2 rows with a 2.54 mm pitch. It supports a maximum current of 2A per contact, suitable for various PCB applications. The connector mounts through hole and has a right angle orientation for optimal PCB layout.

Contact plating is gold over nickel, enhancing electrical conductivity and corrosion resistance. Operating temperature ranges from -55°C to 125°C, accommodating harsh environments. Constructed from polybutylene terephthalate housing and copper alloy contacts for durability.

Termination type is solder, ensuring a strong and stable connection. This connector complies with DIN 41612 series specifications and offers a maximum contact resistance of 20 mΩ. Class C3 performance rating ensures reliable signal integrity for demanding industrial uses.

This product is manufactured in Germany, assuring high standards of quality and precision.
