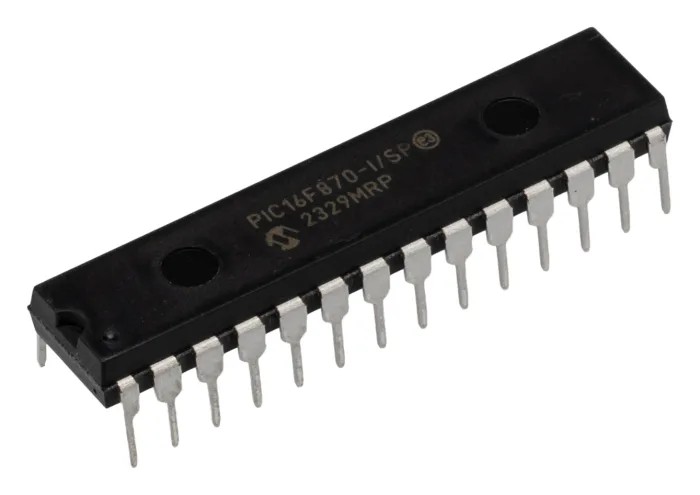

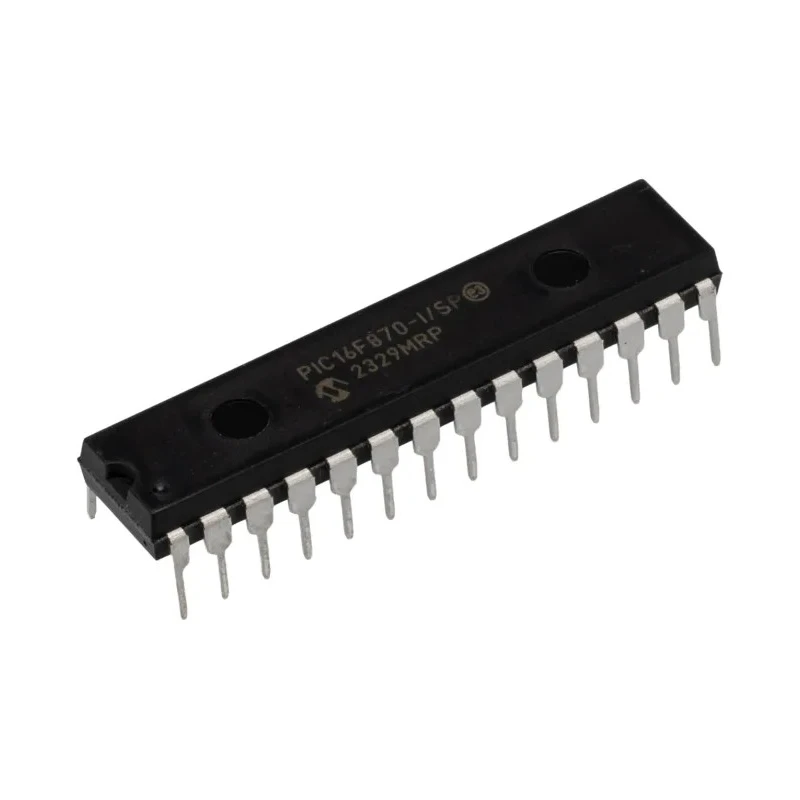

Microchip PIC16F870-I/SP 8-bit PIC Microcontroller, 20 MHz, 3.5kB Flash, 28-Pin SPDIP, 5 x 10-Bit ADC, 22 I/Os

The Microchip PIC16F870-I/SP is an 8-bit PIC microcontroller designed to deliver robust performance and flexibility for embedded control and automation systems. Based on Microchip’s mid-range core with a Reduced Instruction Set Computing (RISC) architecture, this device achieves efficient processing while maintaining low power operation.

Operating at a maximum clock frequency of 20 MHz, the PIC16F870-I/SP supports demanding real-time applications. With 3.5kB of Flash program memory, 128 bytes of RAM, and 64 bytes of EEPROM, it is well-suited for compact, code-rich operation. The 28-pin SPDIP package offers ease of integration into standard through-hole PCBs, enabling rapid prototyping and production implementation.

The microcontroller provides 22 versatile I/O pins for digital input and output, along with five 10-bit analog-to-digital converter (ADC) channels for precise analog signal interfacing - ideal for sensor-rich designs. Communication interfaces include a Serial Communication Interface (SCI) and a Universal Synchronous Asynchronous Receiver Transmitter (USART), facilitating seamless connection to other peripherals and systems. Programmable features such as power-on reset (POR), brown-out reset (BOR), and a watchdog timer (WDT) ensure reliable, fail-safe operation in challenging environments.

Three integrated timers (two 8-bit, one 16-bit) support high-resolution timing and pulse width modulation (PWM) applications. The microcontroller operates reliably across an industrial temperature range from -40°C to 85°C, and supports supply voltages from 2V to 5.5V, enabling use in a wide variety of power regimes.

The compact form factor, advanced hardware stack, and powerful instruction set make the PIC16F870-I/SP an excellent choice for industrial automation, building control, instrumentation, consumer electronics, data acquisition, and educational projects that require robust processing and flexible interfacing capabilities.

This microcontroller is part of Microchip's versatile PIC16F870/871 family, renowned for ease of in-circuit programming and debugging support. The integrated 10-bit ADC channels support multiple analog sensors, while the RISC instruction set optimizes code execution efficiency. With a range of peripherals, the device is tailored for industrial, laboratory, and embedded system markets.

Explore more microcontrollers and electronic components from Microchip and other leading brands in the Microcontroller category on EnvMart for your next engineering project.
