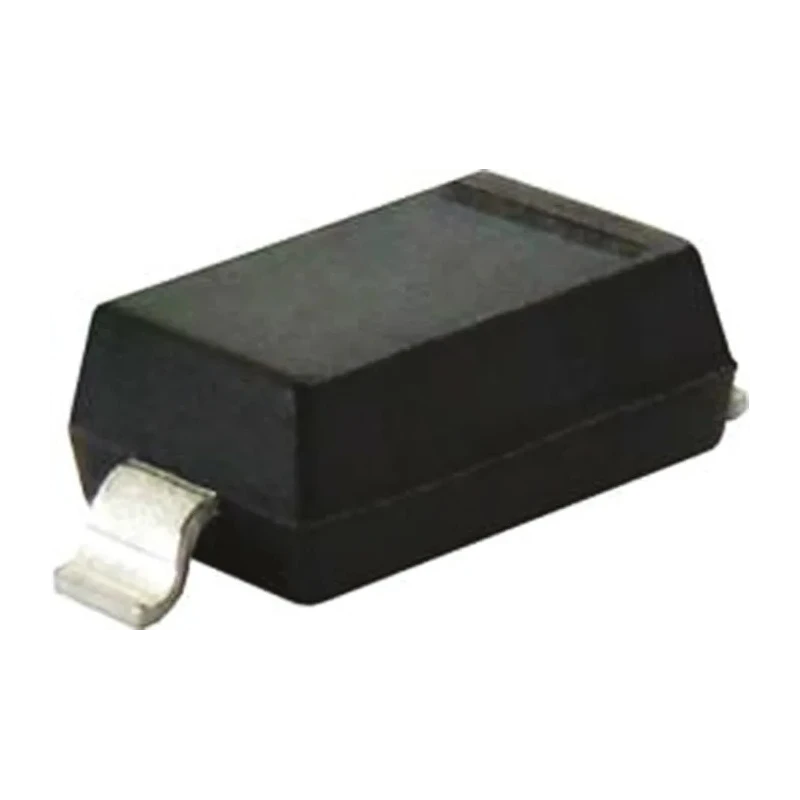

Vishay 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-123 BAT54W-E3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-123 BAT54W-E3-08

Name: Vishay 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-123 BAT54W-E3-08
Brand: Vishay
SKU: 376258
Price: 0.07 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.25mm
Length	2.85mm
Model	BAT54W-E3-08
Width	1.7mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	125°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns

Key Features

Maximum continuous forward current rating of 200 mA ensures suitability for low current applications.
Peak reverse repetitive voltage of 30 V allows operation under moderate reverse voltages.
Package type SOD-123 for compact surface mounting on printed circuit boards.
Extremely fast switching with peak reverse recovery time of 5 nanoseconds enhances efficiency.
Operating temperature range from -55°C to 125°C supports diverse industrial environments.
Low maximum forward voltage of 800 mV contributes to reduced power loss.
Complies with automotive standard AEC-Q101, suitable for automotive electronics.
Compact physical dimensions with length 2.85 mm, width 1.7 mm, and height 1.25 mm.

Product Description

Vishay BAT54W-E3-08 is a high-performance Schottky diode designed for surface mount applications requiring fast switching and low power dissipation. It features a 2-pin SOD-123 package, making it ideal for compact electronic circuits in industrial, automotive, and consumer electronics sectors.

This diode offers a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage rating of 30 V, suitable for low-voltage rectification tasks and protection circuits. Its low forward voltage drop of 800 mV reduces conduction losses, making the diode energy efficient.

The device excels in fast switching applications with a peak reverse recovery time of only 5 nanoseconds, which minimizes switching noise and enhances signal integrity in high-frequency circuits.

Operating temperature spans from -55°C to 125°C, ensuring reliable function across a wide range of thermal environments including automotive conditions where it complies with AEC-Q101 standards.

Physically, the diode is compact with a length of 2.85 mm, width of 1.7 mm, and height of 1.25 mm, facilitating high-density mounting on printed circuit boards. Maximum continuous forward current of 200 mA. Peak reverse repetitive voltage of 30 V.

Surface mount package type SOD-123. Fast switching with 5 ns peak reverse recovery time. Low forward voltage of 800 mV. Wide operating temperature range: -55°C to 125°C. Automotive grade with AEC-Q101 certification. Compact size suitable for dense PCB layouts.

Peak non-repetitive forward surge current up to 600 mA. Manufactured in China with semiconductor quality.

This Schottky diode is ideal for use in power rectifiers, switching power supplies, voltage clamping, and automotive electronic circuits. Vishay’s semiconductor diode products offer dependable performance for demanding industrial and commercial applications. Browse more from the Schottky Diodes category on EnvMart for complementary components.
