Vishay 200 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF20

Free Delivery in India | Lowest Global Shipping Charges

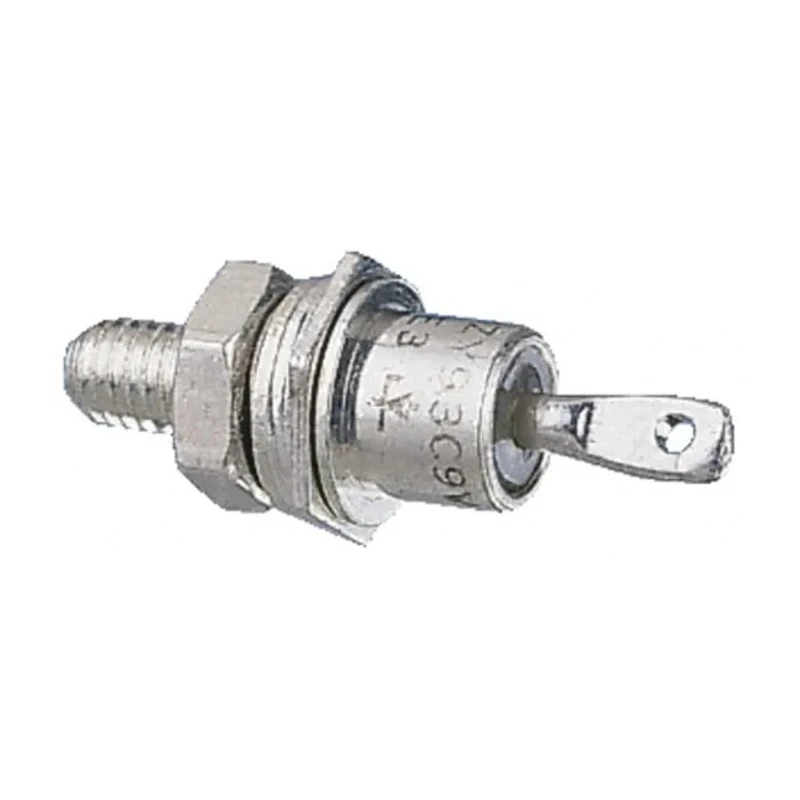

Vishay 200 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF20

Name: Vishay 200 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF20
Brand: Vishay
SKU: 376766
Price: 14.13 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.35mm
Brand	Vishay
Height	17.35mm
Length	36.5mm
Model	VS-85HF20
Mount Type	Screw
Series	VS-85HF(R)
Maximum Operating Temperature	125°C
Package Type	DO-203AB
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	85A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Stud Cathode
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.4kA
Maximum Forward Voltage Vf	1.75V
Peak Reverse Recovery Time trr	500ns

Key Features

Maximum continuous forward current of 85 amperes ensures robust operation.
Peak reverse repetitive voltage of 200 volts supports high voltage applications.
Fast recovery time of 500 nanoseconds optimizes switching performance.
Stud cathode diode configuration provides easy mounting and connection.
Maximum forward voltage of 1.75 volts minimizes power loss.
Wide operating temperature range from -40°C to 125°C for reliable use.
Peak non-repetitive forward surge current of 1.4 kiloamperes allows tolerance of transient surges.
Compliant with no automotive or special industry approvals, suitable for general use.

Product Description

Vishay VS-85HF20 is a fast recovery diode designed for high efficiency power rectification with a maximum voltage rating of 200 V and continuous forward current of 85 A. Housed in a durable 2-pin DO-203AB package, this diode provides excellent switching performance with a peak reverse recovery time of 500 ns. The stud cathode configuration ensures reliable mechanical and electrical connection for industrial and commercial power electronics applications.

This diode features a low maximum forward voltage drop of 1.75 V to minimize conduction losses and supports surge handling capability of 1.4 kA peak non-repetitive forward current. It operates reliably within a wide temperature range of -40°C to 125°C, making it suitable for rugged environments.

The compact physical footprint, with a height and diameter of 17.35 mm and length of 36.5 mm, allows for space-efficient designs in power supplies, converters, inverters, and other semiconductor-based industrial equipment.

Maximum continuous forward current of 85 amperes. Peak reverse repetitive voltage of 200 V. Fast recovery type for reduced switching losses. Stud cathode diode configuration. 2 pins in DO-203AB package. Peak reverse current of 20 mA.

Operating temperature range from -40°C to 125°C. Peak non-repetitive forward surge current of 1.4 kA. Maximum forward voltage drop of 1.75 V. Peak reverse recovery time of 500 ns. Compact height and diameter of 17.35 mm each; length of 36.5 mm.

Ideal for industrial electronics, power management systems, laboratory electronics, and automotive applications where fast recovery diodes enhance efficiency. Vishay's semiconductor products are renowned for their quality and reliability in harsh operating conditions.

Explore Vishay and similar brands in our semiconductor diode selection to find the optimal component for your electronic circuit needs.
