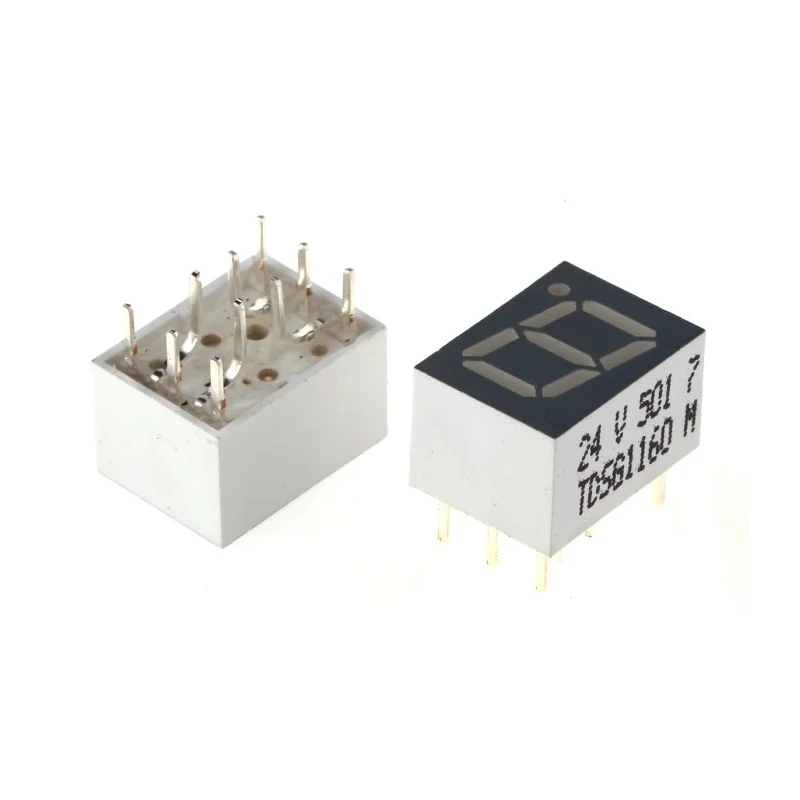

Vishay 1 7 Segment LED Display Cathode Green 6mcd Right Side 7mm TDSG1160
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Vishay |
| Model | TDSG1160 |
| Mount Type | Through Hole |
| Character height | 7mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.4mm |
| External Height | 6mm |
| Power Dissipation | 400mW |
| Luminous Intensity | 6mcd |
| Standards/Approvals | EN, IEC, CE, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 708-5216Brand: VishayManufacturers Part No.: TDSG1160 |
| LED Colour | Green |
| Dominant Wavelength | 575nm |
| Colour of Face | Grey |
| Forward Voltage | 2.4V |
| Forward Current | 17mA |
| Number of Characters | 1 |
| Character Width | 4.7mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The LED display features a character height of 7mm and width of 4.7mm.
- It employs a cathode common connection and is mounted through hole.
- The display has an external width of 7.4mm and height of 6mm for easy integration.
- Designed for operation from -40°C to 85°C, it supports a forward voltage of 2.4V at 17mA.
- The luminous intensity is 6mcd providing clear green illumination.
- Power dissipation is rated at 400mW ensuring energy efficiency.
- The decimal point orientation is on the right side, suitable for various display applications.
- The face color of the display is grey compliant with EN, IEC, CE, and RoHS standards.
Product Description
Vishay TDSG1160 is a high-quality 1-character 7 segment LED display designed for electronic components, power & connectors, and display module applications. Featuring a green LED color with a dominant wavelength of 575nm, it provides bright and clear indication suitable for industrial and commercial use.
The cathode common connection and through-hole mounting ensure reliable electrical and mechanical integration into circuit boards. With a character height of 7mm and width of 4.7mm, plus an external dimension of 7.4mm width and 6mm height, it fits compact display modules.
This LED display is rated for a forward voltage of 2.4V, forward current of 17mA, and power dissipation of 400mW, offering energy efficiency and stability under operation temperatures ranging from -40°C to +85°C. The decimal point is positioned on the right side for improved readability in numeric displays.
The grey face color and compliance with EN, IEC, CE, and RoHS standards guarantee quality and environmental safety, making it suitable for industrial automation systems, instrumentation, digital panels, and other commercial electronic displays.
The character size and form factor enable use in compact display panels. High luminous intensity of 6mcd ensures visibility in various lighting conditions. Robust design suitable for harsh operating environments with wide temperature tolerance.
Common cathode configuration simplifies wiring in multi-digit setups. Through-hole mount offers stable mechanical fixture within PCBs. The product supports industrial, laboratory, and manufacturing display applications. Certified compliant with international norms ensuring reliability and safety.
This Vishay TDSG1160 LED Display is part of a broad range of electronic components well suited for projects requiring precise and durable numeric displays. Explore more display modules and related components within the Electronics & Electricals category on EnvMart for your application needs.
