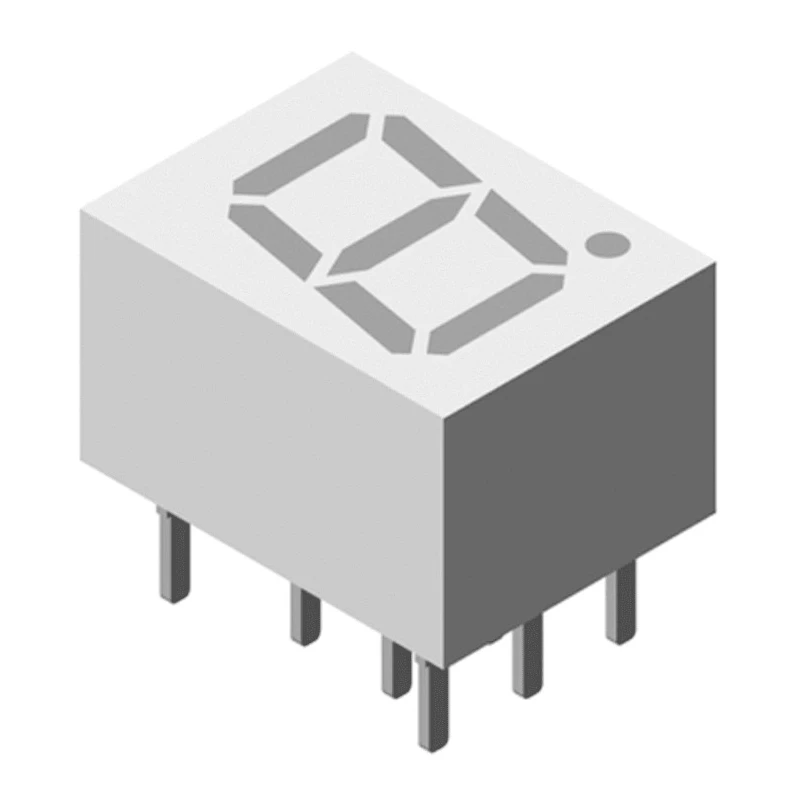

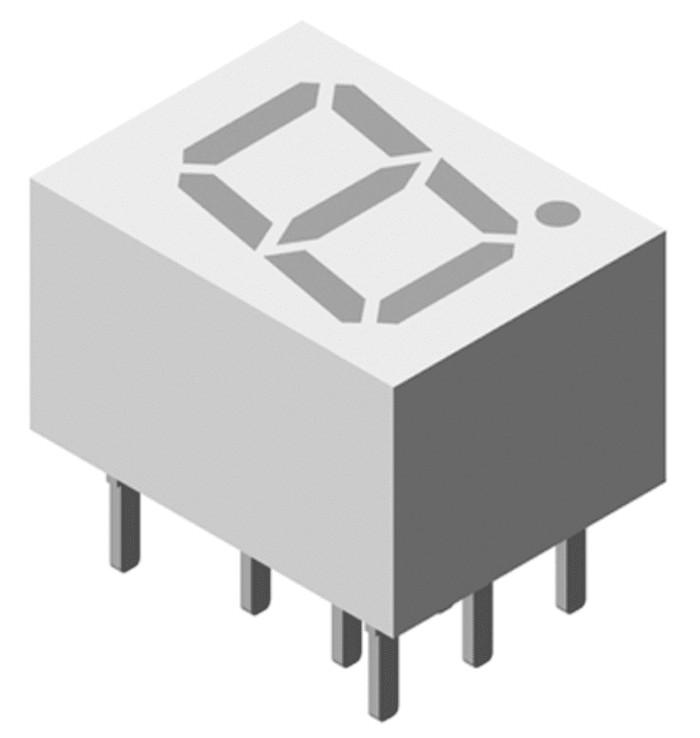

Vishay 1 7 Segment LED Display Cathode Red 10mm Character Height Through Hole Mount TDSR0760

Vishay TDSR0760 1 7 Segment LED Display is designed for industrial and electronic applications requiring clear numeric display with low power consumption. With a robust operating temperature range from -40°C to 85°C, this single digit LED display integrates a cathode common connection and low current series construction to ensure efficient and reliable operation.

Featuring a bright red LED color with a dominant wavelength of 640 nm and a luminous intensity of 2.2 mcd, it delivers excellent visibility in various environments. The 7-segment design supports single character display with a character height of 10 mm and width of 6 mm. Mechanical dimensions include an external width of 9.9 mm and height of 6 mm and it employs a through hole mount type for secure mounting on circuit boards.

This display is ideal for electronic instrumentation, measurement devices, and control panels in industrial, laboratory, and manufacturing contexts. The cathode common connection simplifies circuit design, while its right side decimal orientation adds to its usability in numeric displays.

The display provides a robust, low-current LED option for energy efficient electronic designs. Its environmental compliance with RoHS Directive 2002/95/EC and WEEE 2002/96/EC ensures it meets regulatory standards for hazardous substances and waste management.

Ideal for use in instrumentation, automation controls, and HVAC display feedback systems. Compact size and through hole mount make it adaptable for various electronic assemblies and repair tasks. The grey face enhances contrast for better digit legibility under diverse lighting conditions.
