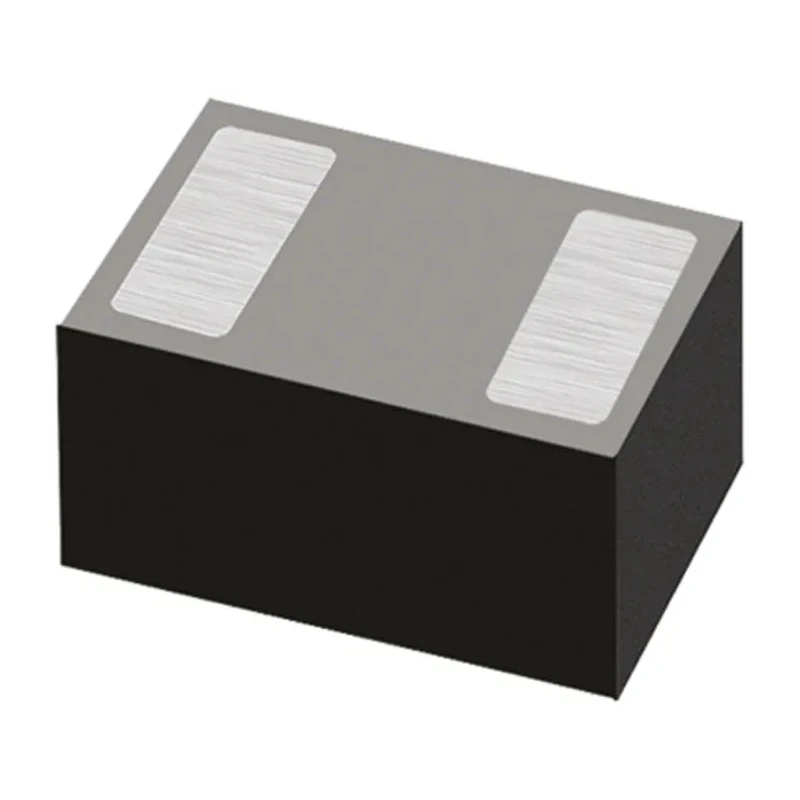

Nexperia Schottky Diode 40 V 120 mA Surface Mount 2-Pin SOD-882 BAS40L,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 40 V 120 mA Surface Mount 2-Pin SOD-882 BAS40L,315

Name: Nexperia Schottky Diode 40 V 120 mA Surface Mount 2-Pin SOD-882 BAS40L,315
Brand: Nexperia
SKU: 376702
Price: 0.07 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.5mm
Length	1.02mm
Model	BAS40L,315
Width	0.62mm
Mount Type	Surface
Series	BAS40L
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	120mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	200mA
Maximum Forward Voltage Vf	380mV
onsemi 40 V 200 mA Schottky Barrier Diode Schottky 2-Pin SOD-923Brand	onsemi

Key Features

This diode features a maximum continuous forward current of 120 mA.
It provides a peak reverse repetitive voltage of 40 V with a single diode configuration.
The package type is ultra-small SOD-882 surface mount for space-saving electronics.
It operates reliably over a temperature range from -65°C to 150°C.
The maximum forward voltage drop is 380 mV, enabling high efficiency in power-sensitive designs.
The device has a peak non-repetitive forward surge current of 200 mA.
Its peak reverse current is low at 10 μA, minimizing leakage current.
The diode complies with automotive standard AEC-Q101, ensuring quality and reliability in automotive and industrial environments.

Product Description

Nexperia BAS40L,315 is a Schottky diode designed for efficient switching and low forward voltage drop applications in industrial, automotive, and electronic circuits. It is provided in a small 2-pin SOD-882 surface mount package that supports high-density PCB assembly.

The diode supports a maximum continuous forward current of 120 mA and can withstand peak reverse voltages up to 40 V. Its low forward voltage of 380 mV minimizes power losses while operating within temperatures from -65°C to 150°C, making it suitable for harsh environments.

This Schottky diode features low leakage current, with a peak reverse current of just 10 μA, which helps improve circuit efficiency and reduce heat generation. It also supports a peak non-repetitive forward surge current of 200 mA.

The package measures only 1.02 mm in length, 0.62 mm in width, and 0.5 mm in height, allowing for compact design implementations in consumer electronics, industrial controls, power supplies, and automotive electronics. The component meets the stringent automotive standard AEC-Q101 ensuring high reliability.

Maximum continuous forward current of 120 mA. Peak reverse voltage of 40 V. Ultra-compact 2-pin SOD-882 surface mount package. Operating temperature range from -65°C to 150°C. Low maximum forward voltage of 380 mV. Peak non-repetitive forward surge current: 200 mA.

Low leakage peak reverse current: 10 μA. Automotive standard compliant: AEC-Q101. Compact dimensions 1.02 x 0.62 x 0.5 mm.

This diode is ideal for applications in industrial, automotive, and consumer electronics where efficiency, size, and reliability are critical. It is designed for surface-mount technology (SMT) assembly and can be used in power rectification, protection circuits, signal demodulation, and switching.

Explore more semiconductor components and Schottky diode solutions at EnvMart for your electronic design and manufacturing needs.
