Vishay 30 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-123 Package BAT54W-E3-08

Free Delivery in India | Lowest Global Shipping Charges

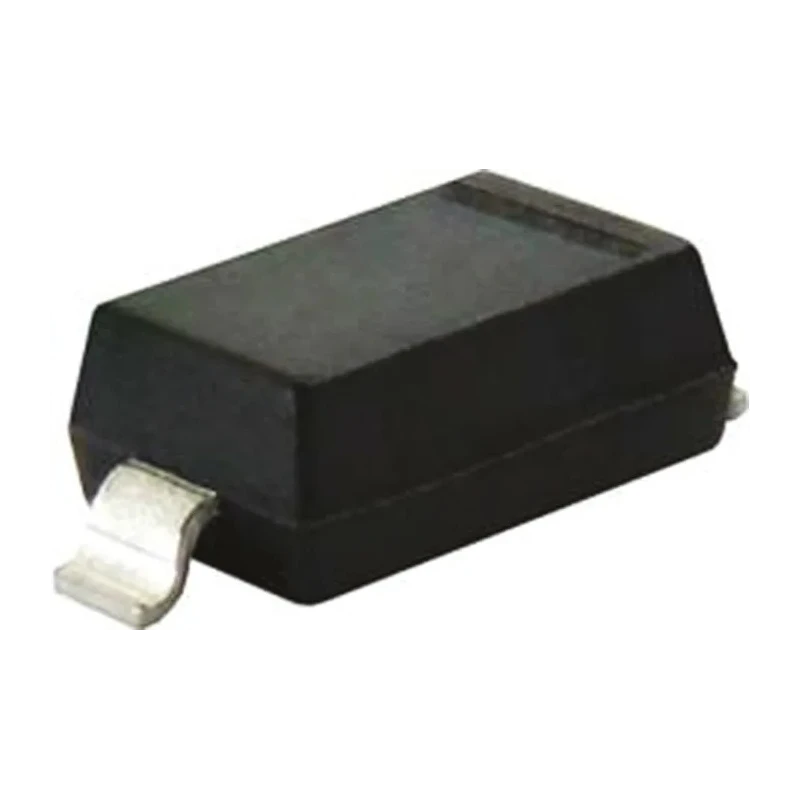

Vishay 30 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-123 Package BAT54W-E3-08

Name: Vishay 30 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-123 Package BAT54W-E3-08
Brand: Vishay
SKU: 376253
Price: 0.07 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.25mm
Length	2.85mm
Model	BAT54W-E3-08
Width	1.7mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	125°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns
onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NTS260SFGBrand	onsemi

Key Features

Small signal Schottky diode for fast switching applications.
Surface mount 2-pin SOD-123 package for easy PCB integration.
Maximum continuous forward current of 200 mA ensures reliable operation.
Peak reverse repetitive voltage rated at 30 V for voltage tolerance.
Very low forward voltage drop of 800 mV minimizes power loss.
Peak reverse recovery time of 5 ns supports high-speed switching.
Operates reliably within a temperature range of -55°C to 125°C.
AEC-Q101 automotive standard compliant for enhanced quality assurance.

Product Description

Vishay BAT54W-E3-08 is a highly reliable Schottky diode designed for surface mount applications requiring fast switching and low power loss. It features a 2-pin configuration housed in a compact SOD-123 package making it suitable for automated assembly on printed circuit boards.

This diode supports a maximum continuous forward current of 200 mA and can handle a peak reverse repetitive voltage of 30 V. Its very low forward voltage drop of 800 mV results in efficient operation with reduced heat dissipation.

The diode’s peak reverse recovery time of only 5 nanoseconds allows rapid switching speeds critical in power supply, signal processing, and protection circuits. It is engineered to operate over a minimum temperature of -55°C up to a maximum of 125°C, ensuring durability under harsh conditions.

Designed to meet the AEC-Q101 automotive standard, this device is ideal for automotive, industrial instrumentation, and telecommunications applications that demand high quality and reliability. The diode configuration is single, providing a consistent electrical performance in low voltage rectification and switching duties.

Small signal Schottky Diode suitable for fast switching and low power loss applications. Compact 2-pin SOD-123 surface mount package. 200 mA maximum continuous forward current. 30 V peak reverse repetitive voltage rating.

Low forward voltage drop of 800 mV reduces power dissipation. Fast peak reverse recovery time of 5 nanoseconds. Operating temperature range from -55°C to 125°C. Meets automotive standard AEC-Q101 for reliable performance.

This diode is commonly used in power supplies, automotive electronics, high-speed switching circuits, and telecommunications equipment. Its compact size and excellent switching characteristics make it a versatile component in discrete semiconductor applications.

Discover more semiconductor and diode products in the Electronics & Electricals category at EnvMart to find components that match your project requirements.
