Vishay 60 V 2 A Schottky Diode Through Hole 2-Pin DO-204AC SB260-E3/54

Free Delivery in India | Lowest Global Shipping Charges

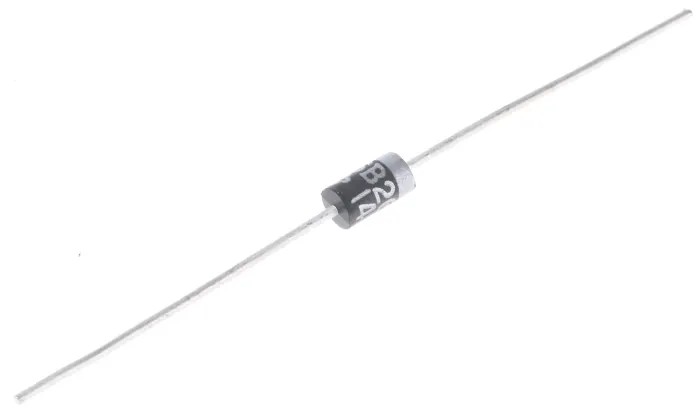

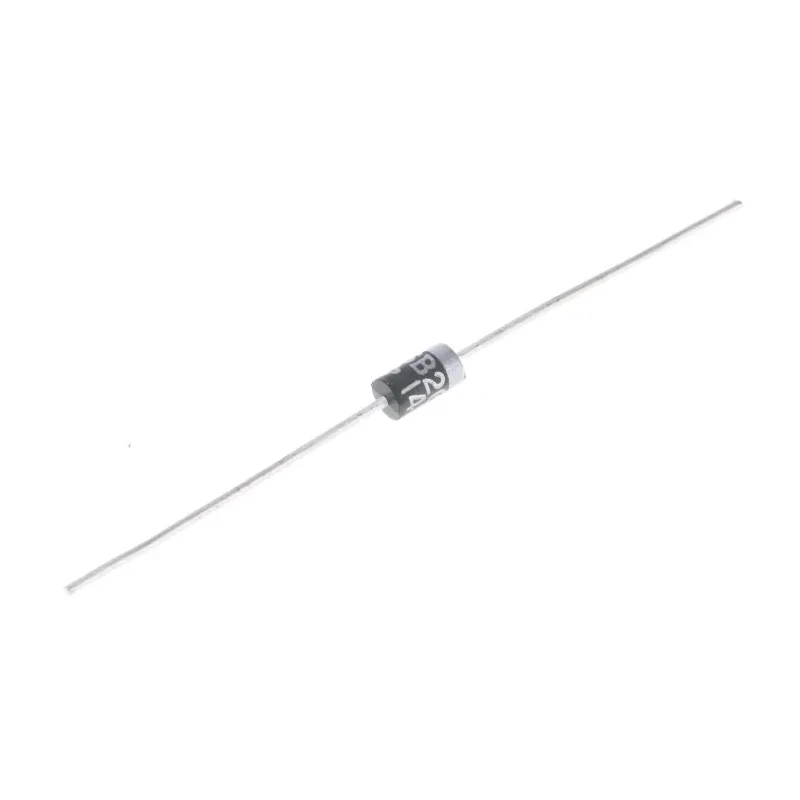

Vishay 60 V 2 A Schottky Diode Through Hole 2-Pin DO-204AC SB260-E3/54

Name: Vishay 60 V 2 A Schottky Diode Through Hole 2-Pin DO-204AC SB260-E3/54
Brand: Vishay
SKU: 375739
Price: 0.3 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	3.6mm
Brand	Vishay
Length	7.6mm
Model	SB260-E3/54
Mount Type	Through Hole
Series	SB260
Maximum Operating Temperature	150°C
Case	DO-204AC (DO-15)
Package Type	DO-204AC
Minimum Operating Temperature	-65°C
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	8μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Maximum Forward Voltage Vf	680mV

Key Features

Features guardring for overvoltage protection.
Ensures very small conduction losses.
Extremely fast switching capability for efficient operation.
Capable of high forward surge current up to 60A.
Solder dip maximum temperature of 275 °C for 10 seconds.
Solderable matte tin plated leads per industrial standards.
Suitable for low voltage high frequency inverters and DC/DC converters.
Compact DO-204AC case measuring 7.6mm length and 3.6mm diameter.

Product Description

Vishay SB260-E3/54 Schottky Diode Through Hole 2-Pin DO-204AC is a reliable discrete semiconductor component optimized for power electronic applications. It provides a maximum continuous forward current of 2 A and can sustain peak reverse repetitive voltage of 60 V, ideal for high-frequency inverter circuits, freewheeling diodes, DC/DC converters, and polarity protection.

This diode features a dedicated guardring for overvoltage protection and very small conduction losses, contributing to its extremely fast switching characteristics. It supports high forward surge current up to 60 A and operates efficiently across a wide temperature range from -65°C to 150°C.

The case is a DO-204AC (also known as DO-15) package with a compact length of 7.6 mm and diameter of 3.6 mm. The terminals are matte tin plated leads offering excellent solderability compliant with J-STD-002 and JESD 22-B102 standards. The device meets RoHS compliance and features a commercial grade E3 suffix per JESD 201 class 1A whisker test.

Typical applications include power and signal rectification in low voltage high frequency circuits, DC/DC converters, polarity protection, and freewheeling diode roles. It is designed without automotive certifications but provides robust performance in industrial and electronic component setups.

Features guardring for overvoltage protection. Very small conduction losses enhance efficiency. Extremely fast switching suitable for high-frequency applications. High forward surge current rating improves durability. Solder dip up to 275 °C with 10 seconds max exposure.

Matte tin plated leads ensure reliable soldering connections. Compact DO-204AC package ideal for space-constrained designs. Wide operating temperature range supports diverse environments. RoHS compliant, commercial grade quality assurance.

Suitable for inverters, converters, and polarity protection circuits.

Explore the Vishay category for advanced semiconductor components tailored to electronics manufacturing, laboratory projects, industrial automation, and power electronics design. Browse EnvMart for reliable Schottky Diodes & Rectifiers for your applications.

Explore more products in our Schottky Diodes & Rectifiers category.
