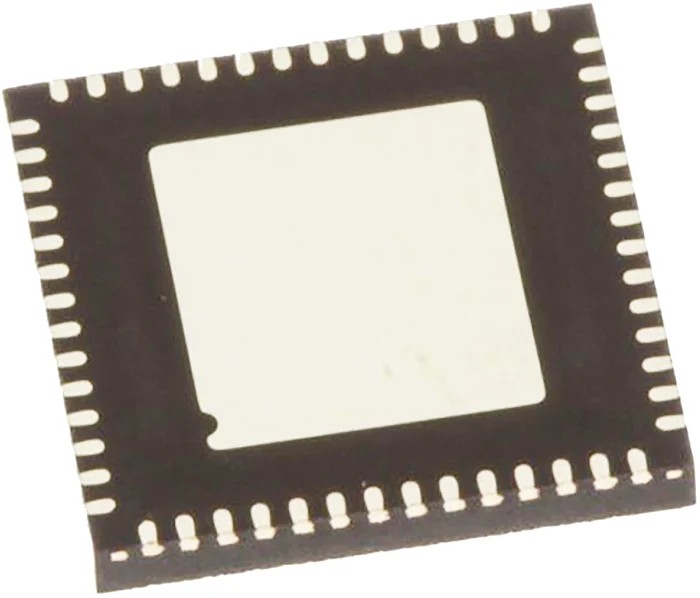

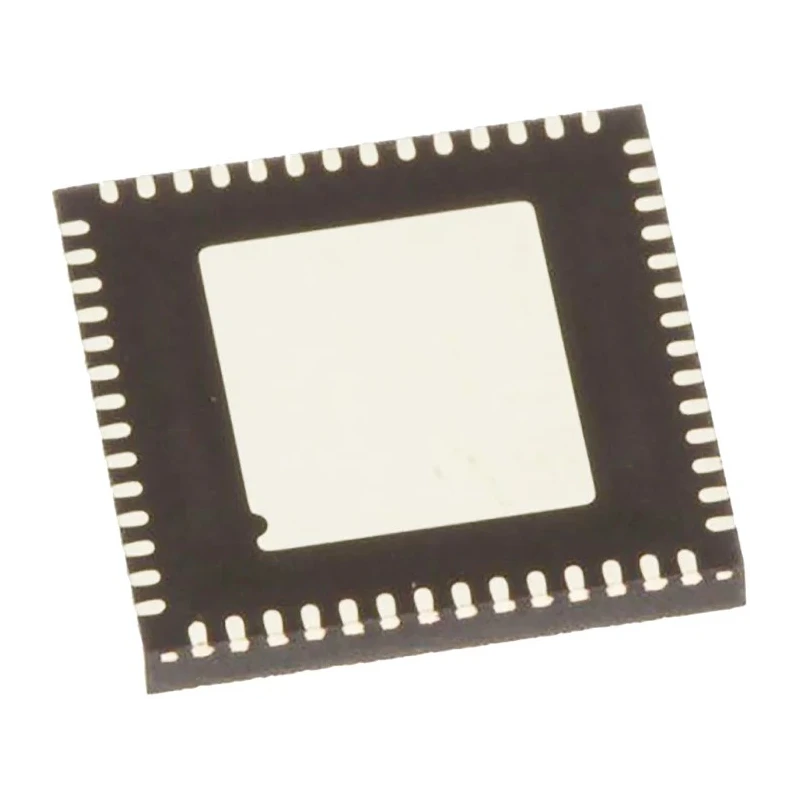

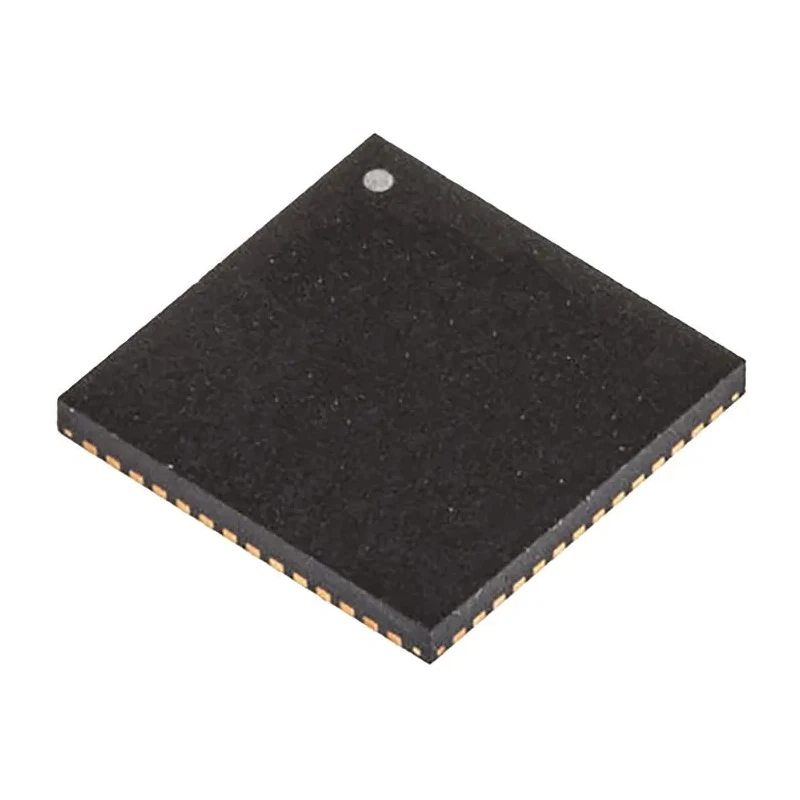

Microchip 56-Pin QFN Ethernet Controller 3.3 V 1000 Mbps USB Full Duplex/Half Duplex LAN7500-ABZJ

Free Delivery in India | Lowest Global Shipping Charges

Microchip 56-Pin QFN Ethernet Controller 3.3 V 1000 Mbps USB Full Duplex/Half Duplex LAN7500-ABZJ

Name: Microchip 56-Pin QFN Ethernet Controller 3.3 V 1000 Mbps USB Full Duplex/Half Duplex LAN7500-ABZJ
Brand: Microchip
SKU: 373760
Price: 10.07 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	8mm
Model	LAN7500-ABZJ
Width	8mm
Mount Type	Surface
Maximum Operating Temperature	70°C
Package Type	QFN
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	USB
Pin Count	56
Maximum Supply Voltage	3.3V
Maximum Data Rate	1000Mbps
Loopback Mode	Internal, External
Standard Supported	IEEE, IEEE 802.3u, IEEE 802.3

Key Features

Supports full duplex and half duplex communication modes.
Compliant with IEEE, IEEE 802.3u, and IEEE 802.3 standards.
Features internal and external loopback modes for testing.
Compact 8 mm×8 mm×1 mm QFN mount type for surface installation.
Operates within a temperature range of 0°C to 70°C.
Offers a maximum data rate of 1000 Mbps.
Designed for USB interface type supporting USB 2.0 standard.
56-pin configuration providing flexible connectivity options.

Product Description

Microchip LAN7500-ABZJ Ethernet Controller in a 56-pin QFN package provides a USB 2.0 to 10/100/1000 Mbps Ethernet interface for embedded connectivity applications. It operates at a supply voltage of 3.3 V and supports both full duplex and half duplex communication modes.

This controller complies with IEEE, IEEE 802.3u, and IEEE 802.3 networking standards, ensuring compatibility with a wide range of Ethernet networks. Loopback modes, both internal and external, are integrated to facilitate robust testing and diagnostics during development and deployment.

The compact surface mount QFN package measures 8 mm by 8 mm with a height of 1 mm, making it ideal for space-constrained electronic designs. It operates reliably within a temperature range of 0°C to 70°C, suitable for typical industrial and commercial environments.

Designed primarily for USB interface applications, the LAN7500-ABZJ supports USB 2.0 for data communication, allowing seamless integration with USB-enabled host controllers. It features a 56-pin package to support necessary I/O signals and power supplies.

Supports full duplex and half duplex communication modes. Compliant with IEEE and Ethernet standards for reliable network performance. Internal and external loopback capabilities for comprehensive testing. Compact QFN package suitable for surface mounting in embedded systems.

Operating temperature suitable for industrial and commercial settings. High maximum data rate of up to 1000 Mbps. USB 2.0 interface simplifies integration with host controllers. 56-pin configuration ensures flexible and reliable connectivity.

Suitable for industrial, laboratory, and commercial electronics applications. Provides efficient and robust Ethernet communication in embedded designs.

This product is ideal for use in electronic components, power and connectors, semiconductors, and interface IC applications requiring Ethernet communication capabilities. It finds application in industrial machinery, laboratory equipment, manufacturing systems, and commercial electronic devices.
