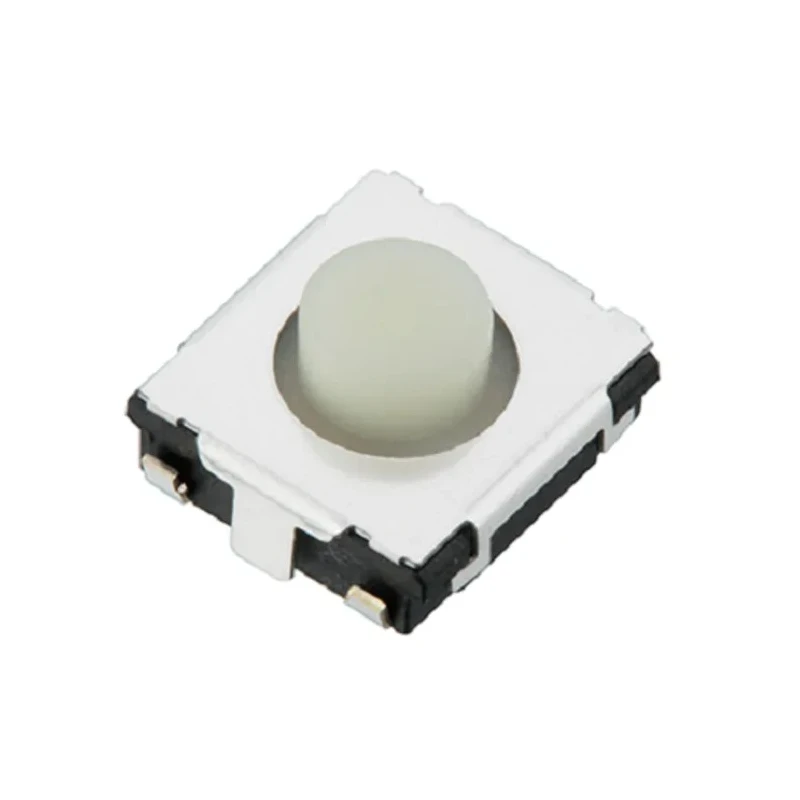

Panasonic White Tactile Switch Push Plate 3.8 mm SPST 20mA Surface EVQQ2P02W
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Model | EVQQ2P02W |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | White |
| Actuator Length | 3.8mm |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 1000000Cycles |
| Panasonic White Tactile Switch Push Plate, 3.8 mm, SPST 20mA, SurfaceBrand | Panasonic |
Key Features
- Features a single-pole single-throw (SPST) contact configuration.
- Terminal type is J Bend for surface mounting convenience.
- Actuator is a white straight push plate with 3.8 mm length.
- Designed for a mechanical life of 1,000,000 cycles ensuring durability.
- Operates with a contact current rating of 20 mA at 15 V DC resistive load.
- Maximum operating temperature of 70°C for reliable performance.
- Requires an operating force of 1.6 N for actuation.
- Non-illuminated actuator optimized for low-profile applications.
Product Description
Panasonic EVQQ2P02W White Tactile Switch Push Plate 3.8 mm SPST 20mA Surface is a compact SMD light touch switch designed with external dimensions of approximately 6.5 mm x 6.0 mm and a height of 1.8 mm. It features a push-on snap action switch operation with a single-pole single-throw (SPST) contact configuration.
The tactile switch offers reliable electrical ratings from 10 µA at 2 V DC up to 20 mA at 15 V DC resistive load, making it ideal for low power circuits. The actuator is a white push plate with a length of 3.8 mm and straight orientation, providing precise control and tactile feedback. This switch is surface mountable with J Bend terminal type ensuring ease of integration on PCBs.
Designed for durability, it supports a mechanical life of 1,000,000 cycles and requires an operating force of 1.6 N. It can operate in environments with temperatures ranging from - 40°C to +70°C, suitable for a wide range of industrial, electronic assembly, automotive audio system, and computer peripheral applications.
This switch is not illuminated and has no specific standards or approvals listed, but it is engineered for consistent performance. The product originates from Malaysia, reflecting high manufacturing standards.
SPST contact configuration for single circuit control. Push-on snap action switch operation with 1.6 N operating force. White push plate actuator, 3.8 mm in length and straight orientation. Surface mount design with J Bend terminals to facilitate PCB assembly.
Supports 20 mA contact current at 15 V DC resistive load. Maximum operating temperature is 70°C for stable switching. Durable mechanical life rated at 1,000,000 cycles ensures longevity.
This tactile switch is suited for various industrial, consumer electronics, automotive, and computer hardware applications, providing reliable push button control in compact form factor. Explore more Tactile Switches and switch components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features a single-pole single-throw (SPST) contact configuration, allowing for control of a single circuit.
The maximum operating temperature for this model is 70°C, ensuring reliable performance in various environments.
It is designed for a mechanical life of 1,000,000 cycles, providing durability for long-term use.
The switch requires an operating force of 1.6 N for actuation, allowing for light touch operation.
The actuator is a white push plate with a length of 3.8 mm and a straight orientation.
It operates with a contact current rating of 20 mA at a 15 V DC resistive load, making it suitable for low power circuits.
The switch features J Bend terminals, which facilitate surface mounting on printed circuit boards (PCBs).
This model operates with a push-on snap action, providing tactile feedback during use.
The external dimensions are approximately 6.5 mm x 6.0 mm with a height of 1.8 mm, making it compact for various applications.
This switch is suited for various applications including industrial, consumer electronics, automotive, and computer hardware.
The product originates from Malaysia, reflecting high manufacturing standards.
