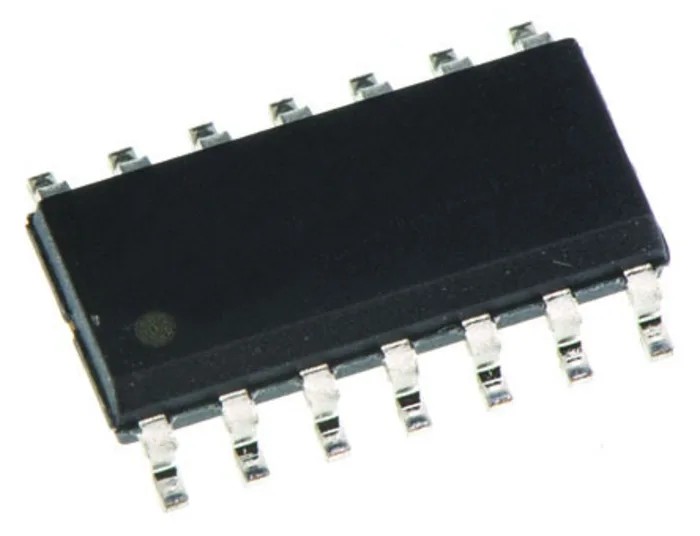

DiodesZetex 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC 74AHC00S14-13

DiodesZetex 74AHC00S14-13 is a 4 2-input NAND Schmitt trigger input logic gate housed in a 14-Pin SOIC surface mount package. It belongs to the 74AHC family of advanced high-speed CMOS devices designed by Diodes Inc. This logic IC is well suited for general-purpose digital logic applications requiring high speed and low power consumption.

This device offers four NAND gates with Schmitt trigger inputs, providing noise immunity and improved switching characteristics. It operates over a supply voltage range of 2.0V to 5.5V and can sink or source 8mA output current at 4.5V supply, making it versatile for various mixed voltage environments.

The maximum propagation delay time at CL is 9.5ns, ensuring fast switching for timing-critical circuits. Its output uses a push-pull configuration for efficient drive capability. The operating temperature range from -40°C to 125°C allows reliable performance in harsh environmental conditions.

The compact 14-pin SOIC package enables easy surface mount PCB assembly and space-saving designs. The device includes robust ESD protection exceeding JESD22 standards, enhancing device longevity and reliability in industrial and commercial electronics.

Four 2-input NAND gates with Schmitt trigger inputs for noise immunity. Wide operating voltage range: 2.0V to 5.5V. Fast maximum propagation delay of 9.5ns at CL. Push-pull output type with 8mA sink/source current capability.

Extended operating temperature range: -40°C to 125°C. Compact 14-pin SOIC surface mount package. Industry standard compliant ESD protection for enhanced durability. Ideal for general purpose high-speed logic applications.

This Logic Gate is widely used in electronic, industrial, and commercial equipment requiring reliable and fast digital logic operations. Suitable applications include digital signal processing, industrial automation controls, embedded systems, and consumer electronics.
