Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ22A

Free Delivery in India | Lowest Global Shipping Charges

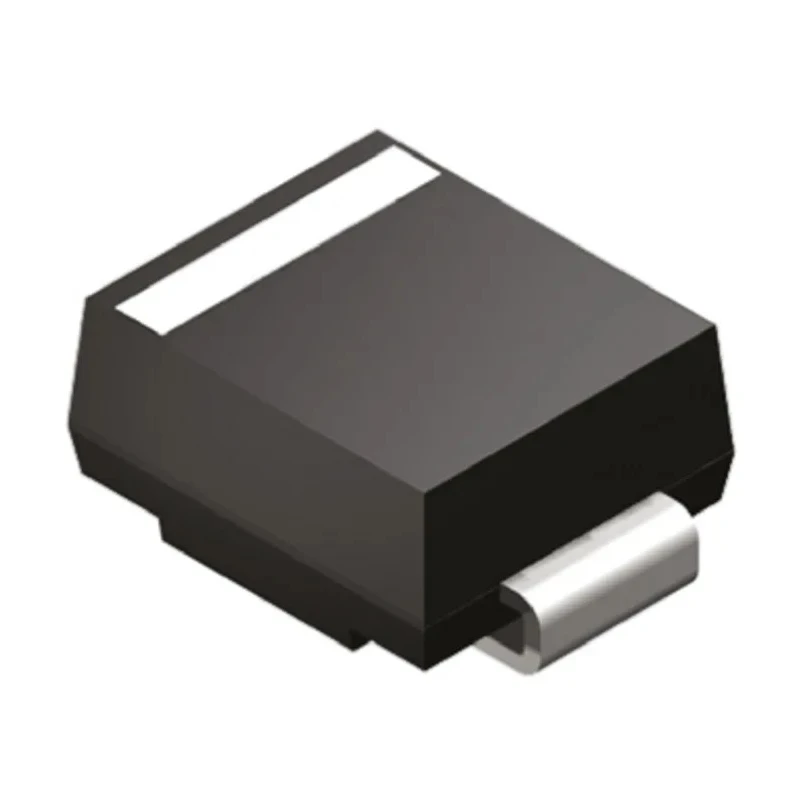

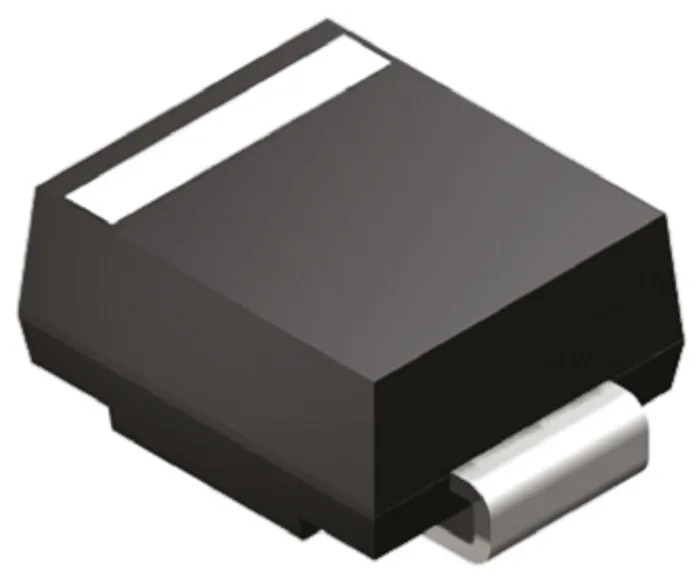

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ22A

Name: Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ22A
Brand: Taiwan Semiconductor
SKU: 373485
Price: 0.18 USD
Availability: InStock



Category TVS Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.45mm
Length	4.75mm
Model	SMBJ22A
Width	3.95mm
Mount Type	Surface
Series	SMBJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	35.5V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	24.4V
Maximum Reverse Stand-off Voltage Vwm	22V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	16.9A
Maximum Reverse Leakage Current	5μA

Key Features

Single diode configuration designed for uni-directional transient voltage suppression.
Package type is DO-214 suitable for surface mounting applications.
Minimum breakdown voltage of 24.4 V and maximum reverse stand-off voltage of 22 V.
Clamping voltage rating of 35.5 V ensures robust voltage surge protection.
Operating temperature ranges from -55°C to 150°C for reliable performance in harsh environments.
Maximum peak pulse current of 16.9 A with low maximum reverse leakage current of 5 μA.
Designed for electronic component applications requiring fast response and low incremental surge resistance.

Product Description

Taiwan Semiconductor SMBJ22A is a 1-element uni-directional transient voltage suppressor (TVS) diode rated for 600 W peak pulse power dissipation. This device comes in a 2-pin DO-214 surface mount package, providing excellent surge protection for sensitive electronic components.

Featuring a minimum breakdown voltage of 24.4 V and a maximum reverse stand-off voltage of 22 V, the SMBJ22A effectively clamps voltage transients up to 35.5 V. Its glass-passivated junction design allows for fast response times and low incremental surge resistance, making it suitable for various industrial, automotive, and commercial electronics applications.

The diode delivers a maximum peak pulse current of 16.9 A and operates reliably within a temperature range of -55°C to 150°C. Its compact physical dimensions (4.75 mm length, 3.95 mm width, and 2.45 mm height) make it ideal for space-constrained PCB layouts.

Applications include transient voltage suppression in power supplies, signal lines, and other electronic systems to protect against voltage surges and spikes. The SMBJ series offers robust and reliable protection solutions critical in semiconductor manufacturing, automotive electronics, HVAC controls, industrial automation, and telecommunications equipment.

Single diode, uni-directional configuration with 600 W peak pulse power capability. Surface mount DO-214 package optimized for modern PCB assembly. Voltage clamp and surge protection ensuring device and circuit safety. Wide operating temperature range suitable for harsh environments.

Compact size for flexible design integration and space saving. Low leakage current and fast response time enhance circuit reliability. Compliant with relevant industry standards and approvals. Explore more Taiwan Semiconductor TVS Diodes and related semiconductor devices at EnvMart for industrial and commercial use.
