onsemi Bridge Rectifier Single Phase 800 V 200 A Through Hole 4-Pin GBU8K

Free Delivery in India | Lowest Global Shipping Charges

onsemi Bridge Rectifier Single Phase 800 V 200 A Through Hole 4-Pin GBU8K

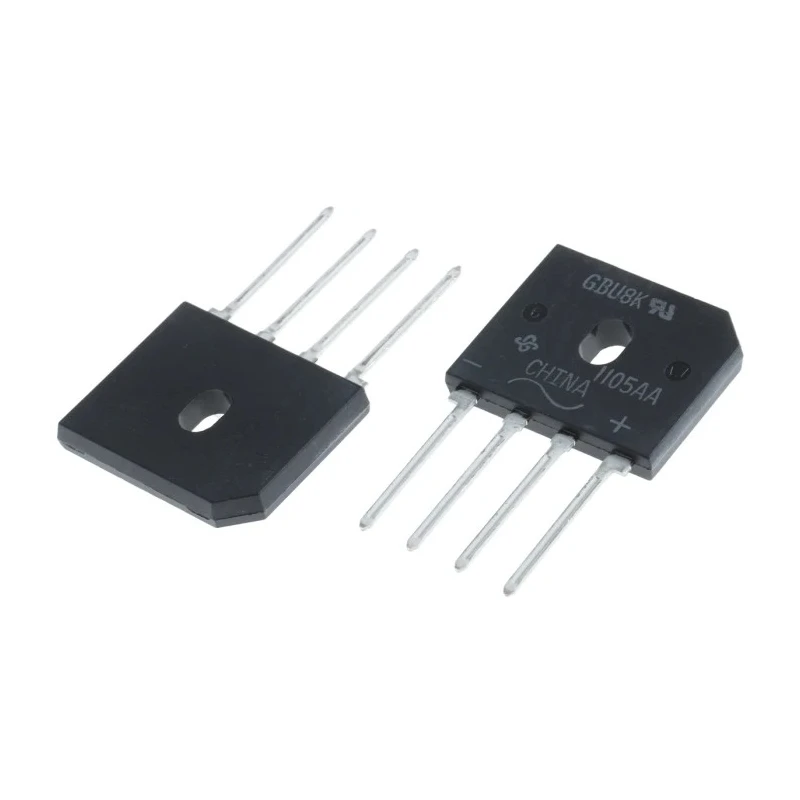

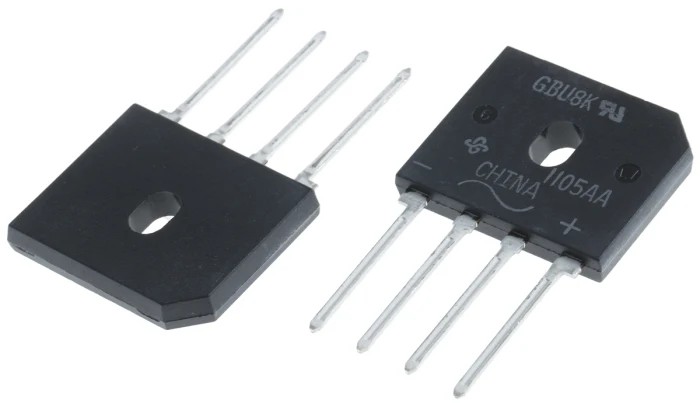

Name: onsemi Bridge Rectifier Single Phase 800 V 200 A Through Hole 4-Pin GBU8K
Brand: onsemi
SKU: 207422
Price: 1.2 USD
Availability: InStock



Category Bridge Rectifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	18.8mm
Length	22.3mm
Model	GBU8K
Width	3.56mm
Mount Type	Through Hole
Series	GBU8K
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V

Key Features

Designed for single-phase rectification applications.
High peak reverse repetitive voltage rating of 800 volts.
Forward current rating of 8 amps.
Capable of withstanding peak surge current up to 200 amps.
Operating temperature range from -55°C to 150°C.
Compact GBU package for ease of PCB mounting.
4-Pin configuration suitable for through-hole mounting.
Low peak forward voltage drop of 1 volt for efficient operation.

Product Description

onsemi GBU8K Bridge Rectifier is a single-phase, glass-passivated bridge rectifier designed for efficient single-in-line PCB mounting applications. It supports a peak reverse repetitive voltage of 800 V and a forward current of 8 A, making it suitable for power conversion, control, and rectification circuits in industrial and electronic equipment.

This bridge rectifier features a sturdy GBU package for through-hole mounting and a four-pin configuration ideal for PCB integration. It delivers a high peak non-repetitive forward surge current of 200 A, ensuring durability under transient load conditions. The device's operating temperature range allows it to function reliably between -55°C and 150°C, making it adaptable to various industrial environments.

The rectifier offers a low peak forward voltage drop of 1 V, enhancing overall circuit efficiency, and exhibits minimal leakage current with a peak reverse current of only 50 μA. With compact dimensions of 22.3 mm length, 3.56 mm width, and 18.8 mm height, it facilitates space-saving design in electronic assemblies.

Applications include power supply rectification, industrial equipment, and general electronics where a robust single-phase bridge rectifier is required. Its through-hole mount design and reliable electrical characteristics make it an optimal choice for manufacturing and automation industries requiring consistent performance and easy assembly.

Designed for single-phase rectification applications. High peak reverse repetitive voltage rating of 800 volts. Forward current rating of 8 amps. Capable of withstanding peak surge current up to 200 amps. Operating temperature range from -55°C to 150°C.

Compact GBU package for ease of PCB mounting. 4-Pin configuration suitable for through-hole mounting. Low peak forward voltage drop of 1 volt for efficient operation. Peak reverse current is as low as 50 microamperes. Compact size with dimensions: Length 22.3 mm, Width 3.56 mm, Height 18.8 mm.
