Taiwan Semiconductor Bridge Rectifier 400 V 30 A 4-Pin Single MBS4

Free Delivery in India | Lowest Global Shipping Charges

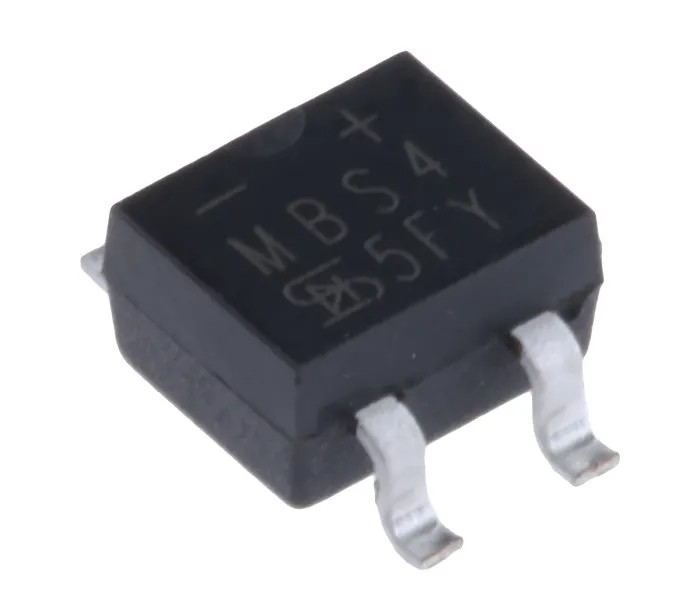

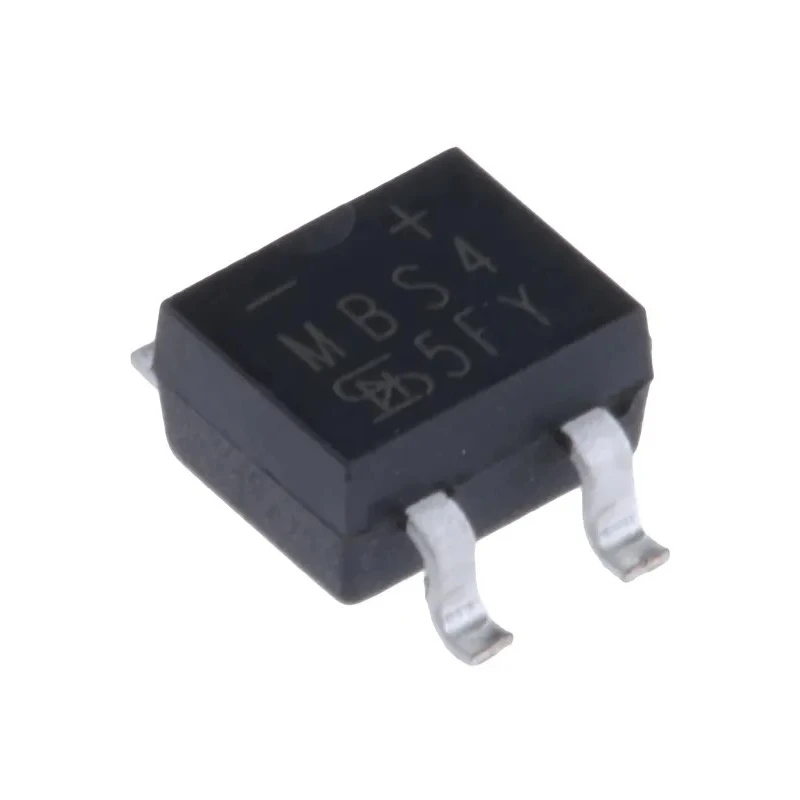

Taiwan Semiconductor Bridge Rectifier 400 V 30 A 4-Pin Single MBS4

Name: Taiwan Semiconductor Bridge Rectifier 400 V 30 A 4-Pin Single MBS4
Brand: Taiwan Semiconductor
SKU: 201961
Price: 0.23 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.7mm
Length	4.9mm
Model	MBS4
Width	4mm
Mount Type	Surface
Series	MBS
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	TO-269
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	800mA
Peak Forward Voltage Vf	1V

Key Features

Peak reverse repetitive voltage rating of 400 volts ensures robust operation.
Maximum forward current of 800 mA suitable for moderate power applications.
Compact TO-269 surface mount package ideal for automated assembly.
High peak non-repetitive forward surge current of 30 A for transient conditions.
Operating temperature range from -55°C to 150°C enables versatile environmental tolerance.
Low peak forward voltage drop of 1 V improves efficiency.
Four-pin single configuration simplifies circuit design.
Conforms to automotive standard AEC-Q101 ensuring quality and reliability.

Product Description

Taiwan Semiconductor MBS4 Bridge Rectifier 400 V 30 A 4-Pin Single offers efficient AC to DC conversion through a robust diode bridge setup in a compact TO-269 surface mount package. This component is suited for industrial, electronics manufacturing, automotive, and general electronic circuit applications requiring stable rectification with moderate current and voltage ratings.

The device supports a peak reverse repetitive voltage of 400 V and a maximum average forward current of 800 mA, with a peak forward surge current rating of 30 A to withstand transient power spikes. Its operating temperature range from -55°C to 150°C makes it adaptable to harsh environments.

The small form factor with dimensions 4.9 mm length, 4 mm width, and 2.7 mm height facilitates space-saving PCB layouts and compatibility with automated placement and reflow soldering processes. Its single-phase 4-pin configuration allows simplified integration into discrete semiconductor applications.

Key technical features include a low peak forward voltage of 1 V and a peak reverse current as low as 100 μA, enhancing overall circuit efficiency. It complies with the stringent automotive standard AEC-Q101, reinforcing its reliability in automotive and industrial electronics.

This Bridge Rectifier is ideal for use in power supplies, battery charging, and signal demodulation among other industrial, laboratory, and manufacturing electronics use cases. Packaging on reel format optimizes handling during production. Ensure compatibility with your circuit specifications when selecting this semiconductor device.

Peak reverse repetitive voltage rating of 400 V. Maximum forward current of 800 mA. Compact TO-269 surface mount package. Peak forward surge current of 30 A. Operating temperature range from -55°C to 150°C. Low peak forward voltage drop of 1 V.

4-pin single-phase configuration. Compliance with automotive standard AEC-Q101. Explore more products in the Electronics & Electricals category at EnvMart for advanced semiconductor and rectifier components.
