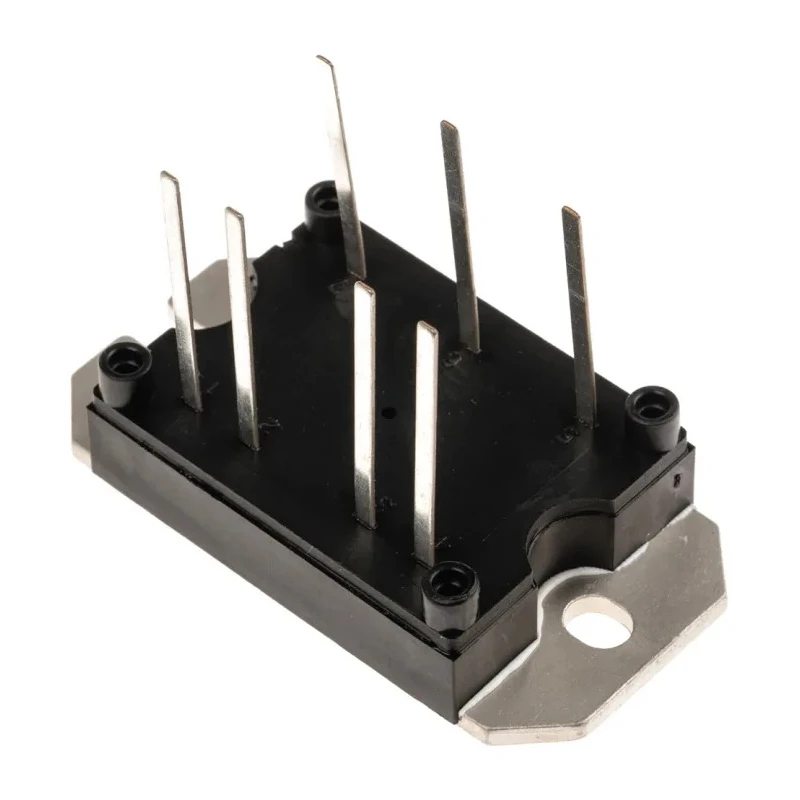

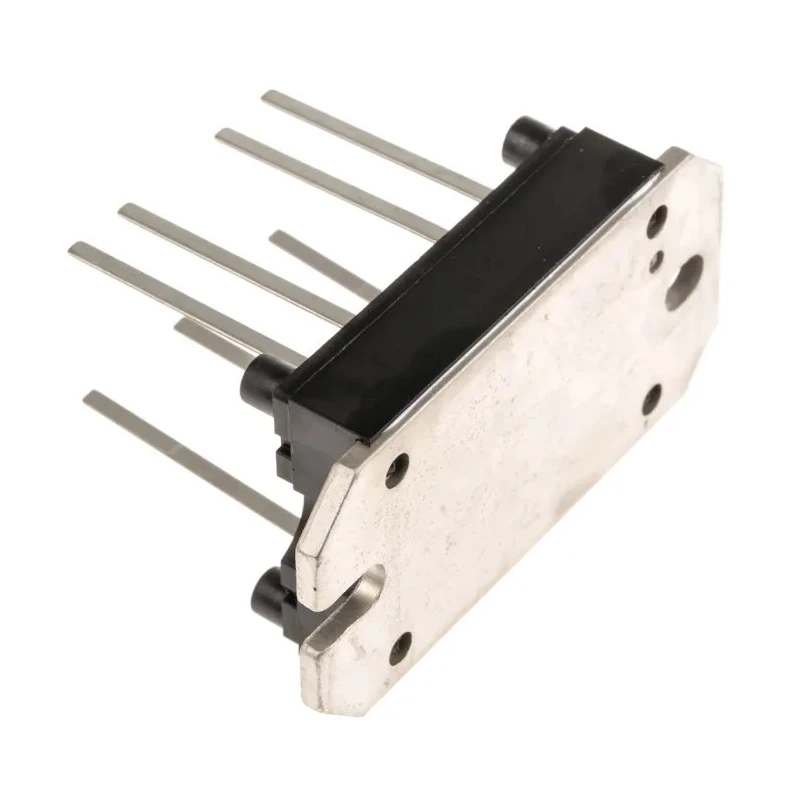

Vishay Bridge Rectifier 1600 V 470 A 8-Pin Single PCB Mount VS-100MT160PAPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 16mm |
| Length | 63.5mm |
| Model | VS-100MT160PAPBF |
| Width | 32.5mm |
| Mount Type | PCB |
| Series | VS-100MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | MT PA |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 8 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 470A |
| Forward Current If | 100A |
| Peak Forward Voltage Vf | 1.51V |
Key Features
- Provides full-wave rectification converting AC to DC power.
- Equipped with low profile MT PA package for minimal size and high reliability.
- Supports forward current up to 100 A and surge current up to 470 A.
- Operates over a wide temperature range from -40°C to 150°C.
- Offers peak forward voltage of 1.51 V and peak reverse current of 5 mA.
- Designed with soldering pins for direct mounting on PCBs and heatsinks.
- Suitable for industrial electronic, power, and semiconductor applications.
- Ensures maximum thermal performance with compact dimensions 63.5 mm x 32.5 mm x 16 mm.
Product Description
Vishay VS-100MT160PAPBF Bridge Rectifier is a high-performance industrial semiconductor device engineered for 3-phase full-wave rectification. This 8-pin single configuration bridge rectifier converts alternating current (AC) inputs into direct current (DC) outputs, maintaining polarity regardless of input polarity.
The device features a compact MT PA package optimized for PCB mounting with solderable pins, allowing integration directly onto printed circuit boards and heat sinks. It supports a maximum forward current of 100 A and can handle surge currents up to 470 A, suitable for demanding power electronics applications.
Operating reliably over temperatures ranging from -40°C to 150°C, the rectifier offers stable performance with a peak reverse repetitive voltage of 1600 V, peak forward voltage of 1.51 V, and minimal peak reverse current of 5 mA.
With dimensions of 63.5 mm length, 32.5 mm width, and 16 mm height, the rectifier balances minimal size with maximum thermal performance and durability. It is ideally suited for industrial, power supply, and electronics manufacturing applications requiring robust, reliable semiconductor rectification solutions.
AC to DC full-wave rectification with 3 phase diode bridge design. MT PA low profile package for high reliability and compactness. Supports high forward current and surge current ratings. Wide operating temperature range suitable for harsh environments.
Low forward voltage drop and minimal reverse leakage current. PCB mountable with solderable pins for easy integration. Compact dimensions ensuring efficient thermal management.
This Vishay semiconductor bridge rectifier is certified under UL file E78996 and is designed to improve production efficiency for power electronics assemblies. It is a preferred choice in applications within industrial automation, power supply design, and electronic component manufacturing sectors.
Explore more on EnvMart for premium semiconductor Bridge Rectifiers and Vishay branded electronic components designed for industrial-grade applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating of this model is 100 A.
It has a peak reverse repetitive voltage of 1600 V.
The dimensions are 63.5 mm in length, 32.5 mm in width, and 16 mm in height.
This rectifier can handle a peak non-repetitive forward surge current of up to 470 A.
It operates over a wide temperature range from -40°C to 150°C.
It is designed for PCB mounting with solderable pins for easy integration.
It features a low profile MT PA package optimized for compactness and reliability.
The peak forward voltage drop is 1.51 V.
The peak reverse current is rated at 5 mA.
It is suitable for industrial electronic, power supply, and semiconductor applications.
This model has a pin count of 8.
It has a single configuration designed for 3-phase full-wave rectification.
