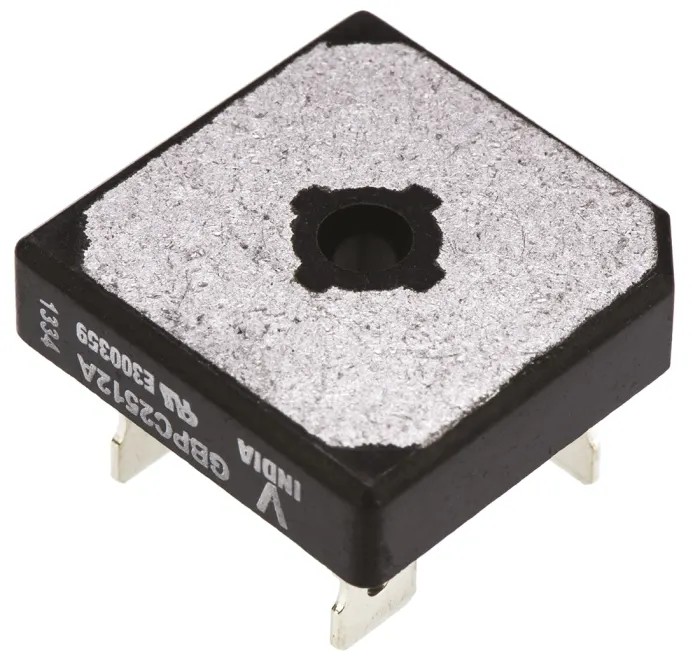

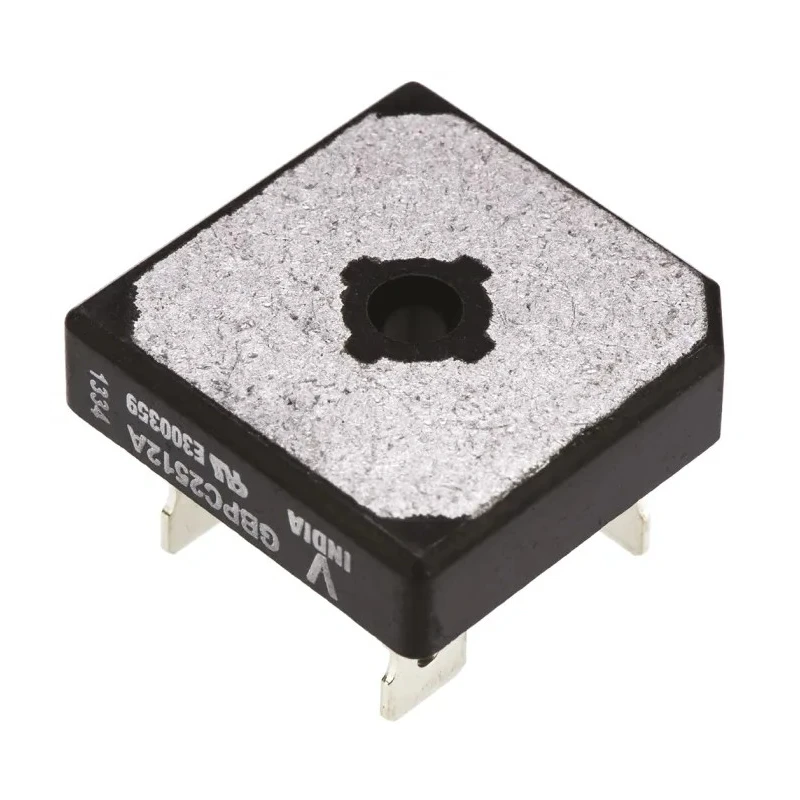

Vishay Bridge Rectifier, 1200 V Peak Reverse Repetitive Voltage, 420 A Peak Non-Repetitive Forward Surge VS-GBPC2512A

Vishay VS-GBPC2512A Bridge Rectifier, 1200 V Peak Reverse Repetitive Voltage and 420 A Peak Non-Repetitive Forward Surge Current, is a high-performance discrete semiconductor designed for converting alternating current (AC) input into direct current (DC) output. This 4-pin single configuration device is housed in a GBPC package with screw mount type, ensuring mechanical robustness and reliable attachment in diverse electronic assemblies.

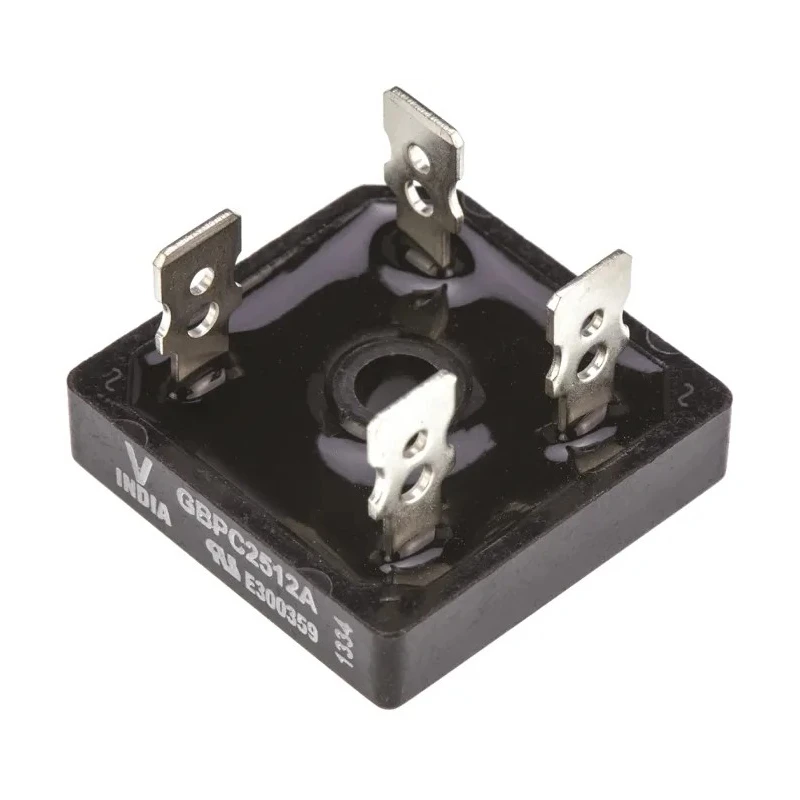

Engineered with universal three-way terminals that allow push-on, wrap-around, or solder connections, the rectifier offers flexibility in installation. The high thermal conductivity package includes an electrically insulated case with a center hole fixing feature, enhancing heat dissipation and mechanical stability, critical for heavy-duty industrial operations. Its compact size (28.6 mm x 28.6 mm x 7.7 mm) provides excellent power density with a superior power-to-volume ratio, facilitating integration in compact electronics.

The rectifier supports a forward current of 25 amperes and can withstand peak surge currents up to 420 amperes, accommodating transient conditions effectively. It operates within a wide temperature range from -55°C to 150°C, making it suitable for harsh environments typical of industrial, manufacturing, and automotive power electronics applications.

The device features a peak forward voltage drop of only 1.1 V and an exceptionally low peak reverse current of 5 μA, resulting in high efficiency and minimal power losses. This rectifier conforms to industry standards, though it has no specific automotive certifications.

Peak Reverse Repetitive Voltage of 1200 V ensures high voltage endurance. Forward Current of 25 A allows continuous DC current flow. Peak Non-Repetitive Forward Surge Current of 420 A protects against surge conditions. Screw Mount Type and GBPC Package offer secure and flexible installation options.

Operating Temperature range from -55°C to 150°C accommodates extreme conditions. Compact dimensions enable space-efficient circuit design. Low Peak Forward Voltage minimizes power loss during conduction. Electrically insulated case enhances safety and thermal management.

This bridge rectifier is ideal for industrial power supplies, inverters, and motor drive circuits where reliable AC to DC conversion is critical. Its robust construction and advanced thermal characteristics support a broad range of applications in manufacturing equipment, HVAC systems, and other commercial power conversion uses.
