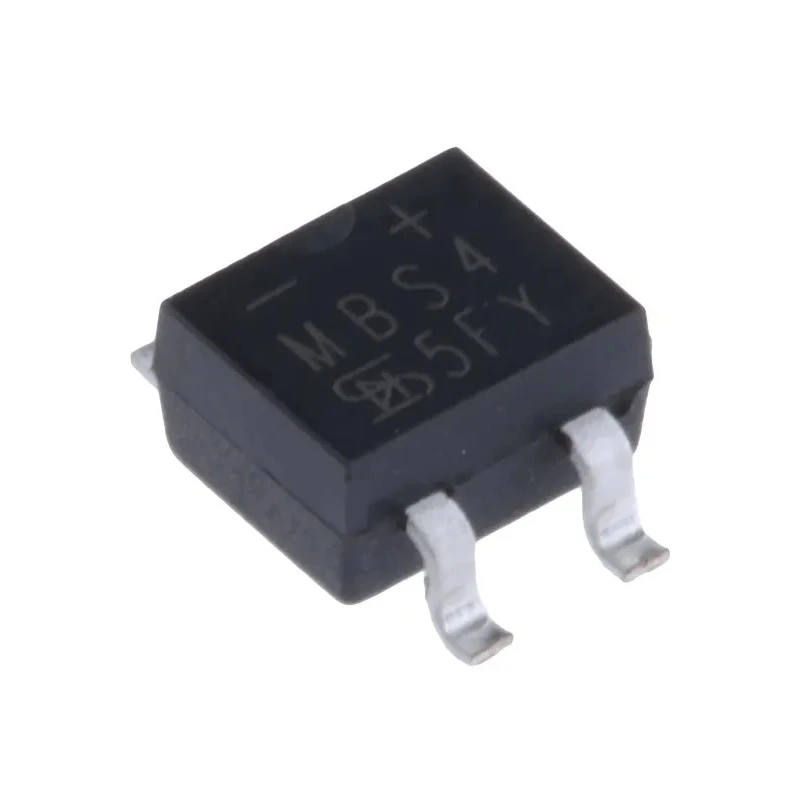

Taiwan Semiconductor Bridge Rectifier, 400 V Peak Reverse Repetitive Voltage, 30 A Peak Non-Repetitive Forward Surge MBS4

Taiwan Semiconductor MBS4 Bridge Rectifier is designed for converting alternating current (AC) into direct current (DC) in electronic and power applications. With a peak reverse repetitive voltage of 400 V and capability to handle peak non-repetitive forward surge current of 30 A, this 4-pin single bridge rectifier is ideal for use on printed circuit boards (PCBs) using surface mount technology.

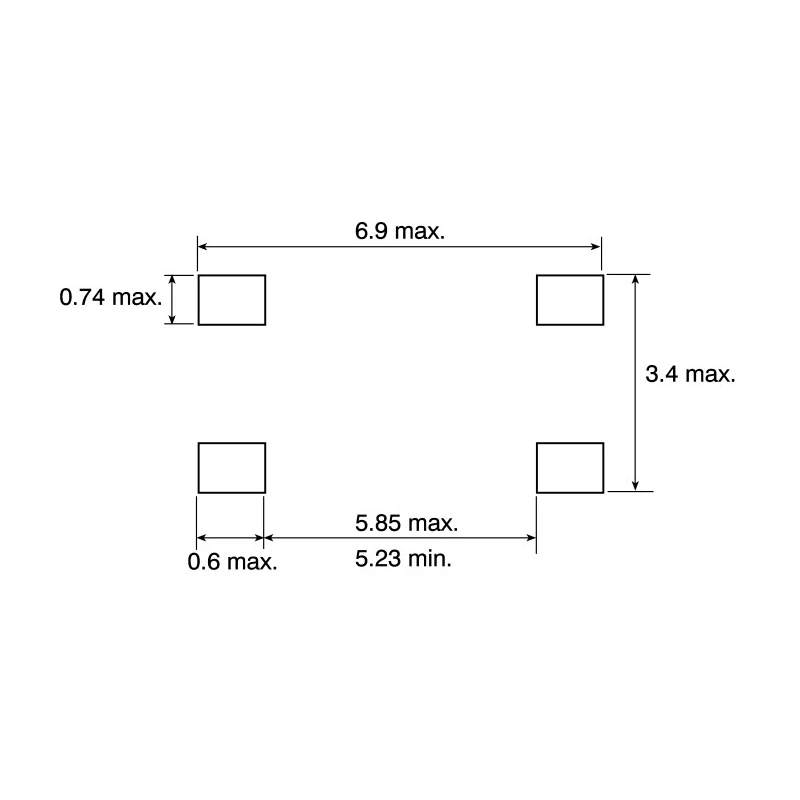

The device comes in a space-saving TO-269 package with dimensions 4.9 mm by 4 mm by 2.7 mm, making it suitable for automated placement during manufacturing. It supports a forward current of 800 mA and a peak forward voltage of 1 V, facilitating efficient DC output with minimal losses.

Operating reliably within a temperature range of -55°C to 150°C, the MBS4 bridge rectifier meets automotive industry standard AEC-Q101, reflecting its robustness and suitability for demanding environments.

This semiconductor component is commonly applied in power supplies, motor controls, and electronic equipment requiring AC to DC conversion. The single-phase configuration with 4 pins simplifies circuit design and aids in stable electrical performance.

Surface mount TO-269 package for efficient PCB integration. Supports 400 V reverse voltage and 30 A surge current. Wide operating temperature range from -55°C to 150°C. Compact size enables automated assembly processes. Complies with AEC-Q101 automotive standard for quality assurance.

Single phase for straightforward AC/DC rectification. 1 V peak forward voltage for low power dissipation. 800 mA forward current rating supports moderate current loads.

This component is an essential part of electronics systems in industrial manufacturing, automotive electronics, power supply design, and HVAC controls. Discover more semiconductor and Bridge Rectifier products in EnvMart’s Electronics & Electricals catalogue.
