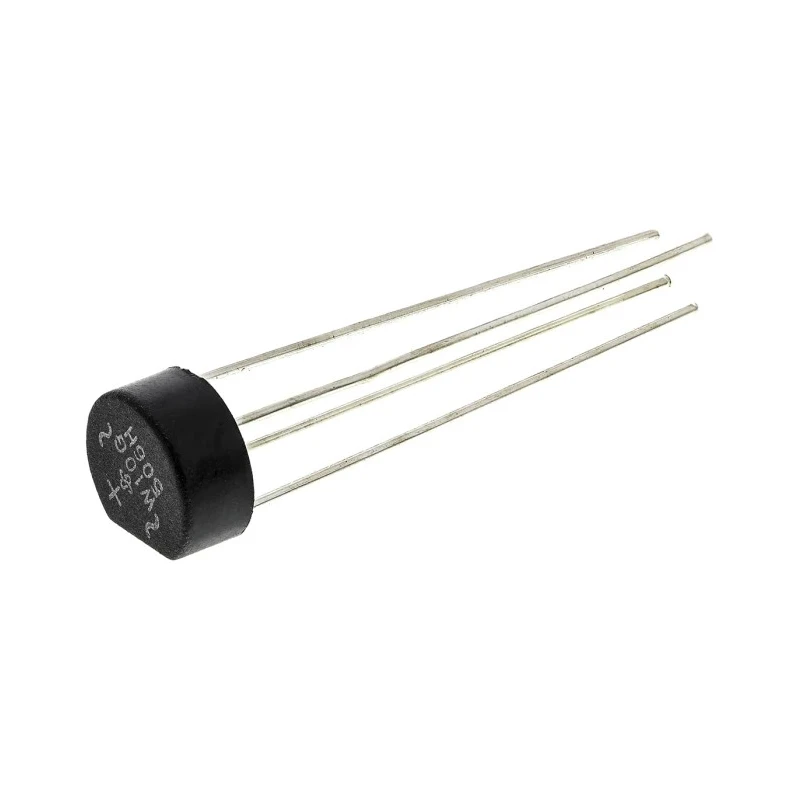

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 50 A Forward Surge Current, 4-Pin Through Hole W10G-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | W10G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | W10G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Case | WOG |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Polarity | As marked on body |
| Terminals | Silver plated leads, solderable per |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1V |
| Material categorization | For definitions of compliance |
| Vishay Bridge Rectifier, 1.5A, 1000V, 4-PinBrand | Vishay |
| Vishay Bridge Rectifier, 1000 V 52 A, 4-Pin SingleBrand | Vishay |
| Taiwan Semiconductor Bridge Rectifier, 1.5A, 1000V, 4-PinBrand | Taiwan Semiconductor |
| Lite-On Bridge Rectifier, 1.5A, 1000V, 4-PinBrand | Lite-On |
Key Features
- Features a through-hole mount suitable for printed circuit boards.
- Operates reliably across a temperature range from -55°C to 150°C.
- Has a low peak reverse current of 5μA ensuring efficient performance.
- Silver plated leads provide excellent solderability and high electrical conductivity.
- Compact dimensions with length and diameter approximately 9.86 mm and width 8.84 mm.
- Constructed with high case dielectric strength and compliant molding compound for durability.
- Meets UL recognition requirements, enhancing safety and reliability.
- Ideal for power supplies, adapters, chargers, and lighting ballasts in consumer and industrial electronics.
Product Description
Vishay W10G-E4/51 Bridge Rectifier is a robust semiconductor component designed for converting alternating current (AC) input into direct current (DC) output utilizing full-wave rectification. This 4-pin single Bridge Rectifier features a 1000 V peak reverse repetitive voltage rating and supports forward surge currents up to 50 A, ensuring high reliability under demanding operational conditions.
The device adopts a through-hole mount type for easy integration onto printed circuit boards, suitable for industrial, consumer electronics, and power supply applications. It operates within a temperature range of -55°C to 150°C, enabling stable performance in varied environmental conditions.
Constructed with silver plated leads compliant with J-STD-002 and JESD22-B102 standards, the rectifier offers excellent solderability and enhanced electrical connectivity. The molding compound meets UL 94 V-0 flammability rating, combined with a high case dielectric strength for increased safety and endurance.
Typical applications include use in AC/DC bridge full-wave rectification circuits found in power supplies, adapters, chargers, and lighting ballasts. The rectifier is UL recognized (file number E54214), adding an assurance of quality and compliance expected in industrial and commercial environments.
High surge current capability suitable for demanding electrical loads. Low typical leakage current (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay W10G-E4/51 bridge rectifier has a peak reverse repetitive voltage rating of 1000 V.
This model can support a maximum forward surge current of 50 A.
It operates reliably across a temperature range from -55°C to 150°C.
The rectifier features a through-hole mount suitable for integration onto printed circuit boards.
The dimensions are approximately 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
The peak reverse current is low, rated at 5μA, ensuring efficient performance.
It has silver plated leads that provide excellent solderability and high electrical conductivity.
Typical applications include power supplies, adapters, chargers, and lighting ballasts in consumer and industrial electronics.
The molding compound meets the UL 94 V-0 flammability rating, enhancing safety and reliability.
The configuration is a single bridge rectifier, designed for converting AC to DC.
Yes, the rectifier is UL recognized, which adds assurance of quality and compliance for industrial and commercial use.
The forward current rating for this model is 1.5 A.
