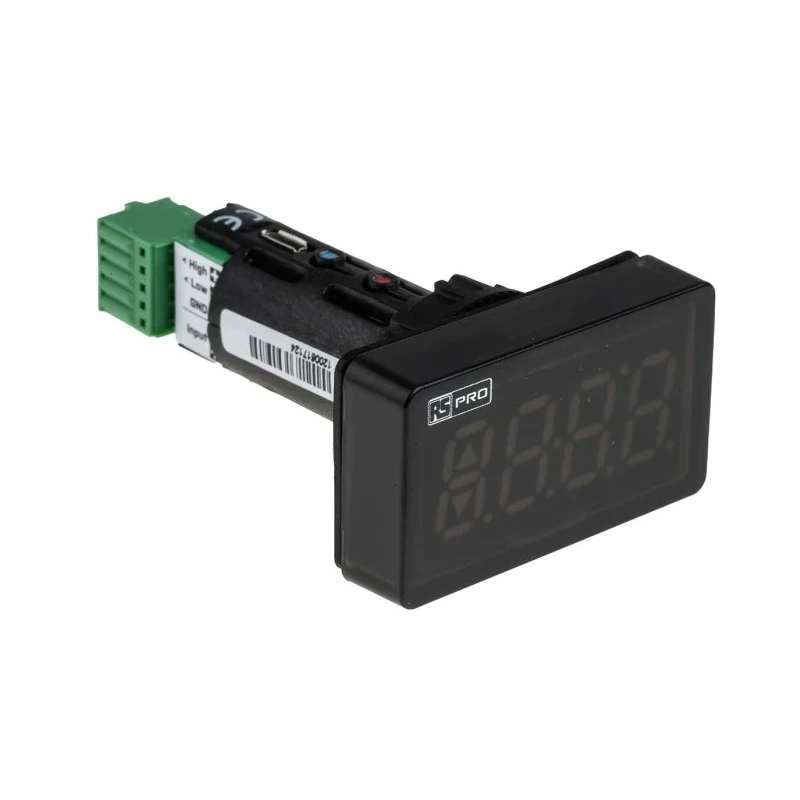

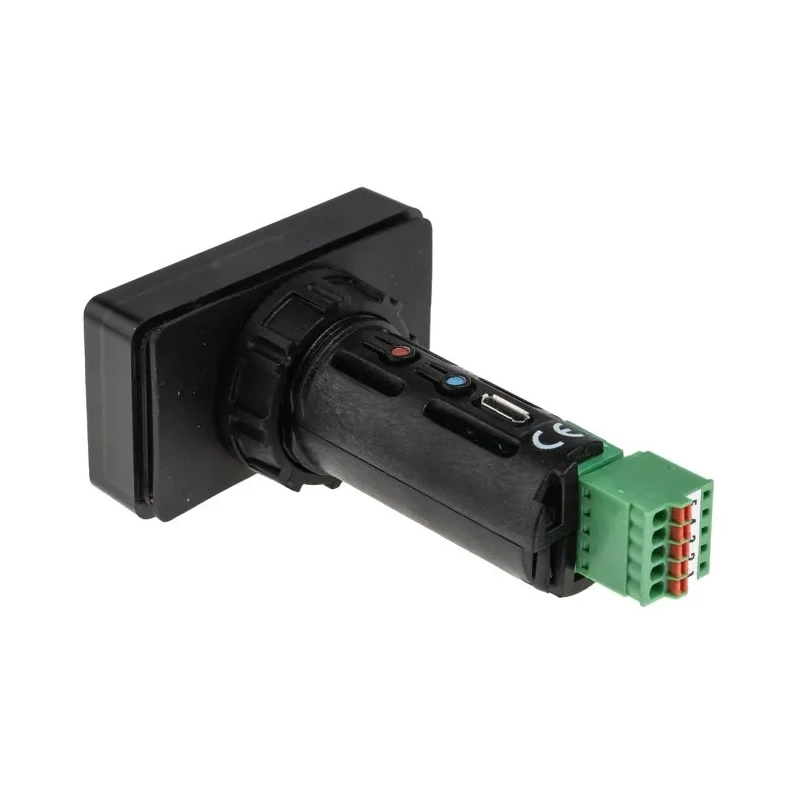

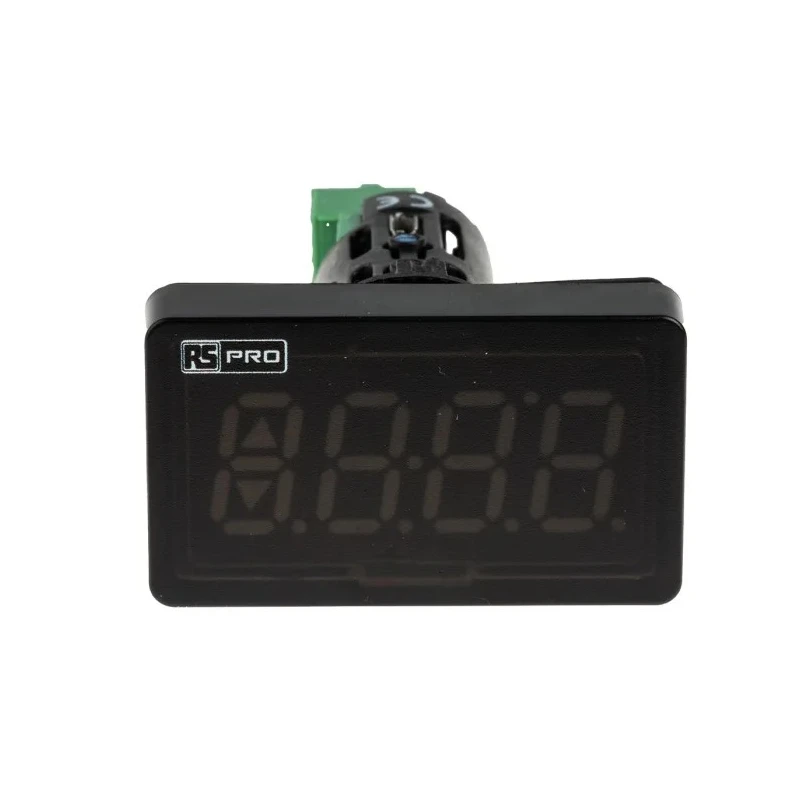

RS PRO Digital Ammeter 20 mA, 29.5 mm x 51.5 mm, ±0.15 % Accuracy, Model 188-3473
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | RS PRO |
| Interface | USB |
| Model | 188-3473 |
| Depth | 66mm |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Meter Accuracy | ±0.15 % rdg + 1 % Digits |
| Minimum Operating Temperature | -20°C |
| Compliance | EN 61010-1, EN 61326-1, A2 |
| Standards/Approvals | EN 61010-1, EN 61326-1, A2 |
| Cutout Height | 29.5mm |
| Cutout Width | 51.5mm |
| Minimum Measurement | -999 Digits |
| Maximum Measurement | 9999 Digits |
| Maximum Ampere Value | 20 mA |
Key Features
- Monitors and measures current in electrical circuits up to 20 mA.
- Compact cutout dimensions of 29.5 mm height and 51.5 mm width for versatile panel mounting.
- Wide operating temperature range from -20°C to 60°C ensures reliable performance.
- Accuracy rated at ±0.15 % reading plus 1 % digits for high measurement confidence.
- Offers easy operation with two-button control and USB interface for device configuration and firmware updates.
- Digital display with four-digit resolution for clear readings.
- Suitable for electronics manufacturing, marine engineering, and electricity exchanges.
- Compatible with mosaic and signaling panels; robust microcontroller and A/D conversion integrated.
Product Description
The RS PRO Digital Ammeter 188-3473 is engineered to deliver accurate and reliable current measurement in industrial and laboratory applications. With its measurement capacity up to 20 mA, this digital ammeter is well suited for monitoring electrical circuits requiring precise control and analysis.
This model features a compact panel-mount design, offering cutout dimensions of 29.5 mm in height and 51.5 mm in width, making it adaptable for integration into mosaic and signaling panels commonly found in process control systems. Its depth of 66 mm enables installation in space-efficient enclosures.
High measurement precision is a hallmark of the 188-3473, with an accuracy specification of ±0.15 % of reading plus 1 % digits. The digital display provides four-digit resolution for detailed monitoring of electrical parameters. Operating reliably across temperatures from -20°C to 60°C, this ammeter functions in both freezing and hot environments, making it ideal for industrial and marine use.
User convenience is further enhanced with two-button operation and USB interface capability, allowing for simple device configuration, firmware updates, and archiving of settings. The integrated microcontroller and A/D converter ensure robust data processing and high-fidelity measurements.
Key features include its compliance with EN 61010-1 and EN 61326-1 standards, ensuring safety and electromagnetic compatibility. The ammeter can measure currents in the range of 4 mA to 20 mA, suitable for process control and monitoring in electronics manufacturing, marine engineering, and electrical power exchanges.
The RS PRO 188-3473 Digital Ammeter is an essential tool for engineers requiring accurate current measurements in demanding environments. Its robust construction, wide operating range, and advanced interface options make it an optimal choice for industrial manufacturers, laboratories, and process control installations.
Explore more reliable Process Control instrumentation and advanced measurement solutions in the RS PRO range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Digital Ammeter Model 188-3473 has a maximum current measurement capacity of 20 mA.
This model features a compact cutout height of 29.5 mm and a width of 51.5 mm for panel mounting.
The accuracy of this ammeter is rated at ±0.15 % of reading plus 1 % digits.
It operates reliably within a temperature range of -20°C to 60°C.
The RS PRO 188-3473 includes a USB interface for device configuration and firmware updates.
This model complies with EN 61010-1 and EN 61326-1 standards, ensuring safety and electromagnetic compatibility.
The depth of this model is 66 mm, allowing for installation in space-efficient enclosures.
The digital display of this ammeter provides a four-digit resolution for clear readings.
It is suitable for applications in electronics manufacturing, marine engineering, and electrical power exchanges.
The minimum measurement is -999 digits and the maximum measurement is 9999 digits.
It features an integrated microcontroller and A/D converter for robust data processing and high-fidelity measurements.
The minimum operating temperature for the RS PRO 188-3473 is -20°C.
