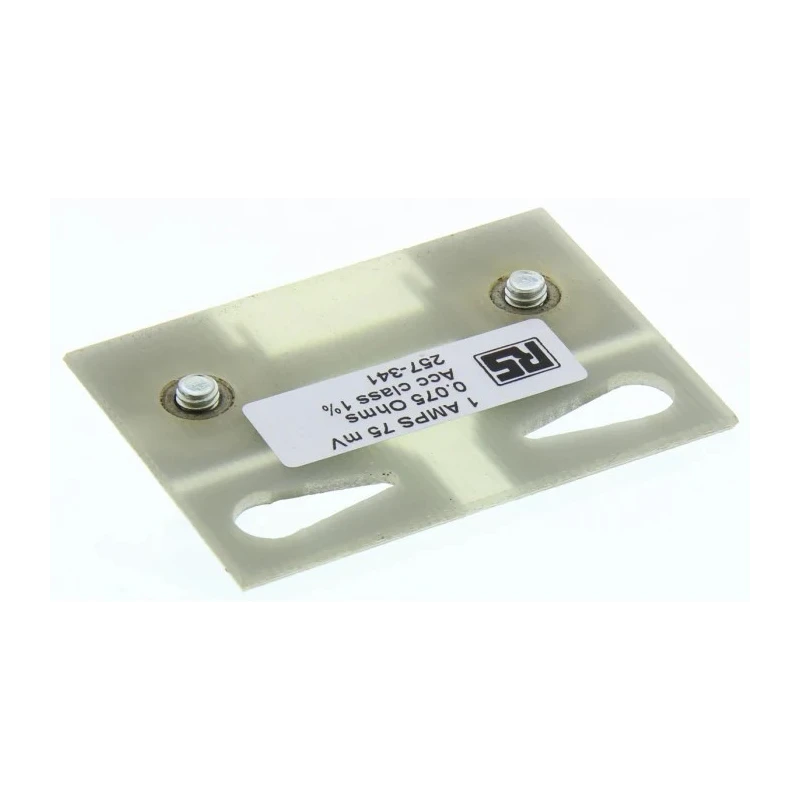

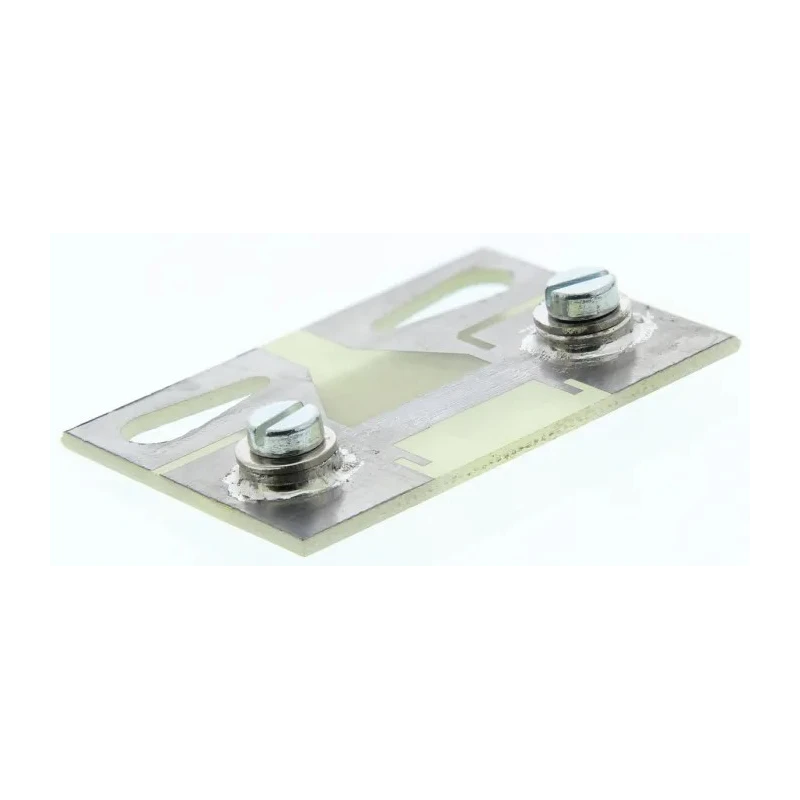

HOBUT Plate Shunt Maximum Current 1A Max 75mV Output Voltage ±1.5 % Accuracy SHR1A75

HOBUT SHR1A75 Plate Shunt is a precision electrical component designed for current measurement applications in industrial automation and process control systems. It supports a maximum continuous current rating of 1 Ampere and offers an output voltage of 75 millivolts.

This plate type shunt is specially designed for direct mounting on DIN DC ammeters or panel meters that utilize a full-scale deflection of 75mV at 75Ω (equivalent to 1mA). It delivers class 1.5 accuracy (±1.5%), ensuring dependable and accurate readings in electrical measurement setups.

Engineered to operate reliably across a temperature range of -20°C to 40°C, this shunt is suitable for varied environmental conditions often encountered in manufacturing plants, laboratories, and electrical control panels.

Manufactured in the United Kingdom, the shunt upholds strict quality standards but does not carry specific standards or approvals. Its robust design facilitates seamless integration in process control and industrial automation systems.

Provides ±1.5% accuracy for precise current measurement. Maximum current rating of 1A for low current applications. Plate type configuration allows for direct mounting on meters. Operating temperature range from -20°C to 40°C supports diverse environmental conditions.

Output voltage of 75mV suitable for compatible measurement devices.

This HOBUT plate shunt is ideal for instrumentation in industrial automation, electrical panels, process control environments, and research laboratories requiring accurate current measurement with compact form factor.
