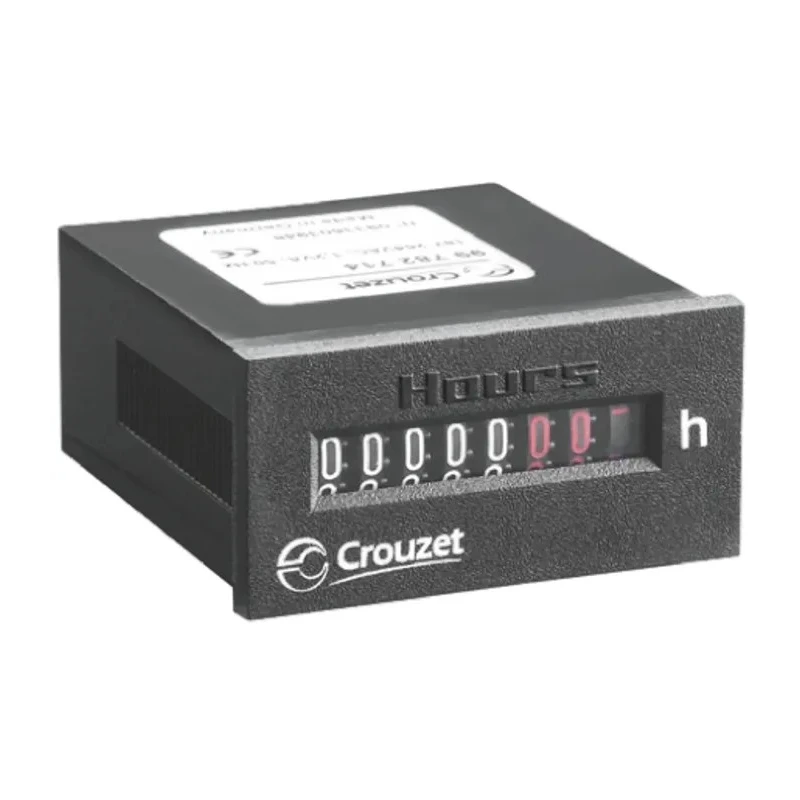

Crouzet CHM24 Hour Meter 7 Digit Mechanical Panel Mount 264V AC Germany CHM24

Crouzet CHM24 Hour Meter CHM24 is a robust 7-digit mechanical hour meter designed for precise time measurement in industrial and process control environments. It features a mechanical display with large 4mm high digits, ensuring excellent visibility even in challenging working conditions.

This hour meter is suited for panel mounting applications, with precise cutout dimensions of 45mm width and 22.2mm height, and a compact depth of 48.4mm to facilitate integration in control panels and enclosures. The unit operates with a maximum supply voltage of 264V AC and counts time in an adding direction without the ability to reset, providing reliable accumulation of operating hours.

The CHM24 series is constructed to withstand harsh industrial environments. It has an IP65 protection rating, making it highly resistant to dust and water ingress, and its mechanical design ensures high resistance to shocks and impacts for long-term durability.

Count capacity for AC operation is up to 100,000 hours, while under DC supply it can count up to 1,000,000 hours, making it suitable for a wide range of applications requiring extended time tracking. The screw connection type offers reliable and easy wiring during installation.

Operating temperature range is up to 50°C, ensuring stable and consistent performance in typical industrial settings. This product is manufactured in Germany, adhering to stringent quality and manufacturing standards.

The hour meter features a mechanical 7-digit display with 4mm digit height for excellent readability. It supports panel mounting with specific cutout dimensions of 45mm width and 22.2mm height. The device operates with a maximum supply voltage of 264V AC and counts in an adding direction.

Designed for durability, it is IP65 rated, shock-resistant, and withstands operating temperatures up to 50°C. The hour meter does not support reset and is equipped with screw connection type for secure wiring. Count capacity is 100,000 hours for AC operation and 1,000,000 hours for DC operation.

Compact depth of 48.4mm allows easy integration into control panels. Manufactured in Germany, ensuring high-quality European standards.

This Crouzet CHM24 Hour Meter is ideal for industrial automation, process control systems, HVAC equipment, manufacturing plants, and other environments requiring accurate hour counting and monitoring. Its robust design and panel mount form factor make it an essential component for reliable time tracking and maintenance scheduling.
