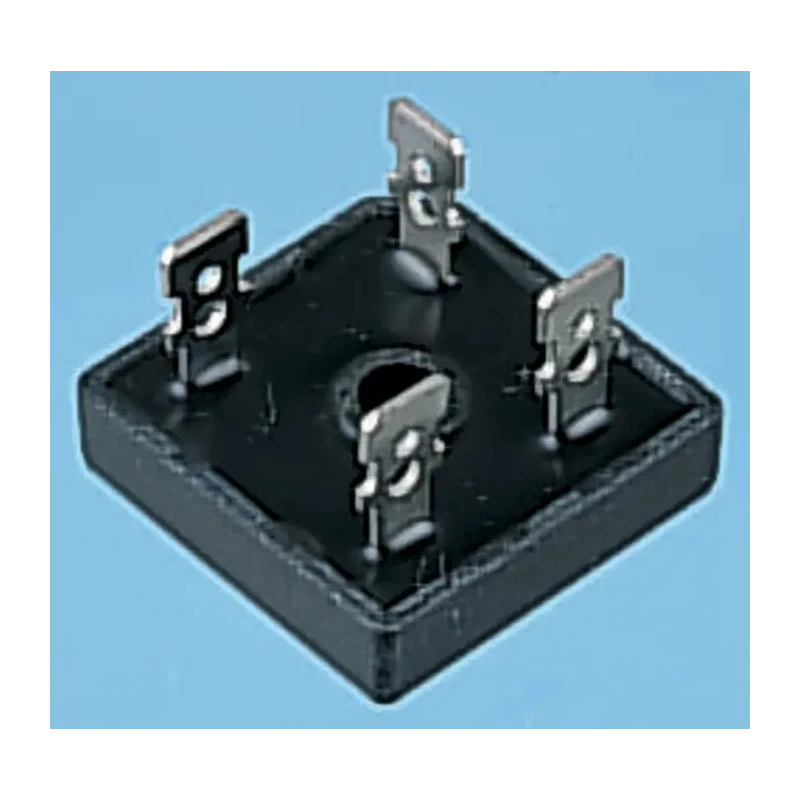

Taiwan Semiconductor Bridge Rectifier, 200 V, 15 A Forward Current, 300 A Surge Current, 4-Pin Single GBPC1502 T0

Taiwan Semiconductor GBPC1502 T0 Bridge Rectifier is a high-performance 4-pin single-phase bridge rectifier designed for converting AC input into DC output, rated at 200 V peak reverse voltage and 15 A forward current. It is built for reliable industrial and electronic applications requiring efficient rectification and thermal management.

This bridge rectifier belongs to the GBPC15 series, featuring a glass passivated chip junction that ensures durability and stable operation under thermal stress. It supports a peak non-repetitive forward surge current of 300 A, making it suitable for transient surge conditions commonly encountered in power electronics.

The device operates within a wide temperature range from -50°C to a maximum of 150°C, with an integrally molded heat sink offering very low thermal resistance to maximize heat dissipation during continuous operation. Its isolated voltage from case to lead exceeds 2500 V, providing enhanced electrical safety in demanding environments.

Designed with a compact screw mount package type, GBPC, it measures 29 mm in length and width, and 11.23 mm in height, facilitating easy integration into various power supply circuits. The fast-on terminals enable quick and secure connections, improving installation efficiency.

Bridge rectifiers such as this model are widely applicable in industrial machinery, power supply units, automotive electronics, HVAC systems, and water treatment equipment, where reliable AC to DC conversion is critical.

Supports peak reverse repetitive voltage of 200 V for robust switching. Configured as a single-phase 4-pin device with GBPC type package. Operates reliably between -50°C and 150°C maximum temperature. Capable of handling 300 A peak non-repetitive forward surge current.

Features glass passivated chip junction for enhanced durability. Integrally molded heat sink provides low thermal resistance for superior heat dissipation. Isolated voltage between case and lead exceeds 2500 V for safety.

Equipped with screw mount and fast-on terminals for easy installation. Compact dimensions: 29 mm length x 29 mm width x 11.23 mm height. Explore high-quality Bridge Rectifiers and power conversion components at EnvMart to enhance your electronic and industrial projects.
