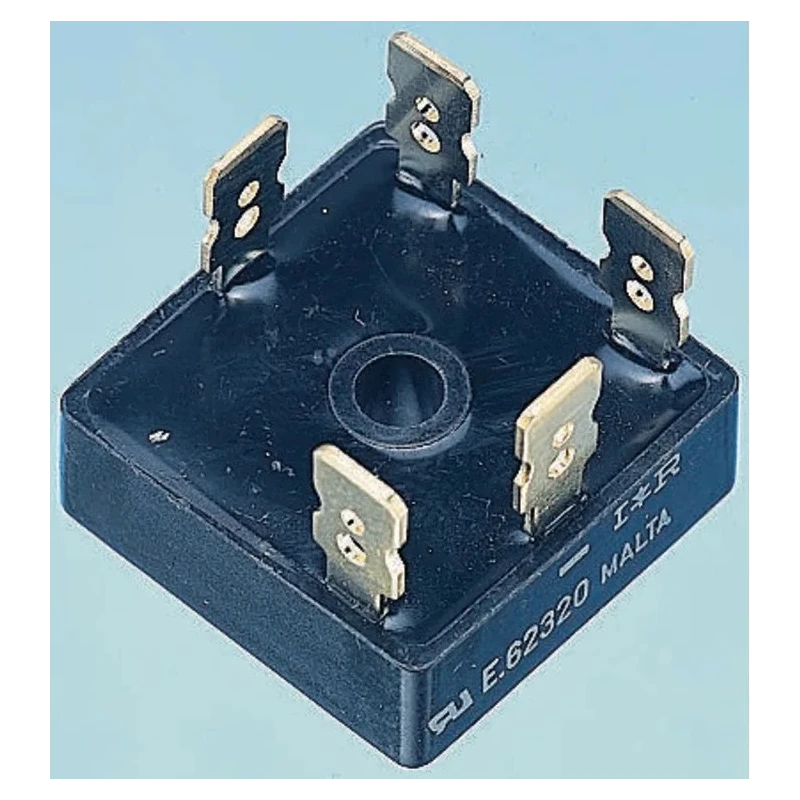

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 375 A Peak Forward Surge Current, 5-Pin Single VS-26MT100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-26MT100 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-26MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.26V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
Key Features
- Supports a peak reverse repetitive voltage of 1000 V.
- Maximum forward surge current rating of 375 A ensures robust surge handling.
- Equipped with universal 3-way push-on terminals for versatile mounting options.
- Thermally efficient package design allows maximum operating temperature of 150°C.
- Compact size with dimensions 28.5 mm length, 28.5 mm width, and 10 mm height.
- Forward current rating of 25 A suitable for demanding applications.
- Operating temperature range spans from -55°C to 150°C for wide environmental compatibility.
- Package type D-63 with through-hole mount configuration.
Product Description
Vishay VS-26MT100 Bridge Rectifier is a single, 5-pin, three-phase diode assembly designed for full-wave rectification converting AC to DC efficiently. Rated for a peak reverse repetitive voltage (Vrrm) of 1000 V and a peak forward surge current of 375 A, it ensures reliable operation in industrial and power electronic circuits.
This device features a compact D-63 package with dimensions of 28.5 mm length, 28.5 mm width, and 10 mm height, and through-hole mount type enabling secure physical installation. The thermally optimized package supports a maximum operating temperature of 150°C, improving overall device longevity and performance.
The bridge rectifier configuration with 5 pins facilitates easy integration with universal 3-way terminals offering push-on, wrap-around, or solder mounting options for flexible connectivity. It has a forward current rating of 25 A and a low peak forward voltage of 1.26 V to minimize power loss.
Environmental operating range is from -55°C minimum to 150°C maximum, making the VS-26MT100 a versatile choice for demanding industrial, laboratory, and manufacturing applications including power supplies, motor drives, and HVAC controls.
Peak reverse voltage rating of 1000 V for high voltage applications. Robust 375 A peak non-repetitive surge current handling capacity. Compact D-63 package enabling efficient thermal management. Universal 3-way terminal options for installation flexibility.
Wide temperature operating range for diverse environments. Electrical isolation with an electrically insulated case for safety. Ideal for industrial, electronic, and power conversion use cases. Set contains one Vishay VS-26MT100 bridge rectifier with 5-pin single configuration. Suitable for integration in power supply assemblies and electronic control equipment.
Browse the Electronics & Electricals category for more semiconductor and Bridge Rectifier options with reliable industrial quality at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VS-26MT100 has a peak reverse repetitive voltage rating of 1000 V, making it suitable for high voltage applications.
This model supports a maximum forward surge current of 375 A, ensuring robust surge handling capabilities.
The dimensions of this bridge rectifier are 28.5 mm in length, 28.5 mm in width, and 10 mm in height.
The forward current rating of the VS-26MT100 is 25 A, suitable for demanding applications.
It operates within a temperature range of -55°C to 150°C, allowing for versatility in various environmental conditions.
This model features a through-hole mount configuration, enabling secure physical installation.
The bridge rectifier is packaged in a D-63 type, which allows for efficient thermal management.
It is equipped with universal 3-way terminals that can be used for push-on, wrap-around, or solder mounting options.
Yes, it is ideal for industrial, electronic, and power conversion applications, including power supplies and motor drives.
The peak forward voltage of this model is 1.26 V, which helps to minimize power loss during operation.
This bridge rectifier has a pin count of 5, facilitating easy integration into circuits.
The country of origin for this model is India.
