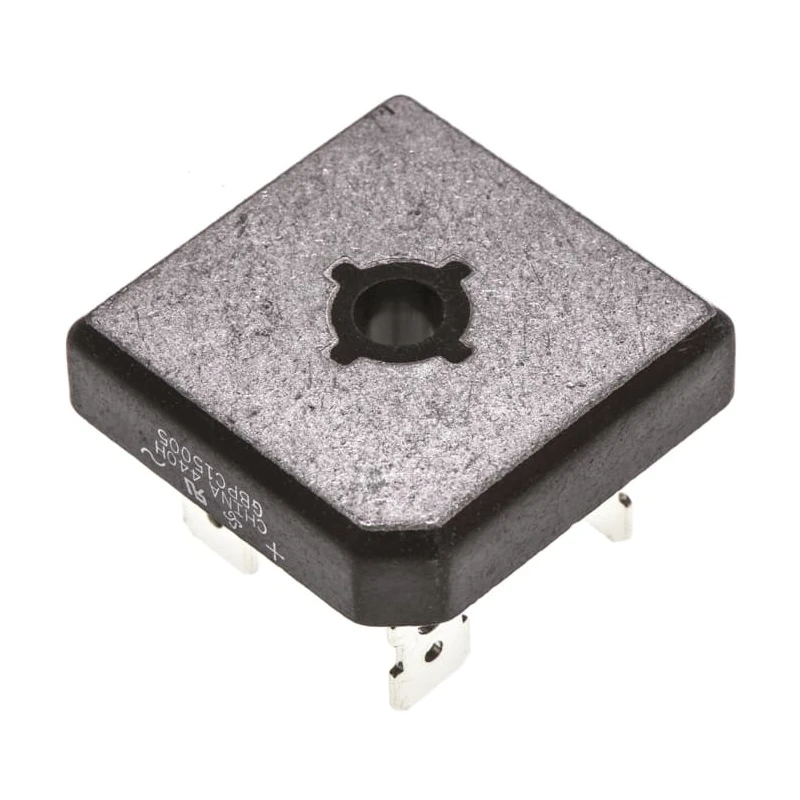

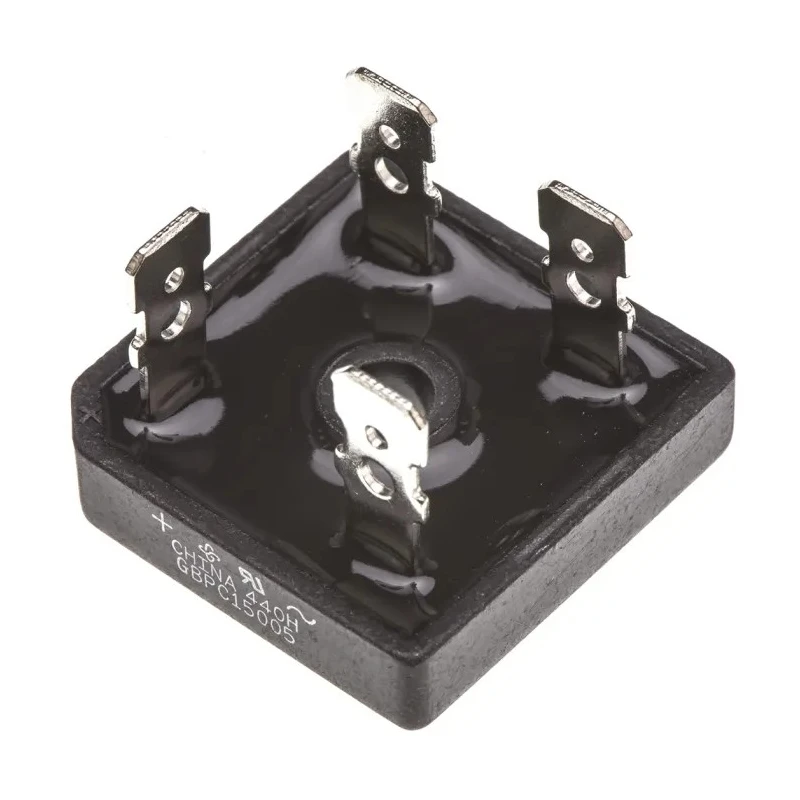

Vishay Bridge Rectifier 50 V 300 A 4-Pin Single GBPC15005-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | GBPC15005-E4/51 |
| Width | 28.8mm |
| Mount Type | Screw |
| Series | GBPC15 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 200 V 300 A, 4-Pin SingleBrand | Vishay |
Key Features
- Converts AC input into DC output for full-wave rectification.
- Comprises a diode arrangement providing consistent output polarity.
- Supports 1 phase with 4 pins suitable for screw mounting.
- Has a maximum operating temperature of 150 °C for reliable thermal performance.
- Features a peak non-repetitive forward surge current of 300 A.
- Designed with glass passivated chip junction for durability.
- Compact package type GBPC with dimensions 28.8 mm (L) x 28.8 mm (W) x 7.62 mm (H).
- Low forward voltage drop of 1.1 V for efficient operation.
Product Description
Vishay GBPC15005-E4/51 Bridge Rectifier is a high-current 15 Ampere, 50 V, 4-pin single-phase semiconductor device designed for efficient full-wave rectification. This rectifier is ideal for electronic, industrial, and power supply applications requiring reliable AC to DC conversion.
The device features a glass passivated chip junction which enhances thermal stability and longevity, with a maximum operating temperature of 150 °C ensuring performance under demanding conditions.
It supports a peak non-repetitive forward surge current of 300 A and a low forward voltage drop of 1.1 V, contributing to high efficiency and minimal power loss. Converts alternating current (AC) input into direct current (DC) output for full-wave rectification.
Comprises a diode bridge circuit that ensures the same output polarity regardless of input polarity. Equipped with universal three-way terminals compatible with push-on, wrap around, or solder connections. Compact GBPC package type designed to optimize space and thermal performance.
Dimensions: Length 28.8 mm, Width 28.8 mm, Height 7.62 mm. Peak reverse repetitive voltage of 50 V with minimal leakage current. Designed for single-phase operation with 4 pins and screw mounting method. Certified with UL E54214 for safety and reliability.
This bridge rectifier is suited for industrial use such as power conversion equipment, electronic component modules, and semiconductor applications. Explore the extensive range of Vishay semiconductor devices and Bridge Rectifiers available to meet diverse industrial and electronic requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Vishay GBPC15005-E4/51 bridge rectifier is 150 °C.
This model has a peak non-repetitive forward surge current rating of 300 A.
The forward voltage drop for this bridge rectifier is 1.1 V, contributing to efficient operation.
The dimensions of the GBPC package are 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height.
The Vishay GBPC15005-E4/51 bridge rectifier features a 4-pin configuration.
This bridge rectifier is designed for screw mounting.
The peak reverse repetitive voltage rating for this model is 50 V.
The minimum operating temperature for this bridge rectifier is -55 °C.
It is equipped with universal three-way terminals that are compatible with push-on, wrap around, or solder connections.
The forward current rating for this model is 15 A.
This bridge rectifier is suited for electronic, industrial, and power supply applications requiring reliable AC to DC conversion.
The configuration of the Vishay GBPC15005-E4/51 is single-phase.
