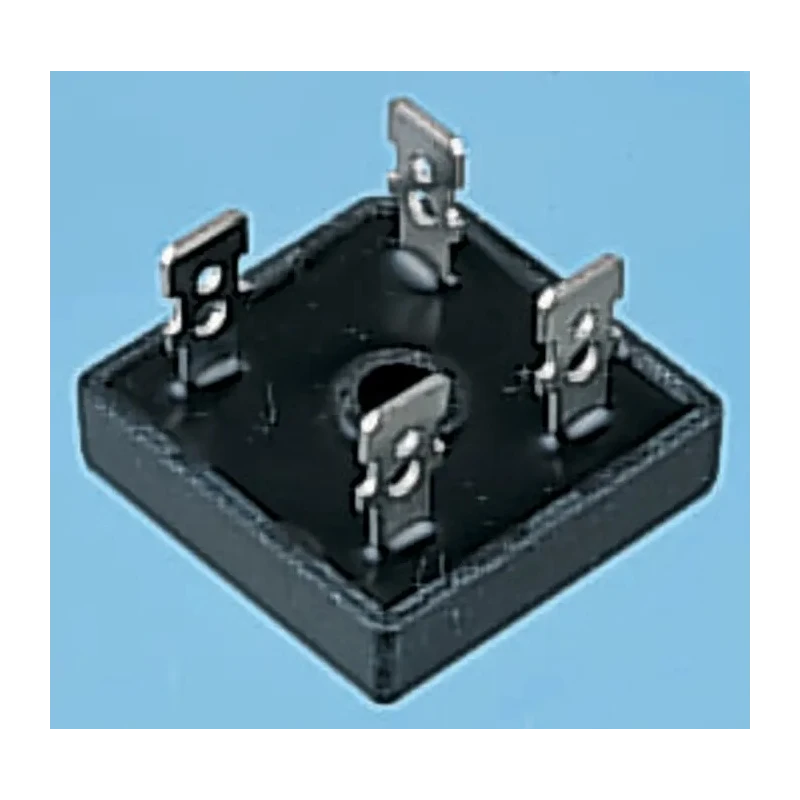

onsemi Bridge Rectifier 200 V 300 A 4-Pin Single GBPC1502

onsemi GBPC1502 Bridge Rectifier 4-Pin Single features a robust design optimized for power rectification applications requiring 200 V peak reverse voltage and 300 A surge current capabilities. It is well-suited for industrial power supplies, motor drives, and other electronic equipment requiring reliable bridge rectification with minimal power loss.

This component includes a screw mount type and a GBPC package that provides mechanical stability and ease of installation. The device supports a wide operating temperature range from -55°C to 150°C, making it ideal for harsh and demanding industrial environments.

The bridge rectifier uses a glass passivated die construction that enhances device reliability and longevity. An integrally molded heat sink delivers very low thermal resistance, ensuring efficient heat dissipation and preventing overheating during high current operation. Its isolated voltage from case to lead of over 2500 V ensures safety and isolation in high voltage circuits.

With a forward current rating of 15 A and low peak forward voltage of 1.1 V, the GBPC1502 ensures efficient power conversion and reduced energy losses in power circuits. It features four pins and is configured for single-phase operation with push-on terminals for easy integration in electronic assemblies.

Features a screw mount type and GBPC package type suitable for reliable assembly. Operates over a broad temperature range from -55°C to 150°C for harsh environments. Constructed with a glass passivated die ensuring high durability and long life.

Integrally molded heat sink provides very low thermal resistance for efficient heat dissipation. Isolated voltage from case to lead exceeds 2500 V enhancing safety. Designed for single-phase bridge rectification with 4 pins and push-on terminals.

Peak forward voltage is low at 1.1 V to reduce power loss. Forward current rating is 15 A continuous for consistent performance. Peak reverse current is minimal at 500 µA, ensuring low leakage.

This bridge rectifier is suitable for use in industrial and commercial electronics requiring reliable power conversion such as power supplies, welding equipment, and motor control systems. It supports integration into semiconductors and discrete electronic component assemblies.
