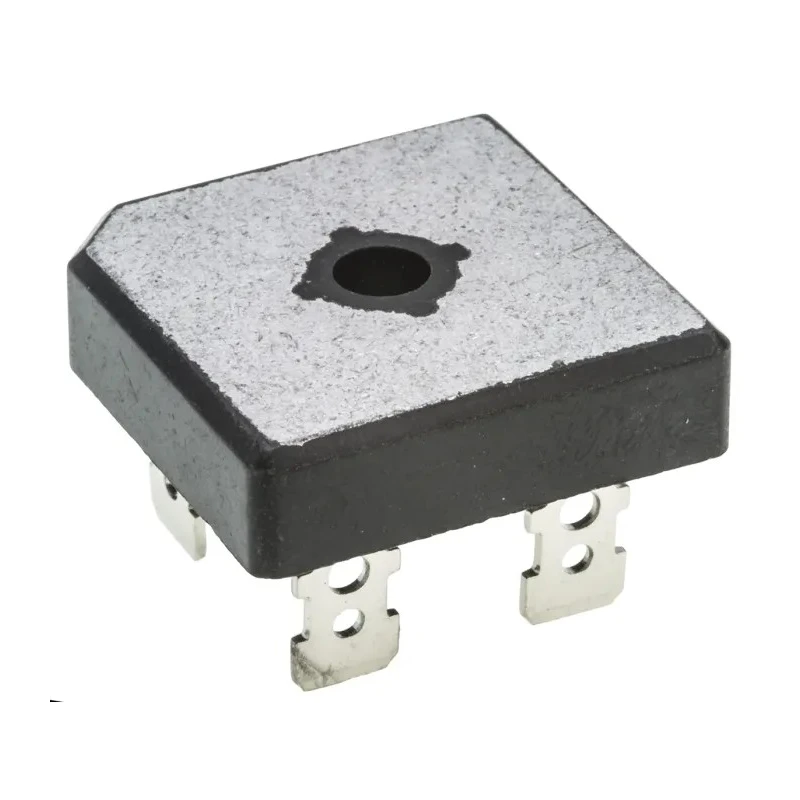

Vishay Bridge Rectifier Screw Mount 400 V 15 A Peak Non-Repetitive Surge Current 300 A 4-Pin Single GBPC1504-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | GBPC1504-E4/51 |
| Width | 28.8mm |
| Mount Type | Screw |
| Series | GBPC15 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 15A, 400V, 4-PinBrand | Vishay |
| Taiwan Semiconductor Bridge Rectifier, 400 V 300 A, 4-Pin SingleBrand | Taiwan Semiconductor |
Key Features
- The bridge rectifier supports a peak reverse repetitive voltage of 400 V.
- Features a peak forward current of 15 A and peak non-repetitive forward surge current of 300 A.
- Designed for screw mounting with a compact GBPC package type.
- Operating temperature ranges from -55°C to 150°C ensuring reliability.
- Includes push-on, wrap around or solder three-way terminals for flexible connectivity.
- Diode arrangement provides consistent polarity output for AC input.
- Compact dimensions measure 28.8 mm length, 28.8 mm width, and 7.62 mm height.
- Peak forward voltage drop is rated at 1.1 V and peak reverse current is 5 μA.
Product Description
Vishay GBPC1504-E4/51 Bridge Rectifier is a high-performance single-phase bridge rectifier designed for converting alternating current (AC) input into direct current (DC) output, suitable for full-wave rectification applications.
This device supports a peak reverse repetitive voltage (Vrrm) of 400 V and a forward current (If) of 15 A, making it ideal for power electronics requiring reliable rectification under demanding conditions.
The rectifier features a peak non-repetitive forward surge current (Ifsm) of 300 A, suitable for transient high current handling, and operates within a wide temperature range from -55°C to 150°C, ensuring durability in varied industrial environments.
Designed for screw mounting, it comes in a standardized GBPC package with 4 pins. The universal three-way terminals enable push-on, wrap around, or solder connection options to simplify installation in electronic circuits.
The compact dimensions of 28.8 mm length, 28.8 mm width, and 7.62 mm height facilitate integration in space-limited assemblies. Its low peak forward voltage of 1.1 V and minimal peak reverse current of 5 μA contribute to efficient power conversion with reduced losses.
The bridge rectifier is glass passivated to enhance performance and longevity. Its configuration provides consistent output polarity regardless of input AC polarity, essential for stable DC power supply designs. The component does not carry automotive or additional approvals and is rated for industrial and electronic component applications.
This Vishay model GBPC1504-E4/51 bridge rectifier is widely used in power supply units, battery chargers, inverters, and other electronic devices requiring effective AC to DC conversion.
Discover a broad range of Bridge Rectifiers and related semiconductor components in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier supports a peak reverse repetitive voltage of 400 V.
This model has a maximum forward current rating of 15 A.
It features a peak non-repetitive forward surge current of 300 A.
The compact dimensions of this unit are 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height.
It operates within a temperature range of -55°C to 150°C.
The bridge rectifier is designed for screw mounting.
It includes universal three-way terminals that allow for push-on, wrap around, or solder connections.
The peak forward voltage drop is rated at 1.1 V.
The peak reverse current is rated at 5 μA.
It has a single configuration, suitable for full-wave rectification applications.
This bridge rectifier is widely used in power supply units, battery chargers, and inverters for effective AC to DC conversion.
The bridge rectifier is manufactured in India.
