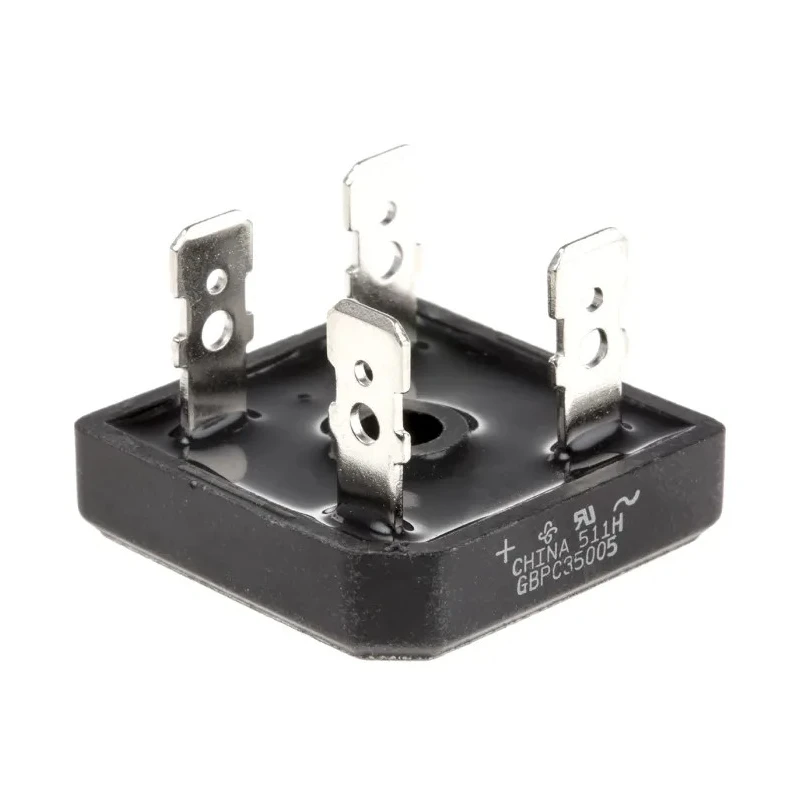

Vishay Bridge Rectifier 50 V 400 A 4-Pin Single GBPC35005-E4/51

Vishay GBPC35005-E4/51 Bridge Rectifier is a high current 4-pin single phase rectifier designed for efficient AC to DC conversion in electronic, industrial, and power supply applications. Featuring a compact GBPC package with screw mount type, this component supports a peak repetitive reverse voltage of 50 V and a maximum forward current of 35 A, with a peak non-repetitive surge current of 400 A. It includes universal 3-way terminals that can be push-on, wrap around, or soldered, offering versatile mounting options.

The device incorporates a glass passivated chip junction which reduces thermal resistance and enhances reliability under harsh operating conditions. Its robust design supports operation over a wide temperature range from -55°C to 150°C, making it suitable for environments requiring long-term stability and performance.

Dimensionally, the bridge rectifier measures 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height, making it compact for high-density electronic circuit boards. It offers a peak forward voltage of 1.1 V and a very low peak reverse current of 5 μA, ensuring energy-efficient operation and minimal leakage currents.

This bridge rectifier is ideal for industrial machines, power conversion circuits, electronic component assemblies, and other applications needing reliable full-wave rectification under demanding conditions. It does not carry automotive approval but meets high standards for power durability and thermal performance.

Key features include its high surge current capability, versatile mounting options, and stable operation temperature range. This product enhances circuit efficiency and durability for various semiconductor and power electronic applications.

Converts AC input into DC output for reliable power supply. Supports peak repetitive reverse voltage of 50 V for demanding applications. Handles continuous forward current of 35 A and surge current up to 400 A. Universal 3-way push-on, wrap around or solder terminals for versatile mounting.

Glass passivated chip junction ensures low thermal resistance and high reliability. Compact dimensions: 28.8 mm length, 28.8 mm width, and 7.62 mm height. Operates reliably within temperature range of -55°C to 150°C. Designed for industrial, electronic, and power conversion applications.

4-pin single configuration for easy integration in circuits. Explore related semiconductor and Bridge Rectifier products at EnvMart for expanded power management solutions.
