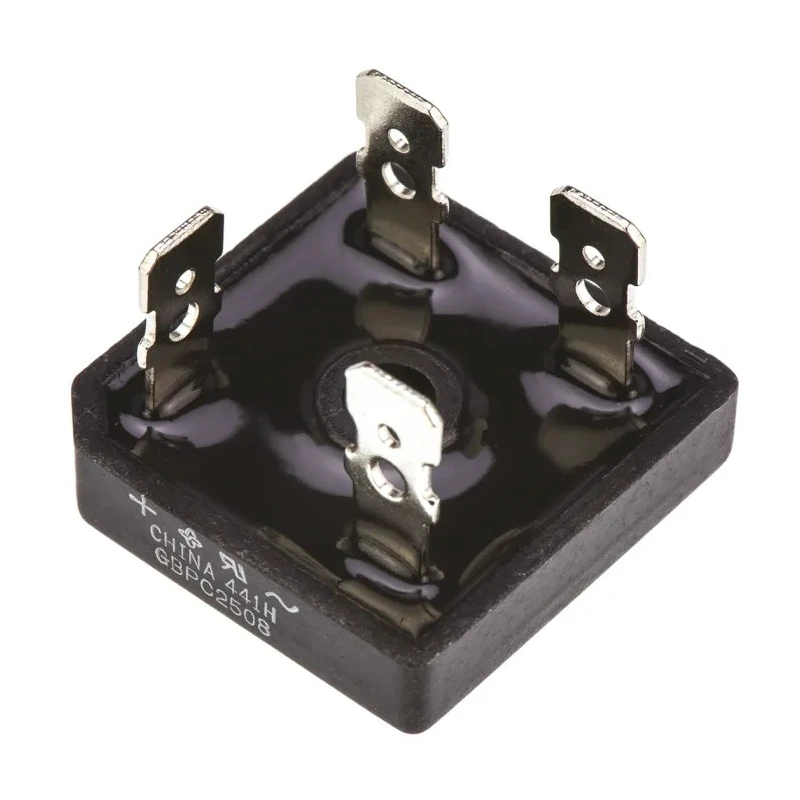

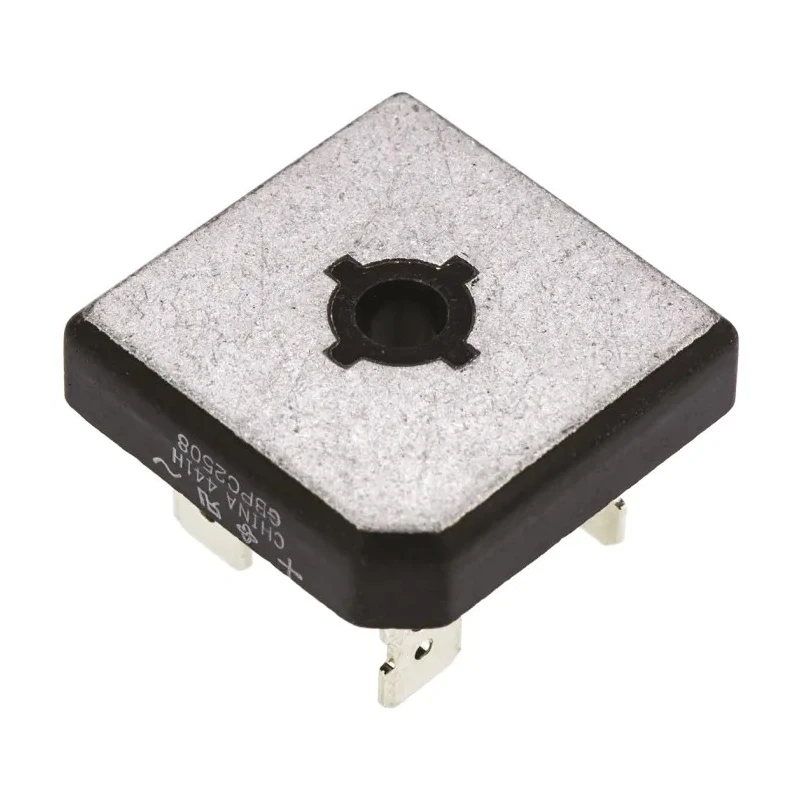

Vishay Bridge Rectifier 800 V 300 A 4-Pin Single GBPC2508-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | GBPC2508-E4/51 |
| Width | 28.8mm |
| Mount Type | Screw |
| Mounting Torque | 20 inches-lbs. max |
| Series | GBPC25 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Case | GBPC, GBPC-W |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Polarity | As marked, positive lead by beveled corner |
| Terminals | Nickel plated on faston lugs or silver plated on |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.1V |
| Universal 3-way terminals | snap-on, wire wrap-around, or PCB mounting |
| Vishay Bridge Rectifier, 25A, 800V, 4-PinBrand | Vishay |
| Vishay Bridge Rectifier, 600 V 300 A, 4-Pin SingleBrand | Vishay |
Key Features
- Peak reverse repetitive voltage rating of 800 V ensures high voltage tolerance.
- Forward current capacity of 25 A supports moderate power loads.
- High surge current capability of 300 A for transient conditions.
- Compact dimensions of 28.8 mm length and width with 7.62 mm height for space-efficient mounting.
- Operates reliably between -55 °C and 150 °C to handle varied thermal environments.
- Mount type uses screw terminals for secure electrical connections.
- Universal 3-way terminals support snap-on, wire wrap-around, or PCB mounting options.
- Nickel plated faston lugs or silver plated wire leads ensure reliable solderable terminals.
Product Description
Vishay GBPC2508-E4/51 Bridge Rectifier is a discrete semiconductor designed for efficient AC to DC full-wave rectification in power supply circuits and electronic equipment. Featuring a peak reverse repetitive voltage (Vrrm) of 800 volts and a forward current rating of 25 amperes, this device supports typical industrial automation, home appliance, and office equipment applications.
The device adopts a compact GBPC package type with dimensions 28.8 mm by 28.8 mm in length and width, and 7.62 mm height, enabling space-efficient mounting. Its mounting method is screw-based, allowing a firm and reliable mechanical and electrical connection.
It provides a high surge current capacity of up to 300 A, ensuring durability under transient power conditions. The diode assembly exhibits a low peak forward voltage of 1.1 V and a peak reverse current of 5 µA, contributing to efficient power conversion and minimal leakage.
Operating temperature range from -55 °C to 150 °C endorses robust thermal stability for industrial environments. The rectifier features universal 3-way terminals supporting snap-on, wire wrap-around, or PCB mounting to fulfill diverse installation needs. Terminals are nickel plated on faston lugs or silver plated on wire leads, guaranteeing high-quality and solder-compatible contacts.
The product is compliant with RoHS and meets commercial grade standards. Its polarity is clearly marked with the positive lead indicated by a beveled corner to prevent installation errors.
Common applications include use in AC/DC power supplies, industrial automation systems, home appliances, and office equipment requiring reliable and durable bridge rectification solutions.
Peak reverse repetitive voltage rating of 800 V. Forward current rating of 25 A and surge current of 300 A. Compact GBPC package dimensions of 28.8 x 28.8 x 7.62 mm. Operating temperature range from -55 °C to 150 °C for harsh environments.
Universal 3-way terminal design accommodates multiple mounting styles. Nickel or silver plated terminals optimized for solderability. Low forward voltage and minimal peak reverse current for efficiency. Polarity clearly marked for correct installation.
Explore more Vishay semiconductor components and Bridge Rectifiers in the Electronics & Electricals category on EnvMart for advanced industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 800 V, ensuring high voltage tolerance for various applications.
This model has a forward current capacity of 25 A, suitable for moderate power loads.
It has a high surge current capability of 300 A, which is designed to handle transient conditions effectively.
The compact dimensions of this bridge rectifier are 28.8 mm in length and width, and 7.62 mm in height.
It operates reliably between -55 °C and 150 °C, making it suitable for varied thermal environments.
The mounting method uses screw terminals, allowing for secure electrical connections.
It features universal 3-way terminals that support snap-on, wire wrap-around, or PCB mounting options.
The peak forward voltage is 1.1 V, contributing to efficient power conversion.
The peak reverse current is rated at 5 µA, which helps minimize leakage during operation.
Yes, it is compliant with RoHS and meets commercial grade standards, ensuring environmental safety.
The polarity is clearly marked, with the positive lead indicated by a beveled corner to prevent installation errors.
